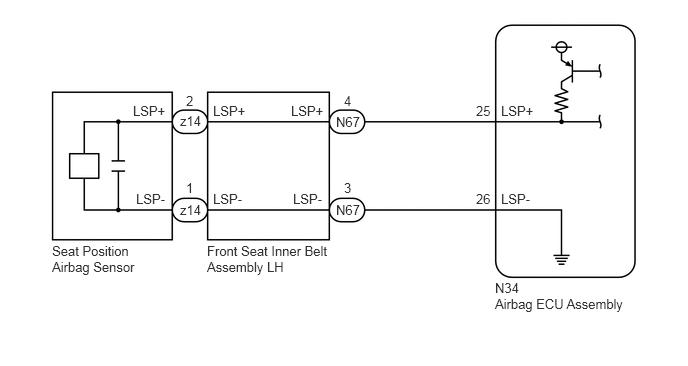

DTC B1653: Driver Side Seat Position Sensor [08/2021 - ]: Wiring Diagram

GTY793504

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
