DTC B1653: Driver Side Seat Position Sensor [06/2018 - 08/2021]: Wiring Diagram

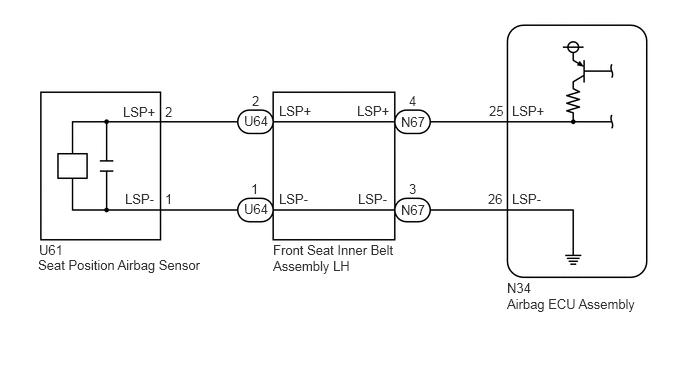

for TMC Made:

GTY806854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for TMMK Made:

GTY793504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
