Removal [06/2018 - 08/2020]: Procedure

  1. REMOVE REAR WHEEL

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 2 FLOOR UNDER COVER (for Gasoline Model)
    1. for LH Side:

      See step  2

  3. REMOVE NO. 1 FLOOR UNDER COVER (for Gasoline Model)
    1. for RH Side:

      See step  3

  4. REMOVE NO. 2 FLOOR UNDER COVER (for HV Model)
    1. for LH Side:
      GTY772646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and clip (A).
      2. Disengage the 2 grommets (B) and clip (C) to remove the No. 2 floor under cover.
  5. REMOVE NO. 1 FLOOR UNDER COVER (for HV Model)
    1. for RH Side:
      GTY758240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and clip (A).
      2. Disengage the 2 grommets (B) to remove the No. 1 floor under cover.
  6. SEPARATE NO. 2 PARKING BRAKE WIRE ASSEMBLY (w/o AVS)
    1. Disengage the 2 clamps.
      GTY744164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and separate the No. 2 parking brake wire assembly from the rear trailing arm assembly.
  7. SEPARATE NO. 2 PARKING BRAKE WIRE ASSEMBLY (w/ AVS)
    1. Disconnect the connector.
      GTY787381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and disengage the clamp.
      GTY787380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp and separate the No. 2 parking brake wire assembly from the rear flexible hose bracket.
      GTY787524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut and separate the No. 2 parking brake wire assembly from the rear trailing arm assembly.
  8. REMOVE REAR STABILIZER LINK ASSEMBLY

    See step  5

  9. REMOVE REAR TRAILING ARM ASSEMBLY
    1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
      NOTE:
      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.
      GTY744892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Transmission Jack

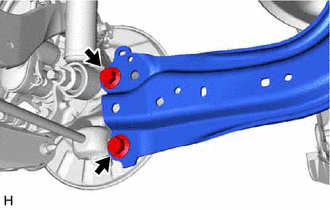

    2. Remove the 2 bolts and separate the rear trailing arm assembly from the rear axle carrier sub-assembly.
      GTY769341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts and rear trailing arm assembly.
      GTY763036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SUSPENSION ARM COVER
    1. Secure the rear trailing arm assembly in a vise using aluminum plates.
      NOTE:

      Do not overtighten the vise.

      GTY763037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and remove the rear suspension arm cover.
      GTY763021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR SUSPENSION ARM BRACKET
    1. Remove the bolt, nut and rear suspension arm bracket from the rear trailing arm assembly.
      GTY763026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
