Installation [09/2022 - ]: Procedure
- INSTALL REAR SUSPENSION ARM BRACKET

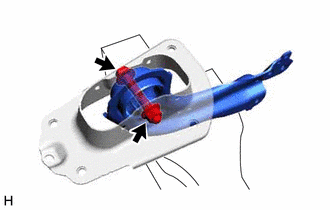

- Temporarily install the rear suspension arm bracket to the rear trailing arm assembly with the bolt and nut.NOTE:
Insert the bolt from the inside of the vehicle.

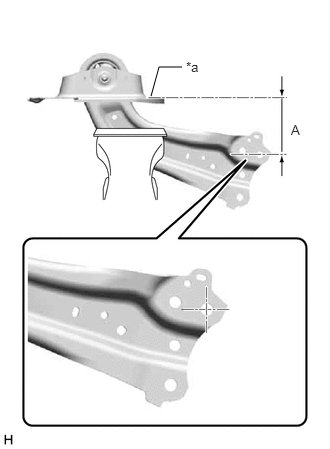

- Position the rear trailing arm assembly as shown in the illustration.
Reference Length (A)
for 2WD 120 mm (4.72 in.) for AWD 128 mm (5.04 in.) *a Upper Surface of Rear Suspension Arm Bracket - Fully tighten the nut.
Torque: 120 N.m (1224 kgf/cm, 89 ft.lbf)
- Temporarily install the rear suspension arm bracket to the rear trailing arm assembly with the bolt and nut.
- INSTALL REAR SUSPENSION ARM COVER
- Engage the 4 claws and install the rear suspension arm cover.
- INSTALL REAR TRAILING ARM ASSEMBLY
- Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.NOTE:
- When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
- Make sure to perform this operation with the vehicle kept as low as possible.

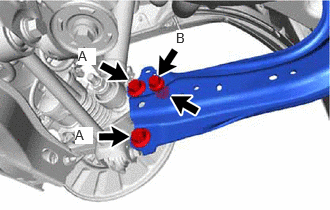

- Install the rear trailing arm assembly to the vehicle with the 4 bolts.
Torque: 90 N.m (918 kgf/cm, 66 ft.lbf)
- for 2WD:
- Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 2 bolts.
Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)
- Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 2 bolts.
- for AWD:
- Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
- INSTALL NO. 2 PARKING BRAKE WIRE ASSEMBLY (w/o AVS)
- INSTALL NO. 2 PARKING BRAKE WIRE ASSEMBLY (w/ AVS)

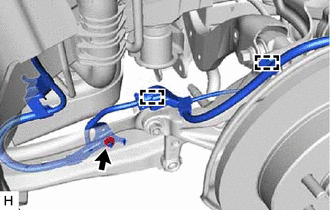

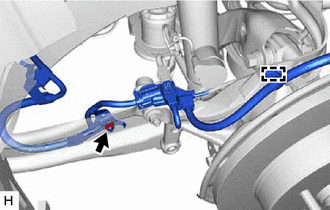

- Install the No. 2 parking brake wire assembly to the rear trailing arm assembly with the nut.
Torque: 15.5 N.m (158 kgf/cm, 11 ft.lbf)
- Engage the clamp.
- Engage the guide and install the wire harness bracket.

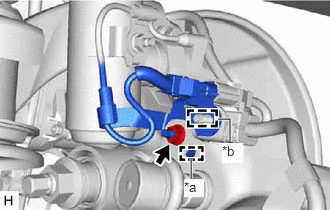

*a Guide *b Clamp - Install the nut.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
- Engage the clamp and install the No. 2 parking brake wire assembly to the wire harness bracket.

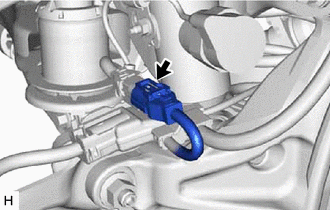

- Connect the connector.
- Install the No. 2 parking brake wire assembly to the rear trailing arm assembly with the nut.
- INSTALL REAR STABILIZER LINK ASSEMBLY (for 2WD)
See step 5

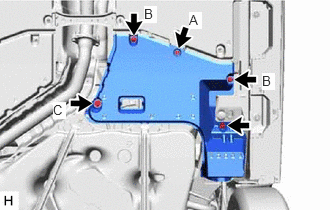

- INSTALL NO. 1 FLOOR UNDER COVER (for Gasoline Model AWD)
- INSTALL NO. 2 FLOOR UNDER COVER (for Gasoline Model AWD)
- INSTALL NO. 1 FLOOR UNDER COVER (for HV Model)
- INSTALL NO. 2 FLOOR UNDER COVER (for HV Model)

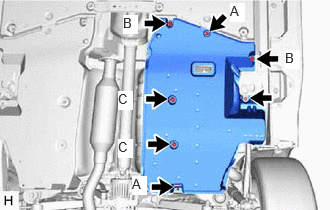

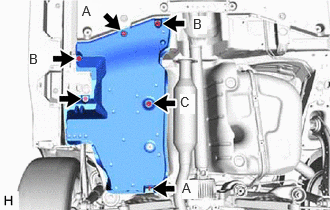

- INSTALL NO. 1 FLOOR UNDER COVER (for Gasoline Model 2WD)
- for RH Side:
See step 8
- for RH Side:

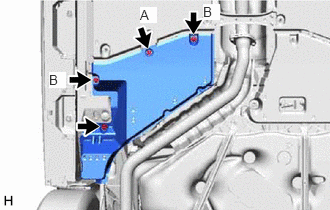

- INSTALL NO. 2 FLOOR UNDER COVER (for Gasoline Model 2WD)
- for LH Side:
See step 9
- for LH Side:
- INSTALL REAR WHEEL
Refer to PROCEDURE - Step 1
- INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Refer to ADJUSTMENT [08/2021 - ]
- PERFORM INITIALIZATION FOR HV MODEL:
Parking Assist Monitor System Refer to CALIBRATION [09/2022 - ] Panoramic View Monitor System Refer to CALIBRATION [09/2022 - ] Lighting System*1 Refer to INITIALIZATION [08/2021 - ] *1: for LED type turn signal light
FOR GASOLINE MODEL:Parking Assist Monitor System Refer to CALIBRATION [09/2022 - ] Panoramic View Monitor System Refer to CALIBRATION [09/2022 - ] Lighting System*1 Refer to INITIALIZATION [08/2021 - ] *1: for LED type turn signal light
