Installation [06/2018 - 08/2020]: Procedure

1. Install the steering gear heat insulator to the rack and pinion power steering gear assembly with the 2 bolts in the order shown in the illustration.

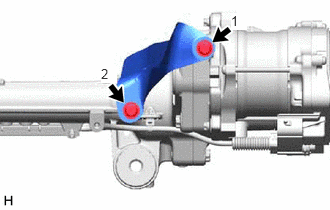

   Fig 1: Steering Gear Heat Insulator Bolts Tightening Sequence (06/2018 - 08/2020) (for 2GR-FKS)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

1. Install the lock nut and tie rod assembly LH to the rack and pinion power steering gear assembly until the matchmarks are aligned.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   HINT:

   After adjusting the toe-in, tighten the lock nut.

HINT:

Perform the same procedure as for the LH side.

1. Install the rack and pinion power steering gear assembly to the front frame assembly with the 4 bolts and 4 new nuts.

   Torque: 88 N.m (897 kgf/cm, 65 ft.lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

1. Install the front stabilizer bar with the 2 front stabilizer links, front No. 1 stabilizer bracket LH, front No. 1 stabilizer bracket RH and 2 front No. 1 stabilizer bar bushings to the front frame assembly.

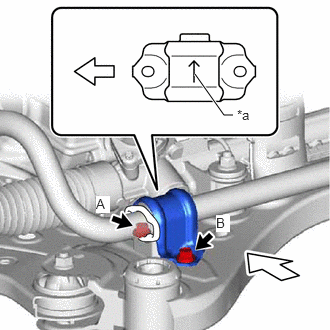

2. Install the front No. 1 stabilizer bracket LH to the front frame assembly with the 2 bolts.

   Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Arrow
   	Front of the Vehicle

   NOTE:

   • Make sure to install the front No. 1 stabilizer bracket LH with its arrow facing the inside of the vehicle.
   • Temporarily tighten the bolt (A) and (B), and then fully tighten the 2 bolts in the order of (A) and (B).
3. Install the front No. 1 stabilizer bracket RH to the front frame assembly with the 2 bolts.

   HINT:

   Perform the same procedure as for the LH side.

Refer to PROCEDURE - Step 15

Refer to PROCEDURE - Step 61 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 61 [10/2019 - 08/2021]

1. Install the wire harness to the rack and pinion power steering gear assembly with the 2 bolts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Connect the wire harness connector to the rack and pinion power steering gear assembly.

   HINT:

   Make sure that the connector is fully inserted before rotating the lock lever to engage the lock.

1. Install the steering gear heat insulator to the rack and pinion power steering gear assembly with the 2 bolts in the order shown in the illustration.
   Fig 2: Steering Gear Heat Insulator Bolts Tightening Sequence (06/2018 - 08/2020) (For A25A-FXS)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

for A25A-FXS: Refer to PROCEDURE - Step 19

for 2GR-FKS: Refer to PROCEDURE - Step 21

1. Connect the tie rod assembly LH to the steering knuckle LH with the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

   NOTE:

   • Do not damage the ball joint dust cover.
   • Further tighten the nut up to 60° if the holes for the cotter pin are not aligned.
2. Install a new cotter pin.

HINT:

Perform the same procedure as for the LH side.

1. Align the matchmarks on the steering intermediate shaft assembly and rack and pinion power steering gear assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Connect the steering intermediate shaft assembly to the rack and pinion power steering gear assembly.
3. Install a bolt.

   Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

Refer to PROCEDURE - Step 42

Refer to PROCEDURE - Step 68

Refer to PROCEDURE - Step 69

for A25A-FXS: Refer to PROCEDURE - Step 43

for 2GR-FKS: Refer to PROCEDURE - Step 70

for A25A-FXS: Refer to PROCEDURE - Step 44

for 2GR-FKS: Refer to PROCEDURE - Step 71

for A25A-FXS: Refer to PROCEDURE - Step 45

for 2GR-FKS: Refer to PROCEDURE - Step 72

Refer to PROCEDURE - Step 1

for HV Model: Refer to CALIBRATION [06/2018 - ]

for Gasoline Model: Refer to CALIBRATION [06/2018 - ]
