Installation [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL GENERATOR ASSEMBLY
1. Install the generator assembly with the 2 bolts.
  Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)
2. Install the generator assembly bracket with the 2 bolts in the order shown in the illustration.
  Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

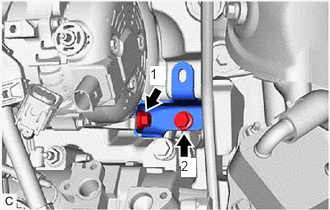

  Fig 1: Generator Assembly Bracket Bolt Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the wire harness clamp bracket with the 2 bolts.
  Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
4. Engage the 3 wire harness clamps.
5. Connect the camshaft timing oil control solenoid assembly connector.
6. Connect the compressor assembly with magnetic clutch connector.
7. Connect the generator assembly connector.
8. Connect the wire harness to terminal B with the nut.
  Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
9. Close the terminal cap.
INSTALL V-RIBBED BELT
Refer to INSTALLATION [06/2018 - ]
INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 47
INSTALL RADIATOR ASSEMBLY
Refer to INSTALLATION [06/2018 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [06/2018 - 10/2019] , or refer to INITIALIZATION [10/2019 - 08/2020] , or refer to INITIALIZATION [08/2020 - 08/2021] , or refer to INITIALIZATION [08/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - ]
