Installation [08/2020 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL TIMING CHAIN COVER OIL SEAL
- Apply MP grease to the lip of a new timing chain cover oil seal.NOTE:
- Keep the lip free from foreign matter.
- Do not allow MP grease to contact the dust seal.

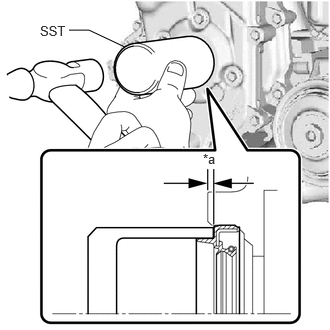

- Using SST and a hammer, tap in the timing chain cover oil seal.
- SST: 09223-00010
*a 0 to 2 mm Standard Depth
0 to 2 mm (0 to 0.0787 in.) (From the edge of the No. 2 timing chain cover assembly)
NOTE:Do not tap in the timing chain cover oil seal at an angle.
- Apply MP grease to the lip of a new timing chain cover oil seal.
- INSTALL CRANKSHAFT PULLEY ASSEMBLY
Refer to PROCEDURE - Step 49 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 49 [08/2021 - ]
- INSTALL V-RIBBED BELT
Refer to PROCEDURE - Step 1
- INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
Refer to INSTALLATION [08/2020 - 08/2021] , or refer to INSTALLATION [08/2021 - ]
