Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

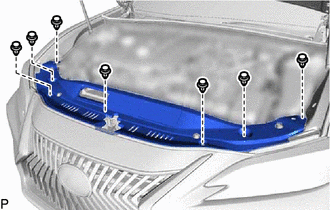

    1. Remove the 7 clips.
      GTY807006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

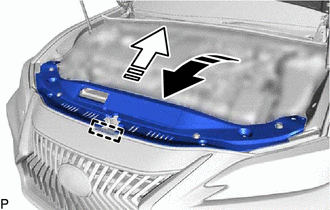

    2. Disengage the guide and remove the cool air intake duct seal as shown in the illustration.
      GTY780530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  2. REMOVE FRONT BUMPER ASSEMBLY

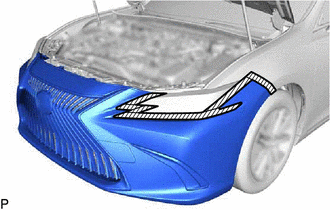

    1. Apply protective tape around the front bumper assembly as shown in the illustration.
      GTY835617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

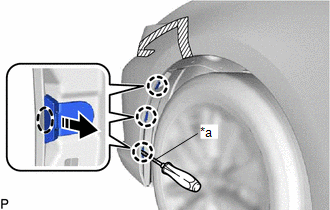

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws as shown in the illustration.
      GTY819788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert Screwdriver Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

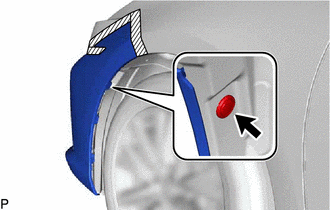

    3. Remove the clip.
      GTY807013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

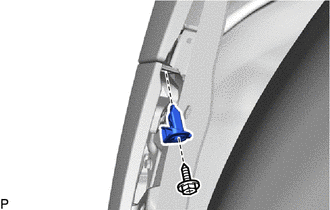

    4. Remove the screw and front bumper side mounting bracket.
      GTY834258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

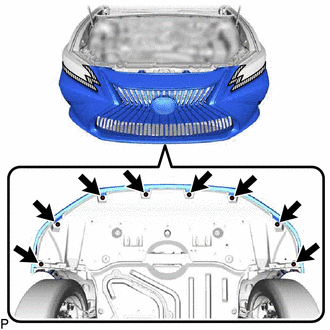

    5. Remove the 8 screws.
      GTY807022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

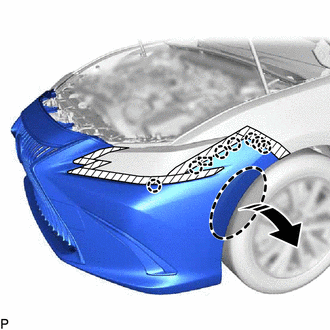

    6. Disengage the 7 claws and guide as shown in the illustration.
      GTY784718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

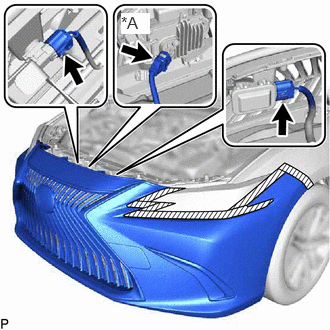

    7. Disconnect the 2 connectors.
      GTY779532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Pre-collision System
    8. w/ Pre-collision System:
      1. Disconnect the connector.

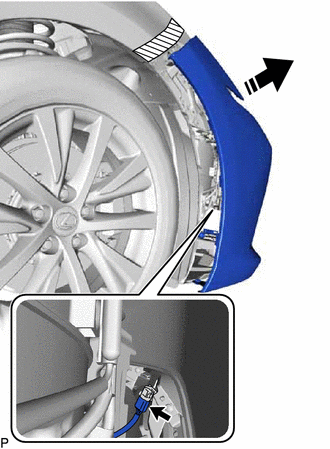

    9. Pull back the side of the front bumper assembly and disconnect the connector.
      GTY824004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      Do not apply excessive force when pulling back the front bumper assembly.

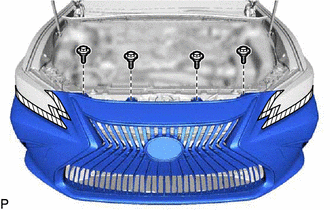

    10. Remove the 4 bolts.
      GTY807021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

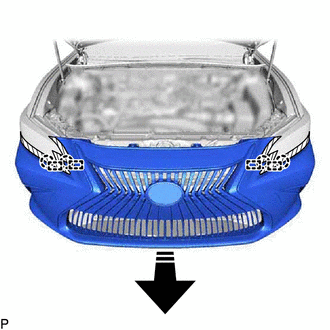

    11. Disengage the 4 claws and 4 guides to remove the front bumper assembly as shown in the illustration.
      GTY799562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
