System Diagram [06/2018 - 08/2021]

HINT:

Refer to System Diagram of CAN Communication System.

Refer to SYSTEM DIAGRAM [06/2018 - 08/2020] , or refer to SYSTEM DIAGRAM [08/2020 - 08/2021]

COMBINATION METER ASSEMBLY DIAGRAM

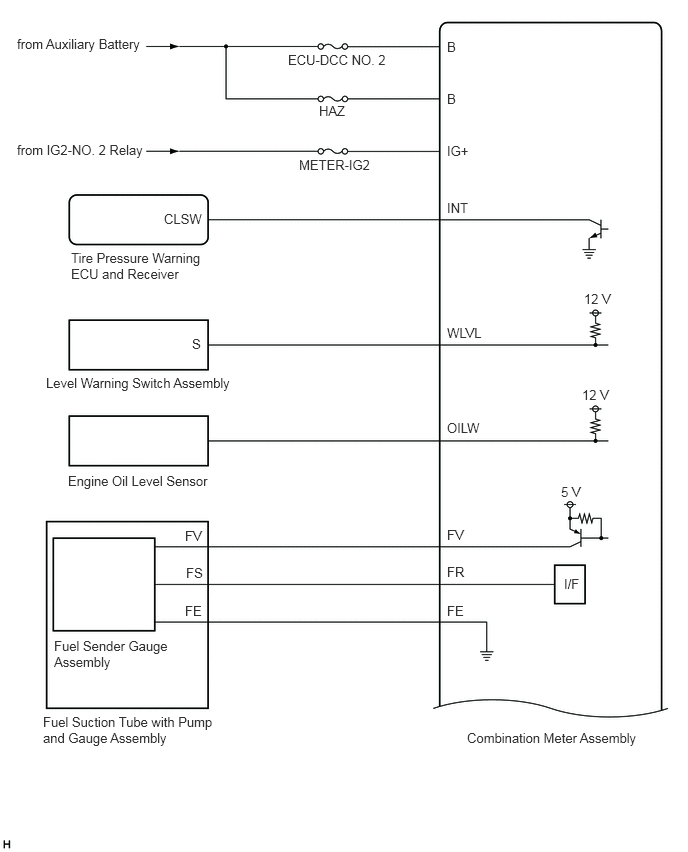

Fig 1: Combination Meter Assembly Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

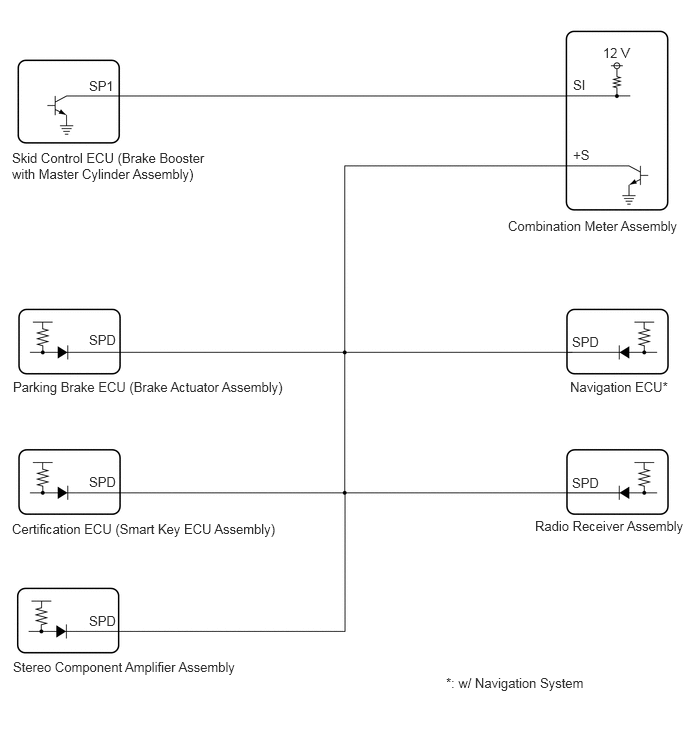

Fig 2: Combination Meter Assembly Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

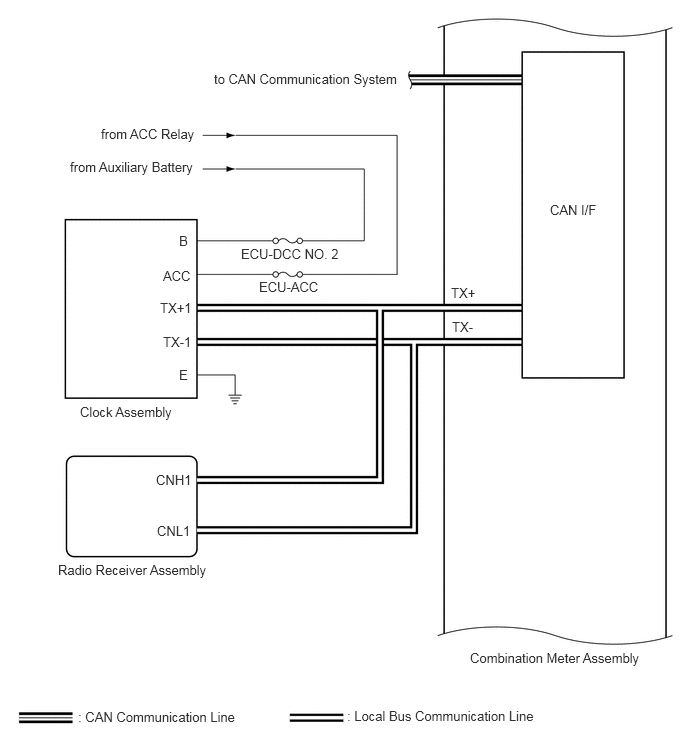

Fig 3: Combination Meter Assembly Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

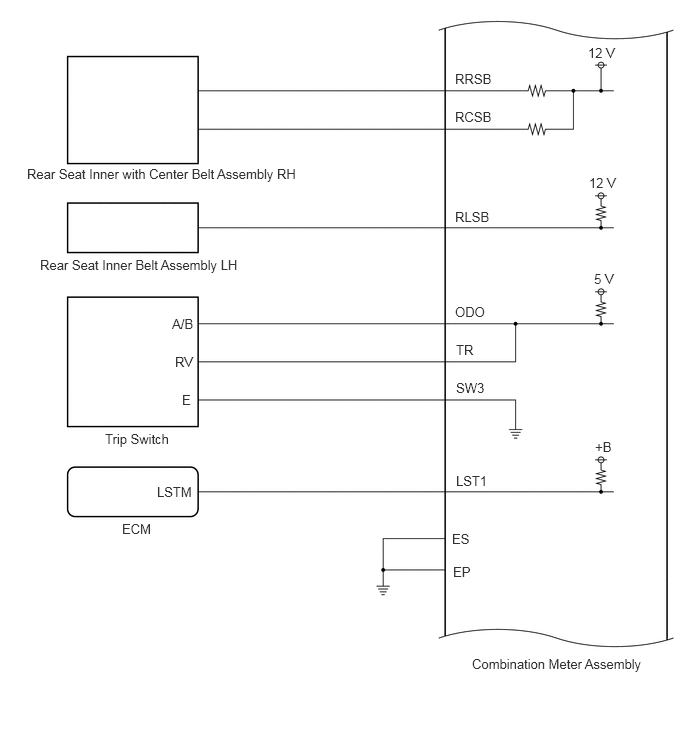

Fig 4: Combination Meter Assembly Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TURN SIGNAL LIGHT DIAGRAM
1. LH SIDE
  1. for TMC Made

    Fig 5: Turn Signal Light wiring Diagram (LH Side) - (1 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Fig 6: Turn Signal Light wiring Diagram (LH Side) - (2 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for TMMK Made

    Fig 7: Turn Signal Light Wiring Diagram (LH Side) - TMMK Made (1 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Fig 8: Turn Signal Light Wiring Diagram (LH Side) - TMMK Made (2 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. RH SIDE
  1. for TMC Made

    Fig 9: Turn Signal Light Wiring Diagram (RH Side) - TMC Made (1 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Fig 10: Turn Signal Light Wiring Diagram (RH Side) - TMC Made (2 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for TMMK Made

    Fig 11: Turn Signal Light Wiring Diagram (RH Side) - TMMK Made (1 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Fig 12: Turn Signal Light Wiring Diagram (RH Side) - TMMK Made (2 Of 2)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ILLUMINATION DIAGRAM

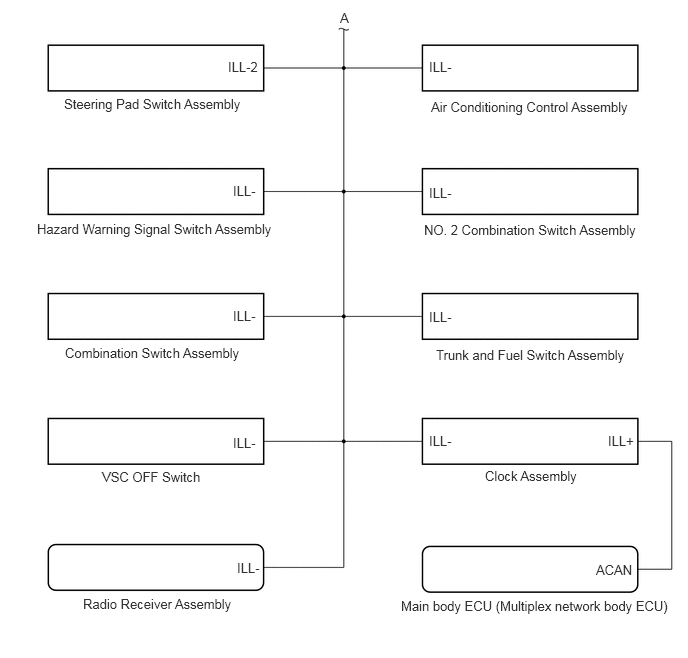

Fig 13: Illumination Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Illumination Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
