Removal [09/2022 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

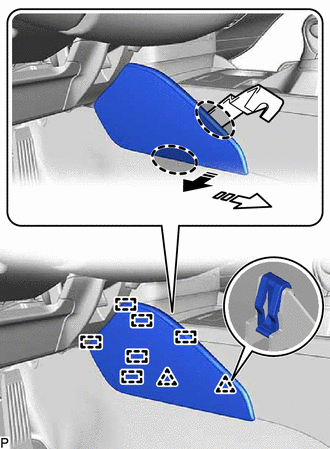

    1. Using a moulding remover, pull the instrument panel finish panel end LH in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 clips.
      GTY1136527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the instrument panel finish panel end LH in the direction indicated by the arrow (2) shown in the illustration to disengage the 6 guides and remove it.
  2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

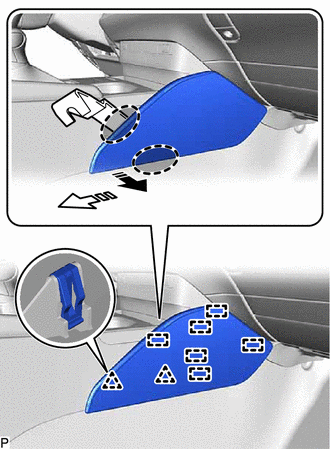

    1. Using a moulding remover, pull the instrument panel finish panel end RH in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 clips.
      GTY1136815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the instrument panel finish panel end RH in the direction indicated by the arrow (2) shown in the illustration to disengage the 6 guides and remove it.
  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

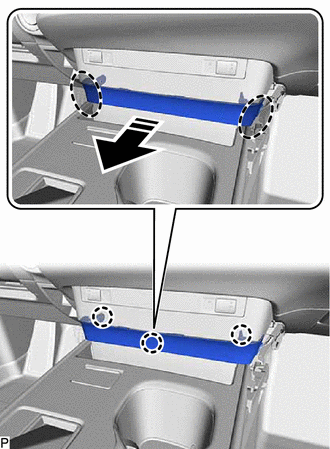

    1. Disengage the 3 claws as shown in the illustration to remove the center instrument cluster finish panel sub-assembly.
      GTY1137915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
  4. REMOVE FRONT CONSOLE BOX COVER

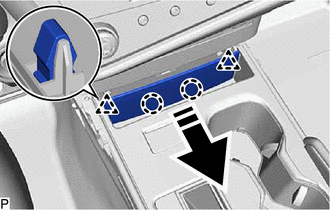

    1. Disengage the 2 claws and 2 clips as shown in the illustration to remove the front console box cover.
      GTY1136612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    for UA80E: Refer to PROCEDURE - Step 1

    for UB80F: Refer to PROCEDURE - Step 1

    for P710: Refer to PROCEDURE - Step 1

  6. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Open the console compartment door sub-assembly toward the driver seat side.

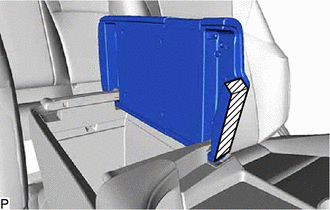

    2. Apply protective tape to the area shown in the illustration.
      GTY1124258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

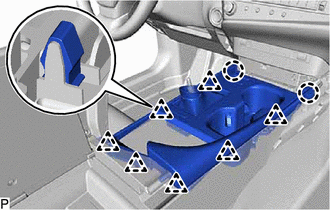

    3. Disengage the 2 claws and 7 clips.
      GTY1136707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

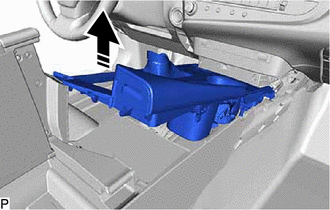

    4. Lift the rear side of the rear upper console panel sub-assembly as shown in the illustration.
      NOTE:

      Do not damage the rear upper console panel sub-assembly and console compartment door sub-assembly.

      GTY1122648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Disconnect each connector to remove the rear upper console panel sub-assembly.
    6. Remove the protective tape.
  7. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

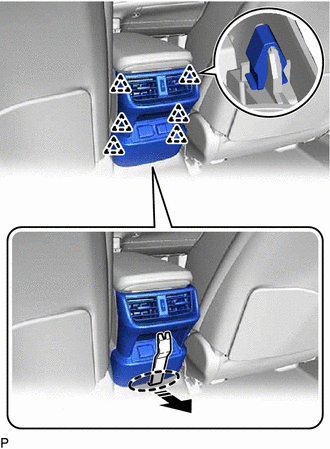

    1. Using a moulding remover, disengage the 6 clips as shown in the illustration.
      GTY1135671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
      Remove in this Direction
    2. Disconnect each connector to remove the console rear end panel sub-assembly.
  8. REMOVE CONSOLE BOX CARPET

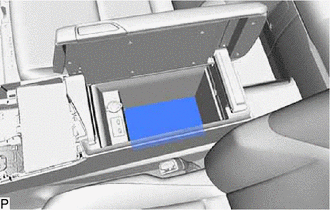

    1. Remove the console box carpet.
      GTY1136711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR CONSOLE BOX ASSEMBLY

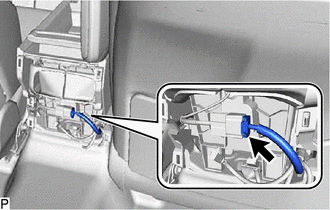

    1. Disconnect the connector.
      GTY1136712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

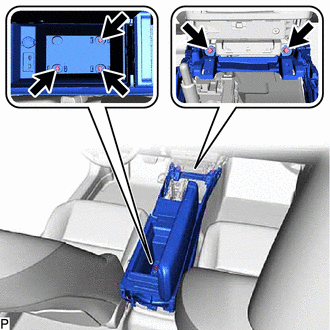

    2. Remove the 5 bolts.
      GTY1135214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

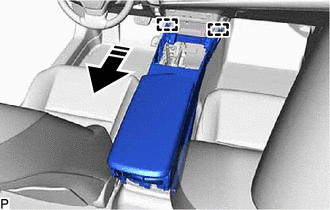

    3. Disengage the 2 guides as shown in the illustration to remove the rear console box assembly.
      GTY1136084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  10. REMOVE BOX BOTTOM MAT

    HINT:

    Perform this procedure only when replacement of the box bottom mat.

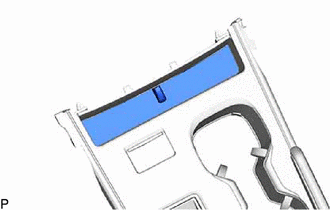

    1. Remove the box bottom mat.
      GTY1135209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE CONSOLE BOX CUP HOLDER SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the console box cup holder sub-assembly.

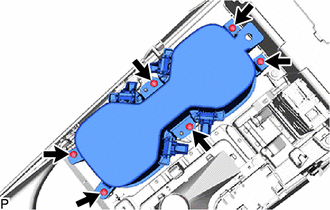

    1. Remove the 6 screws and console box cup holder sub-assembly.
      GTY1128645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
