Removal [08/2020 - 09/2022]: Procedure

PRECAUTION (for HV Model)
NOTE:
- When replacing the radio receiver assembly or navigation ECU, always replace it with a new one. If a radio receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
  - A communication malfunction DTC may be stored.
  - The radio receiver assembly or navigation ECU may not operate normally.
- After replacing the navigation ECU, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the radio receiver assembly.
- When performing the following work, the navigation system may restart when turning the power switch on (ACC) (due to radio receiver assembly and navigation ECU certification).
  - Repair or replace the negative (-) auxiliary battery terminal due to it being disconnected or depleted.
  - The radio receiver assembly or navigation ECU replacement or removal and installation.
Refer to PRECAUTION [06/2018 - 08/2021] , or refer to PRECAUTION [08/2021 - 09/2022]
PRECAUTION (for Gasoline Model)
NOTE:
- When replacing the radio receiver assembly or navigation ECU, always replace it with a new one. If a radio receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
  - A communication malfunction DTC may be stored.
  - The radio receiver assembly or navigation ECU may not operate normally.
- After replacing the navigation ECU, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the radio receiver assembly.
- When performing the following work, the navigation system may restart when turning the engine switch on (ACC) (due to radio receiver assembly and navigation ECU certification).
  - Repair or replace the negative (-) battery terminal due to it being disconnected or depleted.
  - The radio receiver assembly or navigation ECU replacement or removal and installation.
Refer to PRECAUTION [06/2018 - 08/2021] , or refer to PRECAUTION [08/2021 - 09/2022]
REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 1
REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 2
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
for UA80E:

Refer to PROCEDURE - Step 1

for P710:

Refer to PROCEDURE - Step 1

for UB80F:

Refer to PROCEDURE - Step 1
REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
REMOVE LOWER INSTRUMENT PANEL
Refer to PROCEDURE - Step 18 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 17 [08/2021 - 09/2022]
REMOVE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 4 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - 09/2022]
REMOVE COWL SIDE TRIM BOARD RH
HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 5 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - 09/2022]
REMOVE FRONT DOOR OPENING TRIM COVER RH
HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 6 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - 09/2022]
REMOVE INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 23 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 22 [08/2021 - 09/2022]
REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 24 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 23 [08/2021 - 09/2022]
REMOVE LOWER INSTRUMENT PANEL LH
Refer to PROCEDURE - Step 26 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 25 [08/2021 - 09/2022]
REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 27 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 26 [08/2021 - 09/2022]

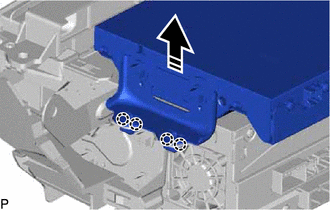

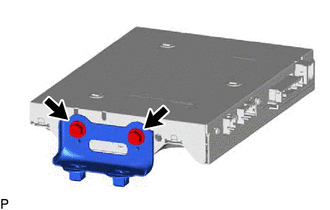

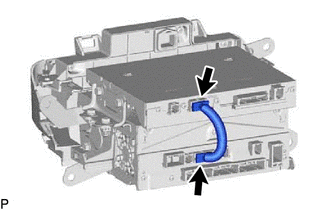

REMOVE RADIO RECEIVER ASSEMBLY WITH SWITCH
Refer to PROCEDURE - Step 17
