Removal [08/2020 - 09/2022]: Procedure

  1. PRECAUTION

    for HV Model: Refer to PRECAUTION [10/2019 - 08/2021] , or refer to PRECAUTION [08/2021 - 09/2022]

    for Gasoline Model: Refer to PRECAUTION [10/2019 - 08/2021] , or refer to PRECAUTION [08/2021 - 09/2022]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 1

  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 2

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    for UA80E:

    Refer to PROCEDURE - Step 1

    for P710:

    Refer to PROCEDURE - Step 1

    for UB80F:

    Refer to PROCEDURE - Step 1

  6. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  7. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  8. REMOVE LOWER INSTRUMENT PANEL

    Refer to PROCEDURE - Step 18 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 17 [08/2021 - 09/2022]

  9. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 4 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - 09/2022]

  10. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 5 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - 09/2022]

  11. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 6 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - 09/2022]

  12. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 23 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 22 [08/2021 - 09/2022]

  13. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 23 [08/2021 - 09/2022]

  14. REMOVE LOWER INSTRUMENT PANEL LH

    Refer to PROCEDURE - Step 26 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 25 [08/2021 - 09/2022]

  15. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 26 [08/2021 - 09/2022]

  16. REMOVE RADIO RECEIVER ASSEMBLY WITH SWITCH

    Refer to PROCEDURE - Step 17

  17. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

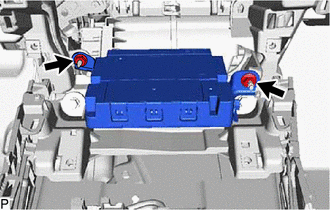

    1. Remove the 2 nuts.
      GTY962806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the DCM (telematics transceiver) with bracket.
  18. REMOVE TELEPHONE BRACKET
    1. GTY962808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the screw and telephone bracket.

  19. REMOVE NO. 1 TELEPHONE BRACKET
    1. GTY962802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the screw and No. 1 telephone bracket.

  20. REMOVE DCM (TELEMATICS TRANSCEIVER)
