Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 4

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 5

  3. REMOVE FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 6

  4. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 14

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  7. REMOVE NO. 1 INSTRUMENT CLUSTER MOULDING

    Refer to PROCEDURE - Step 17

  8. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 23

  12. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

  13. REMOVE NO. 2 INSTRUMENT CLUSTER MOULDING

    Refer to PROCEDURE - Step 30

  14. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Headup Display)

    Refer to PROCEDURE - Step 31

  15. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/ Headup Display)

    Refer to PROCEDURE - Step 32

  16. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33

  17. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 37

  18. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    See step  19

  19. REMOVE TRIP SWITCH

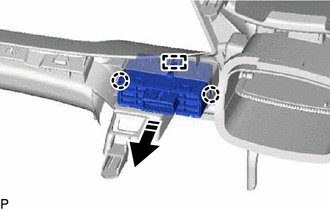

    1. Disengage the 2 claws and guide as shown in the illustration to remove the trip switch.
      GTY780921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
