Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2021]

  2. REMOVE METER MIRROR SUB-ASSEMBLY

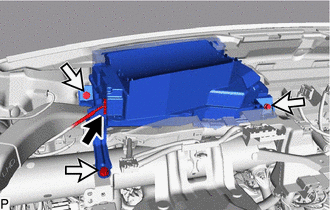

    1. Disconnect the connector.
      GTY837614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Bolt
    2. Remove the 3 bolts.

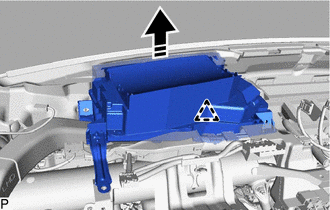

    3. Disengage the clip as shown in the illustration to remove the meter mirror sub-assembly.
      GTY815234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
