Installation [06/2018 - ]: Procedure

  1. INSTALL METER MIRROR SUB-ASSEMBLY
    1. Engage the clip as shown in the illustration.

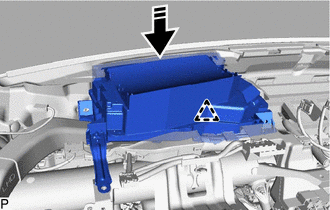

      GTY781235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the meter mirror sub-assembly with the 3 bolts.
    3. Connect the connector.
  2. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [06/2018 - 08/2021] , or refer to INSTALLATION [08/2021 - ]
