Installation [08/2021 - ]: Procedure

INSTALL HEADUP DISPLAY SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY)

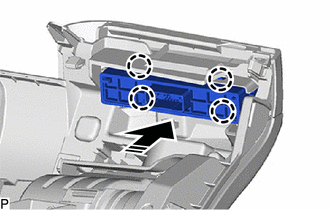

Engage the 4 claws to install the headup display switch (No. 2 combination switch assembly) as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 43
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 44
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 45
INSTALL FRONT DOOR OPENING TRIM COVER LH
Refer to PROCEDURE - Step 31
INSTALL COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 32
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 33
