UX 200 Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Meter / Gauge / Display (Service Information)
>>
HEADUP Display
>>
Components [10/2018 - ]
Components [10/2018 - ]

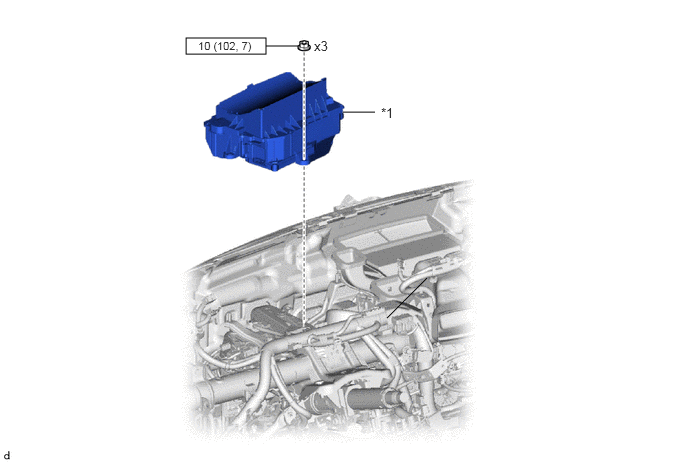

Fig 1: Headup Display Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
METER MIRROR SUB-ASSEMBLY
-
-
N.m (kgf/cm, ft.lbf): Specified torque
-
-

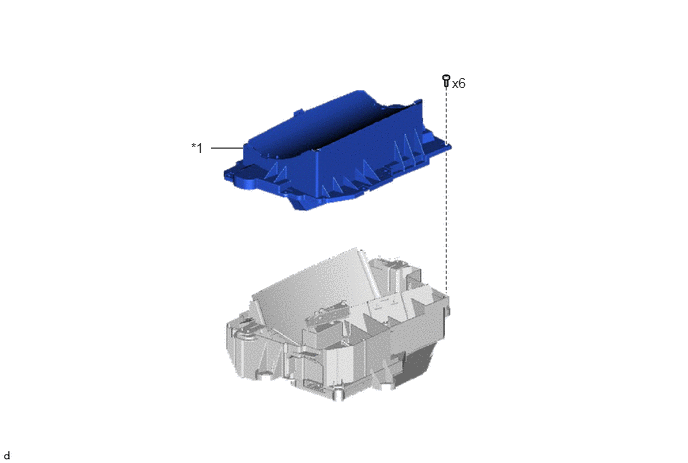

Fig 2: Headup Display Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 COMBINATION METER MIRROR PLATE
-
-
