Installation [10/2018 - 07/2022]: Procedure

  1. INSTALL CLOCK ASSEMBLY
    NOTE:

    When installing the clock assembly, make sure that no dust, etc., enters the inside of the multi-display.

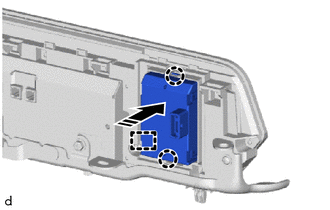

    1. Engage the guide and claws to install the clock assembly as shown in the illustration.
      GTY836154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL MULTI-DISPLAY

    Refer to INSTALLATION [10/2018 - 07/2022]
