Inspection [10/2018 - 07/2022]: Procedure

  1. INSPECT CLOCK ASSEMBLY
    1. Check illumination.
      1. Apply auxiliary battery voltage to the clock assembly and check that it illuminates.

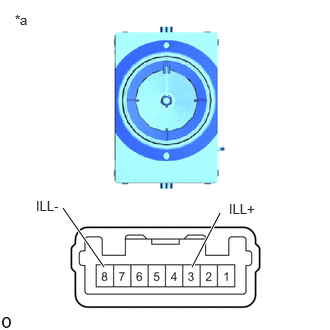

        Fig 1: Clock Assembly Connector End View
        GTY808117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Clock Assembly)

        OK

        Tester Connection Specified Condition
        Auxiliary battery positive (+) → 3 (ILL+)
        Auxiliary battery positive (-) → 8 (ILL-)        		 Illuminates

        If the result is not as specified, replace the clock assembly.
