System Diagram [07/2022 - ]

HINT:

Refer to System Diagram of CAN Communication System.

Refer to SYSTEM DIAGRAM [07/2022 - ]

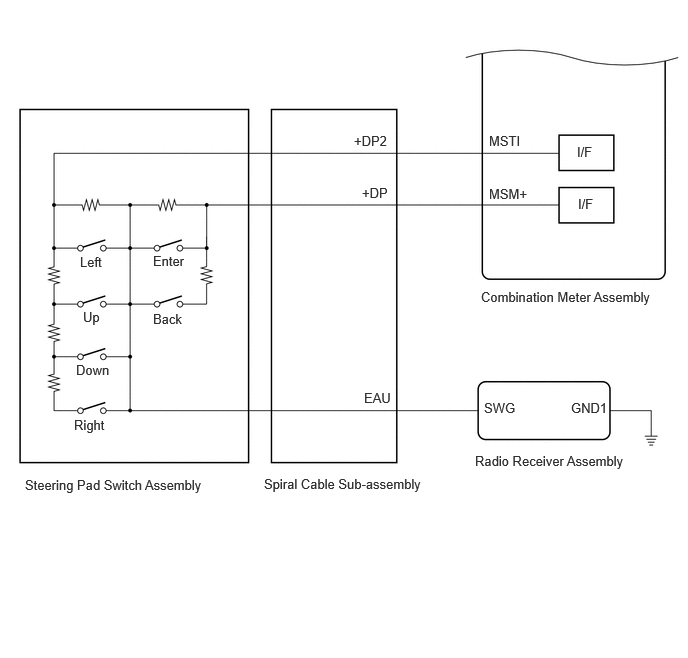

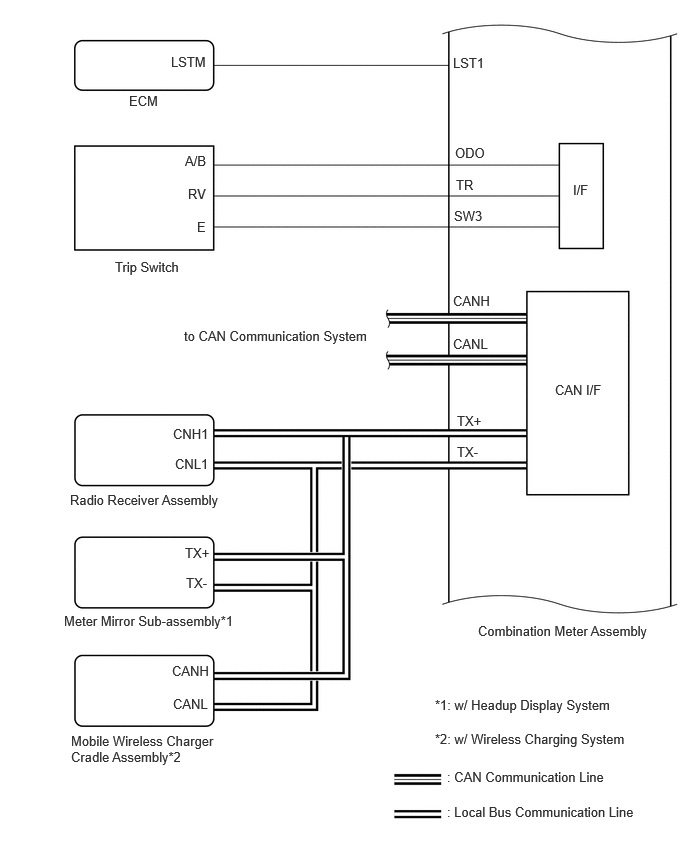

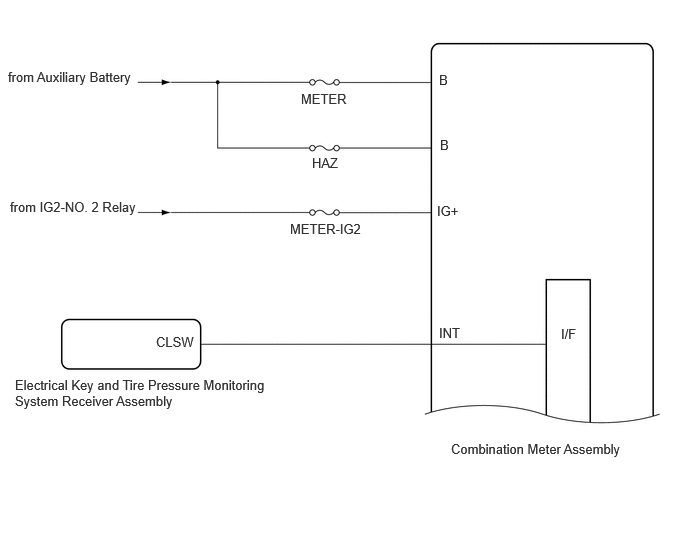

1. COMBINATION METER ASSEMBLY DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. TURN SIGNAL LIGHT DIAGRAM
   1. LH SIDE

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. RH SIDE

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

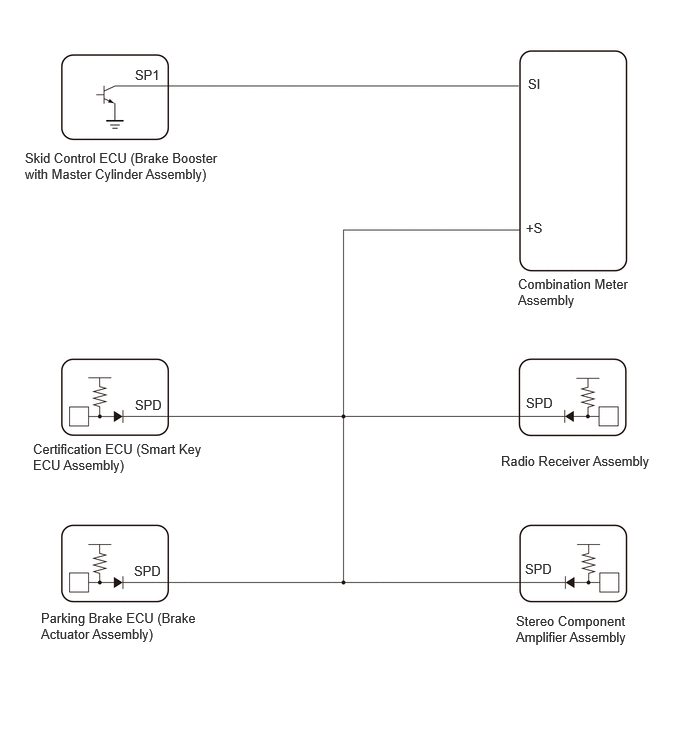

3. SPEED SIGNAL DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
