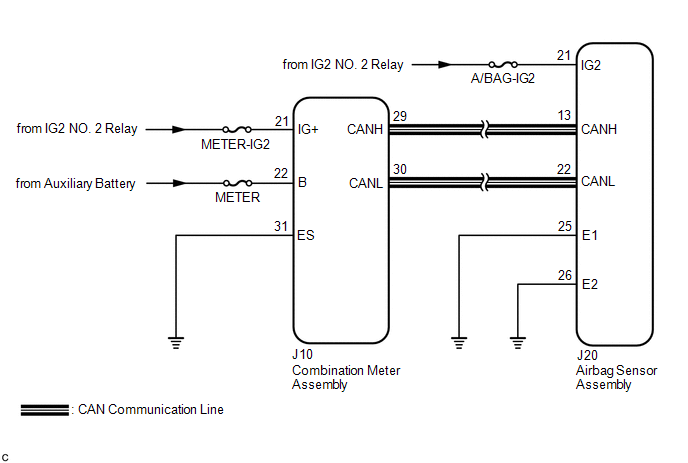

SRS Warning Light does not Come ON [10/2015 - 03/2018]: Wiring Diagram

GTY632998

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
