Caution / Notice / Hint
NOTE:
- After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [08/2019 - ]

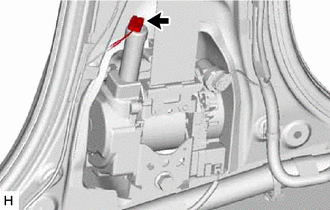

- 2 identical squib connectors are connected to the front seat outer belt assembly RH. The front pretensioner squib RH connector is indicated by the arrow in the illustration.
HINT:
- Perform the simulation method by selecting check mode (Signal Check) using the Techstream.
Refer to CHECK MODE PROCEDURE [08/2019 - ]
- After selecting check mode (Signal Check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on a city road or rough road.
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2019 - 07/2020] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [07/2020 - ]
