DTC B1855-63: Short in Rear Side Squib LH Circuit; DTC B1856-63: Open in Rear Side Squib LH Circuit; DTC B1857-63: Short to GND in Rear Side Squib LH Circuit; DTC B1858-63: Short to B+ in Rear Side Squib LH Circuit [10/2015 - 03/2018]: Procedure
- CHECK CONNECTORS
- Turn the power switch off.
*1 Rear Seat Airbag Assembly LH *2 Airbag Sensor Assembly *3 No. 2 Floor Wire - Disconnect the cable from the negative (-) auxiliary battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- Check that the connectors are properly connected to the rear seat airbag assembly LH and airbag sensor assembly.
OK
The connectors are properly connected.
HINT:
If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.
- Disconnect the connectors from the rear seat airbag assembly LH and airbag sensor assembly.
- Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals are not deformed or damaged.
- Check that the short springs of the activation prevention mechanism of the No. 2 floor wire connector are not deformed or damaged.
OK
The short springs are not deformed or damaged.
Result
Proceed to OK NG
Result:
NG
REPLACE NO. 2 FLOOR WIRE
Result:
OK
See step 2
- Turn the power switch off.
- CHECK REAR SEAT AIRBAG ASSEMBLY LH
- Connect the connector to the airbag sensor assembly.

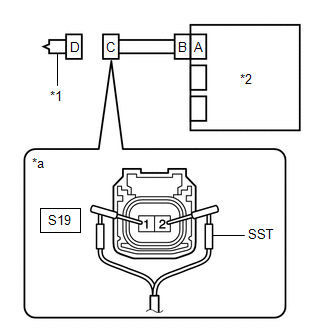

*1 Rear Seat Airbag Assembly LH *2 Airbag Sensor Assembly *a Front view of wire harness connector
(to Rear Seat Airbag Assembly LH) - Connect SST (resistance 2.1 Ω) to connector C.WARNING:
Never connect a tester to the rear seat airbag assembly LH for measurement, as this may lead to a serious injury due to airbag deployment.
NOTE:- Do not forcibly insert SST into the terminals of the connector when connecting it.
- Insert SST straight into the terminals of the connector.
- SST: 09843-18061
- Connect the cable to the negative (-) auxiliary battery terminal.
- Clear the DTCs stored in memory.
Refer to DTC CHECK / CLEAR [10/2015 - 08/2019]
Body Electrical > SRS Airbag > Clear DTCs
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [10/2015 - 08/2019]
Body Electrical > SRS Airbag > Trouble Codes
OK
DTC B1855-63, B1856-63, B1857-63 or B1858-63 is not output.
HINT:
Codes other than DTCs B1855-63, B1856-63, B1857-63 and B1858-63 may be output at this time, but they are not related to this check.
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- Disconnect SST from connector C.
Result
Proceed to OK NG
Result:
OK
REPLACE REAR SEAT AIRBAG ASSEMBLY LH. Refer to REMOVAL [10/2015 - 08/2016] , or refer to REMOVAL [08/2016 - 08/2019]
Result:
NG
See step 3
- Connect the connector to the airbag sensor assembly.
- CHECK NO. 2 FLOOR WIRE
- Disconnect the No. 2 floor wire from the airbag sensor assembly.

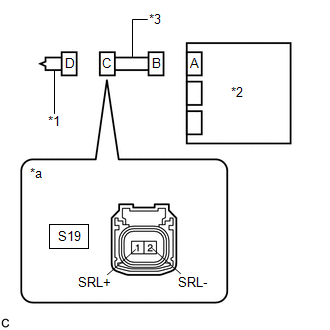

*1 Rear Seat Airbag Assembly LH *2 Airbag Sensor Assembly *3 No. 2 Floor Wire *a Front view of wire harness connector
(to Rear Seat Airbag Assembly LH) - Check for a short to B+ in the circuit.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Turn the power switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition S19-1 (SRL+) - Body ground Power switch on (IG) Below 1 V S19-2 (SRL-) - Body ground Power switch on (IG) Below 1 V - Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- Check for an open in the circuit.
- Check for a short to ground in the circuit.
- Check for a short in the circuit.
- Release the activation prevention mechanism built into connector B.
Refer to DIAGNOSIS SYSTEM [10/2015 - 08/2016] , or refer to DIAGNOSIS SYSTEM [08/2016 - 03/2018]
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition S19-1 (SRL+) - S19-2 (SRL-) Always 1 MΩ or higher - Restore the released activation prevention mechanism of connector B to the original condition.
Result
Proceed to OK NG - Release the activation prevention mechanism built into connector B.
Result:
NG
REPLACE NO. 2 FLOOR WIRE
Result:
OK
See step 4
- Disconnect the No. 2 floor wire from the airbag sensor assembly.
- CHECK DTC
- Connect the connectors to the rear seat airbag assembly LH and airbag sensor assembly.
*1 Rear Seat Airbag Assembly LH *2 Airbag Sensor Assembly - Connect the cable to the negative (-) auxiliary battery terminal.
- Clear the DTCs stored in memory.
Refer to DTC CHECK / CLEAR [10/2015 - 08/2019]
Body Electrical > SRS Airbag > Clear DTCs
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [10/2015 - 08/2019]
Body Electrical > SRS Airbag > Trouble Codes
OK
DTC B1855-63, B1856-63, B1857-63 or B1858-63 is not output.
HINT:
Codes other than DTCs B1855-63, B1856-63, B1857-63 and B1858-63 may be output at this time, but they are not related to this check.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2015 - 08/2016] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2016 - 12/2017] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2017 - 03/2018]
Result:
NG
REPLACE AIRBAG SENSOR ASSEMBLY. Refer to REMOVAL [10/2015 - 08/2016] , or refer to REMOVAL [08/2016 - 03/2018]
- Connect the connectors to the rear seat airbag assembly LH and airbag sensor assembly.
