DTC B150A: Lost Communication with HMI-LAN [12/2017 - 08/2019]: Wiring Diagram

  1. w/ Navigation System
    GTY654257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

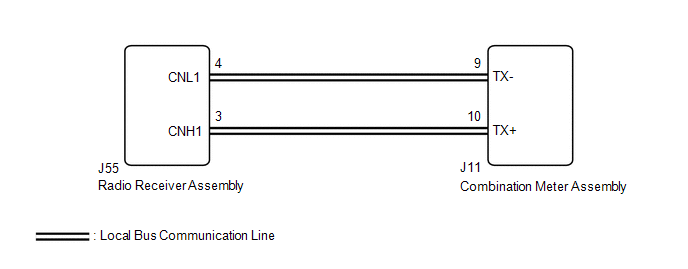

  2. w/o Navigation System
    GTY800641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
