DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [08/2019 - ]: Wiring Diagram

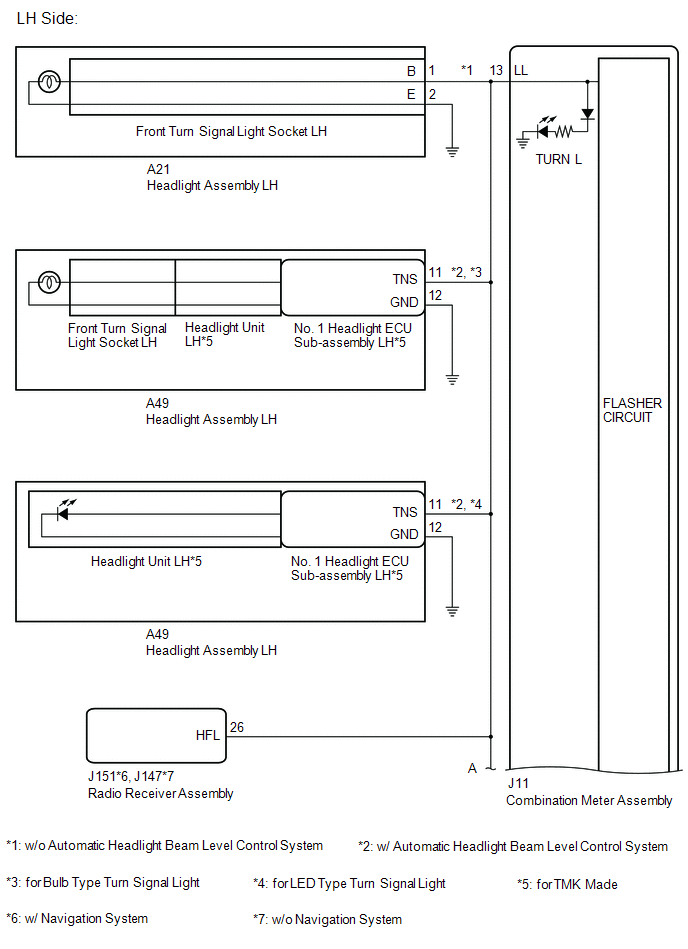

GTY962807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

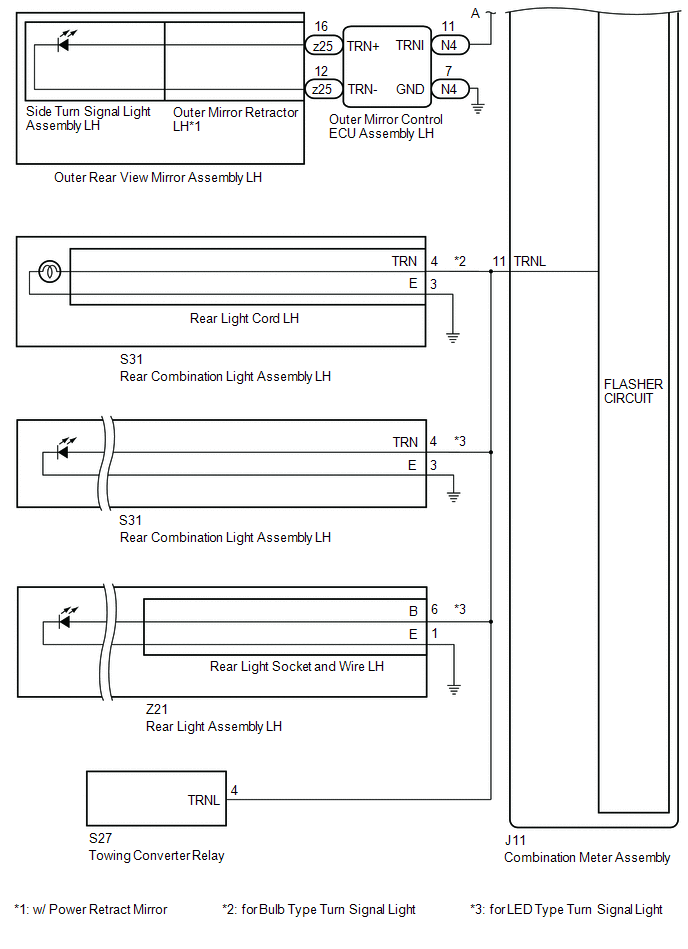

GTY962227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

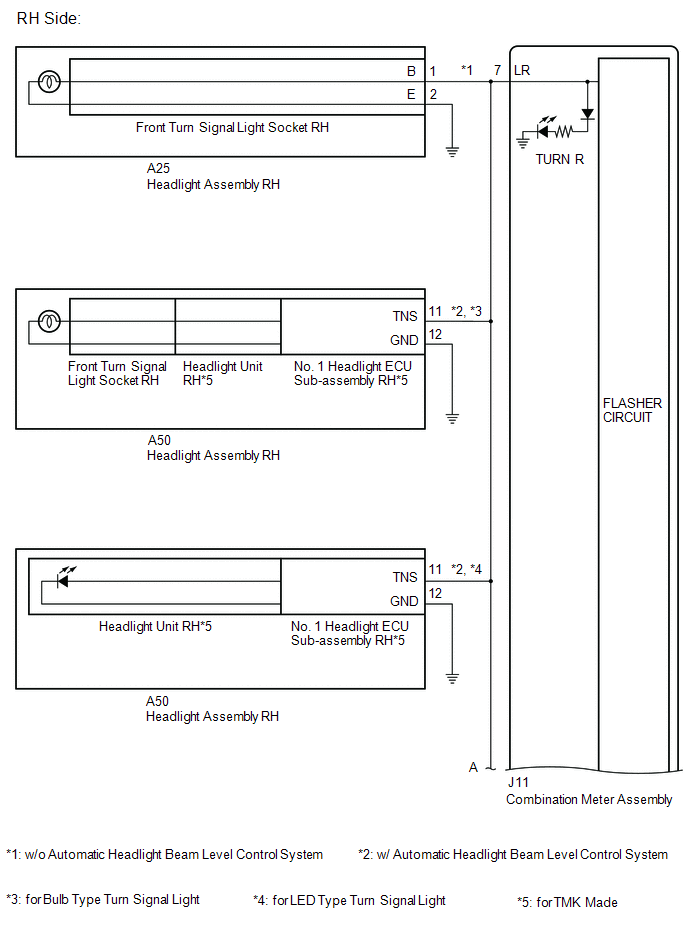

GTY962550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

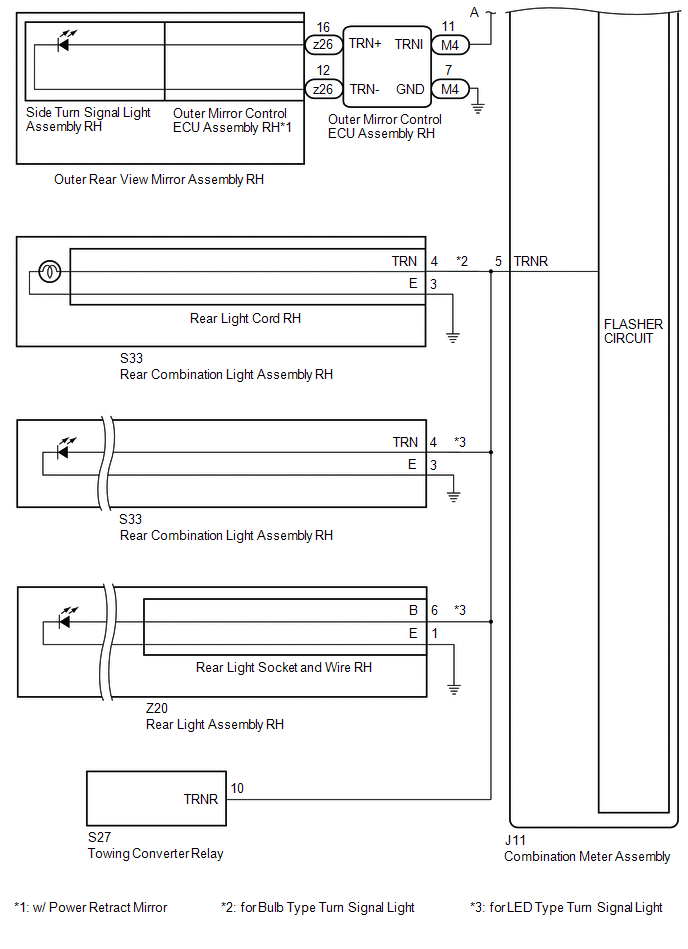

GTY962229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
