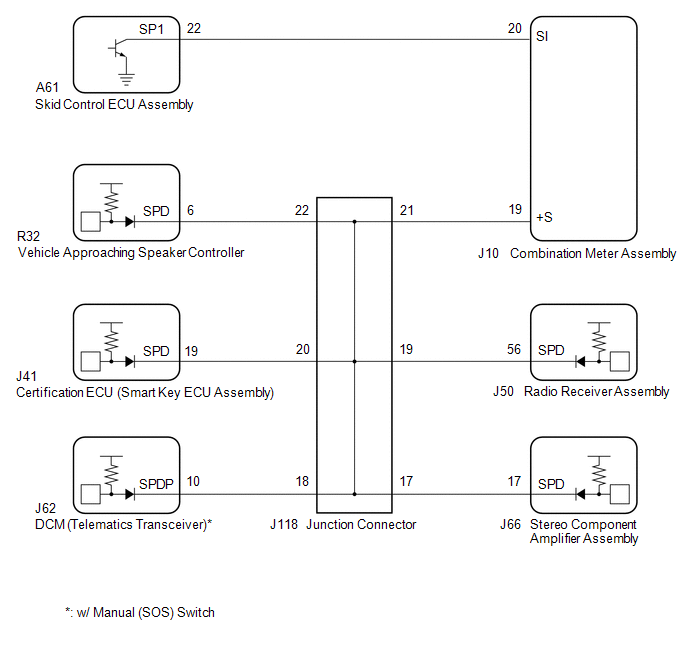

Speed Signal Circuit [10/2015 - 12/2017]: Wiring Diagram

GTY626095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
