Components [10/2015 - 03/2018]

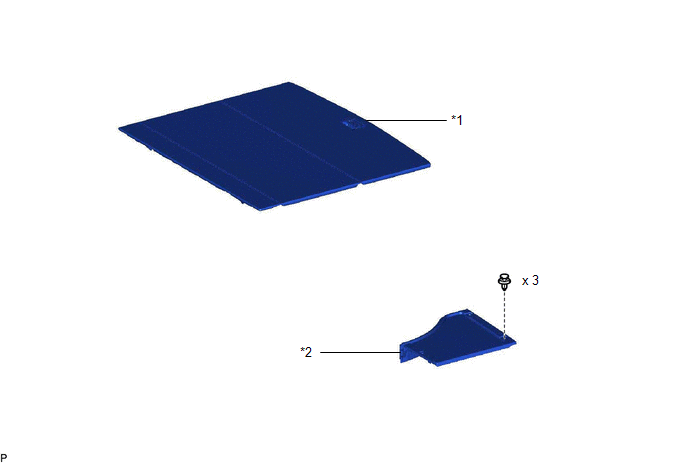

| *1 | DECK BOARD ASSEMBLY | *2 | REAR DECK FLOOR BOX |

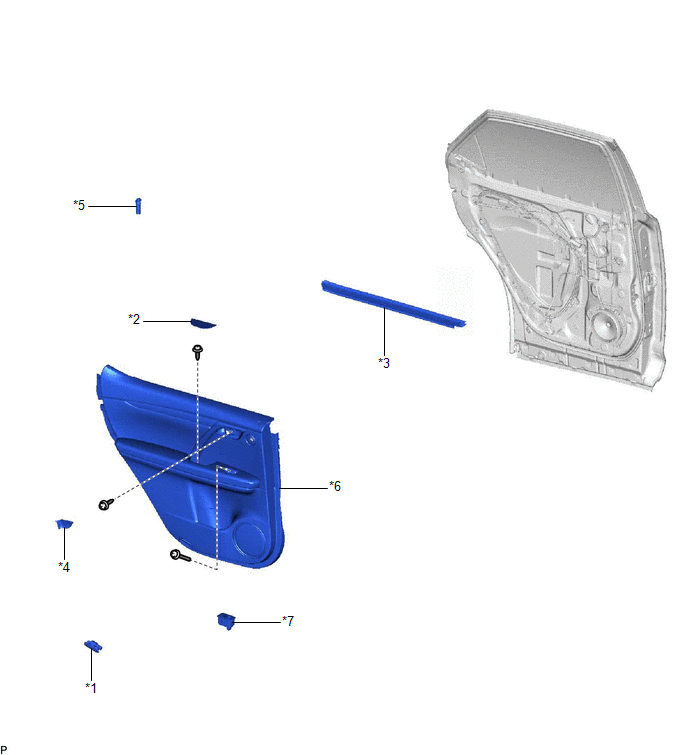

| *1 | COURTESY LIGHT ASSEMBLY | *2 | REAR DOOR ARMREST COVER |
| *3 | REAR DOOR INNER GLASS WEATHERSTRIP | *4 | REAR DOOR INSIDE HANDLE BEZEL PLUG |
| *5 | REAR DOOR LOCK CONTROL KNOB BEZEL | *6 | REAR DOOR TRIM BOARD SUB-ASSEMBLY |
| *7 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL | - | - |

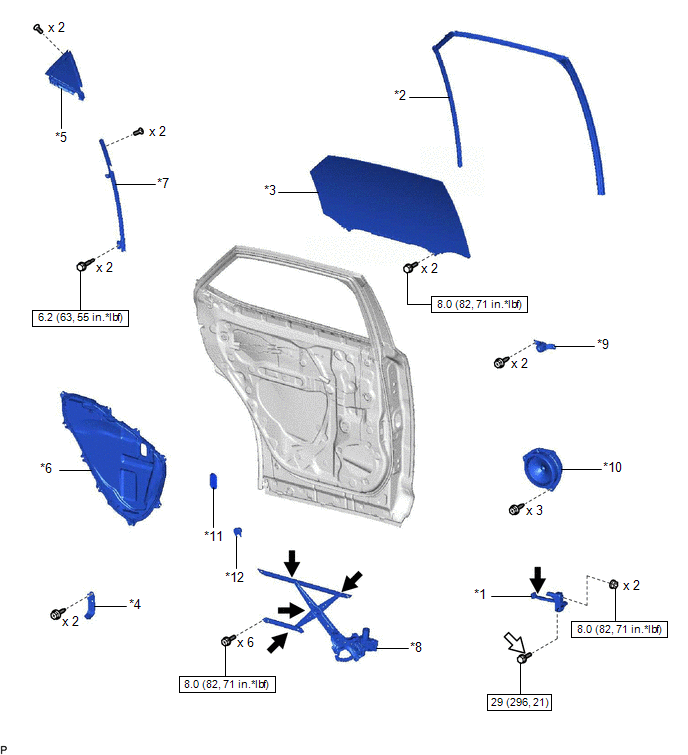

| Callout | Description | Callout | Description |
| *1 | REAR DOOR CHECK ASSEMBLY | *2 | REAR DOOR GLASS RUN |
| *3 | REAR DOOR GLASS SUB-ASSEMBLY | *4 | REAR DOOR NO. 2 TRIM BRACKET |
| *5 | REAR DOOR REAR GUIDE SEAL | *6 | REAR DOOR SERVICE HOLE COVER |
| *7 | REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY | *8 | REAR DOOR WINDOW REGULATOR ASSEMBLY |
| *9 | REAR NO. 2 SPEAKER ASSEMBLY | *10 | REAR SPEAKER ASSEMBLY |
| *11 | HOLE PLUG | *12 | REAR DOOR NO. 2 SERVICE HOLE COVER |
| N*m (kgf*cm, ft.*lbf): Specified torque | MP grease | ||
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |

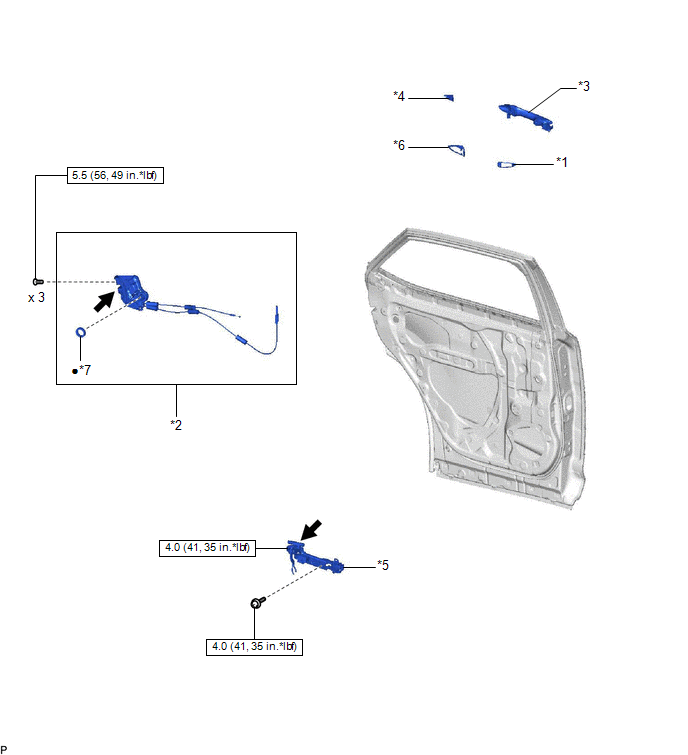

| Callout | Description | Callout | Description |
| *1 | REAR DOOR FRONT OUTSIDE HANDLE PAD | *2 | REAR DOOR LOCK ASSEMBLY |
| *3 | REAR DOOR OUTSIDE HANDLE ASSEMBLY | *4 | REAR DOOR OUTSIDE HANDLE COVER |
| *5 | REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY | *6 | REAR DOOR REAR OUTSIDE HANDLE PAD |
| *7 | DOOR LOCK WIRE HARNESS SEAL | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

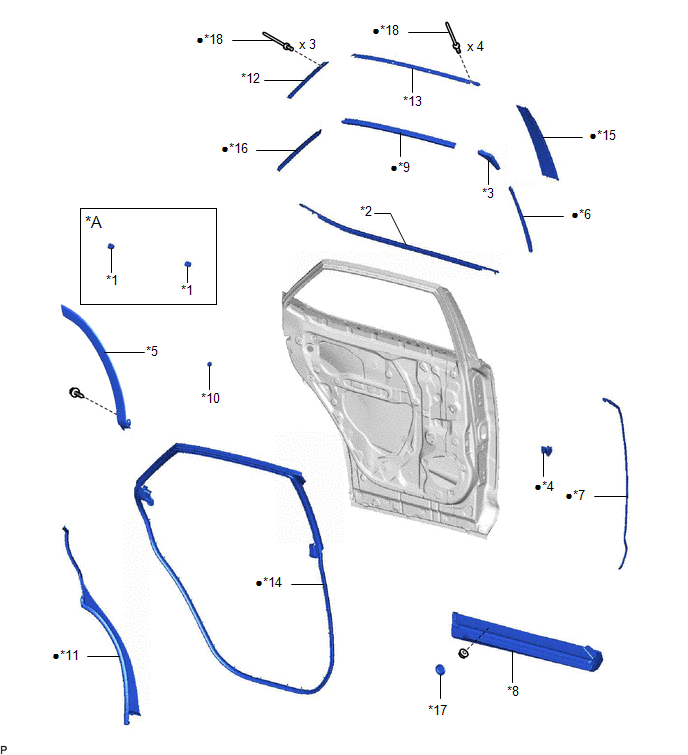

| *A | w/ Rear Door Sunshade | - | - |
| *1 | CURTAIN HOOK | *2 | REAR DOOR BELT MOULDING ASSEMBLY |
| *3 | REAR DOOR FRAME GARNISH | *4 | REAR DOOR FRONT BELT SEAL |
| *5 | REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY | *6 | REAR DOOR LOWER OUTSIDE STRIPE |
| *7 | REAR DOOR NO. 3 WEATHERSTRIP | *8 | REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY |
| *9 | REAR DOOR OUTSIDE STRIPE | *10 | REAR DOOR PANEL CUSHION |
| *11 | REAR DOOR PANEL PROTECTOR | *12 | REAR DOOR REAR WINDOW FRAME MOULDING |
| *13 | REAR DOOR UPPER WINDOW FRAME MOULDING | *14 | REAR DOOR WEATHERSTRIP |
| *15 | REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY | *16 | REAR INNER BLACK OUT TAPE |
| *17 | HOLE PLUG | *18 | RIVET |
| • | Non-reusable part | - | - |
