Removal [07/2021 - ]: Procedure

Refer to REMOVAL [10/2015 - ]

Refer to PROCEDURE - Step 3

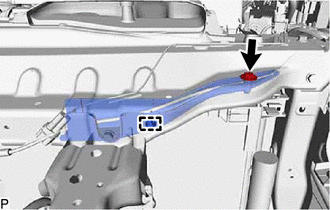

1. Remove the screw.
2. Disengage the clamp and remove the hood lock control cable cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

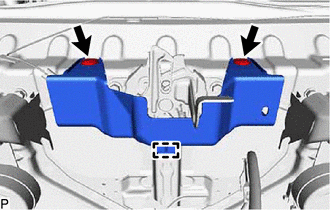

1. Remove the 2 clips.
2. Disengage the clamp to remove the hood lock release lever protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

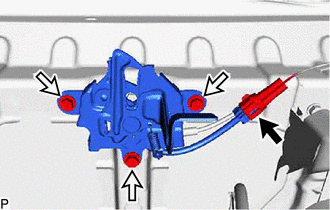

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 3 bolts.

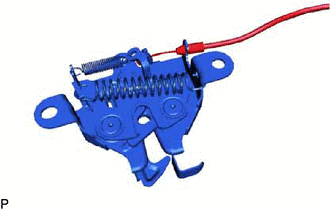

3. Disconnect the hood lock control cable assembly to remove the hood lock assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 7

Refer to PROCEDURE - Step 8

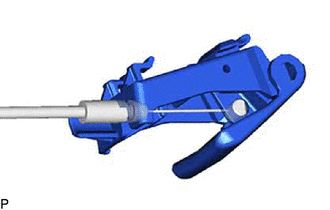

1. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

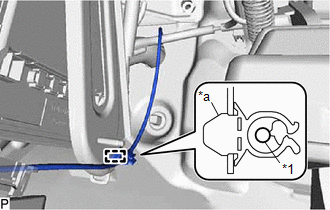

1. Using a screwdriver, disengage the clamp as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Hood Lock Control Cable Assembly
   *a	Clamp

2. Tie a string to the hood lock control lever sub-assembly side end of the hood lock control cable assembly.

   HINT:

   Use a length of string long enough to pass through the engine compartment.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Pull the hood lock control cable assembly through the grommet.

   HINT:

   Leave the string inside the grommet.

4. Disconnect the string from the hood lock control cable assembly.

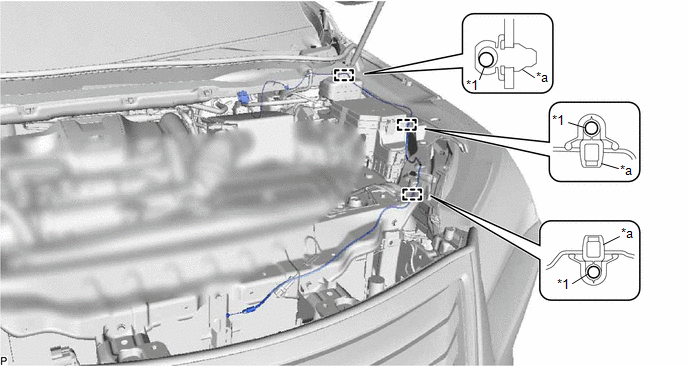

5. Using a screwdriver, disengage the 3 clamps as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Hood Lock Control Cable Assembly	-	-
   *a	Clamp	-	-

   HINT:

   Tape the screwdriver tip before use.

6. Pull the hood lock control cable assembly from the engine compartment to remove it.
