Replacement [10/2015 - 03/2018]: Procedure

Refer to PROCEDURE - Step 24 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 24 [08/2016 - 08/2019]

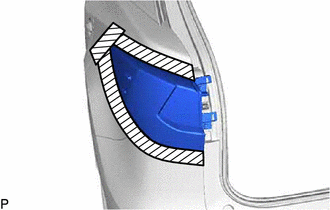

1. Apply protective tape around the rear combination light assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

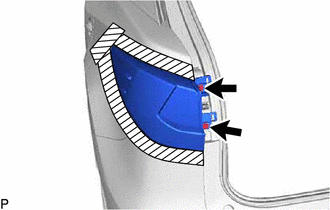

2. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

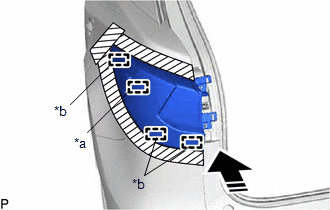

3. Pull the rear combination light assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light assembly.
   NOTE:

   To prevent the rear combination light assembly from falling when disengaging the pin, lightly hold the rear combination light assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pin
   *b	Guide
   	Remove in this Direction

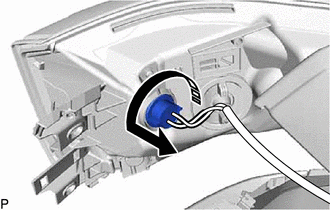

1. Turn the rear light socket and wire with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Remove the rear turn signal light bulb from the rear light socket and wire.

1. Install a new rear turn signal light bulb to the rear light socket and wire.

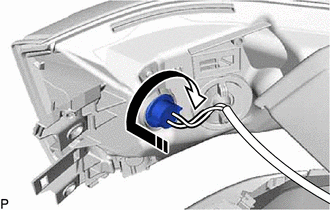

2. Turn the rear light socket and wire with the rear turn signal light bulb as shown in the illustration to connect them as a unit.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

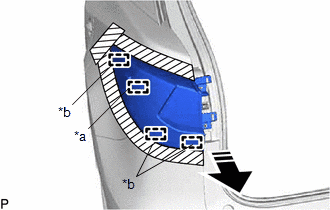

1. Engage the 3 guides and pin to temporarily install the rear combination light assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pin
   *b	Guide
   	Install in this Direction

2. Install the rear combination light assembly with the 2 screws.
3. Remove the protective tape.

See step  2
