Removal [08/2019 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [08/2019 - ]

  2. REMOVE REAR LIGHT ASSEMBLY (for Bulb Type Turn Signal Light)
    1. Disconnect the connector.
      GTY646220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts.
    3. Disengage the pin to remove the rear light assembly as shown in the illustration.
      GTY614065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE REAR LIGHT ASSEMBLY (for LED Type Turn Signal Light)

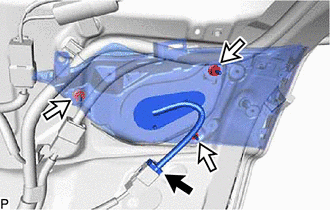

    1. Disconnect the connector.
      GTY961284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts.

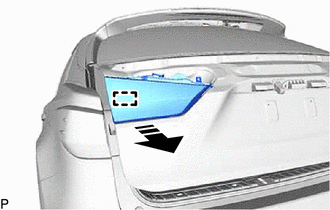

    3. Disengage the pin to remove the rear light assembly as shown in the illustration.
      GTY961460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
