Reassembly [10/2015 - 08/2019]: Procedure

  1. INSTALL REAR LIGHT LENS AND BODY
  2. INSTALL LICENSE PLATE LIGHT SHADE
    1. Install 2 new license plate light shades.

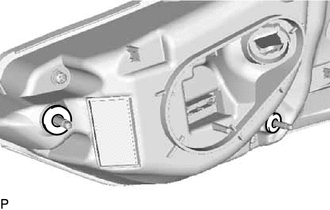

      GTY646217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR LIGHT GASKET
    1. Install a new rear light gasket.

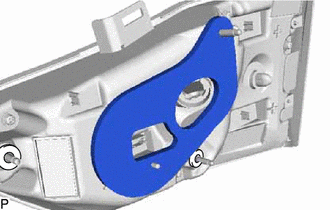

      GTY646219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL BACK-UP LIGHT SOCKET AND WIRE
    1. Connect the connector to install the back-up light socket and wire.

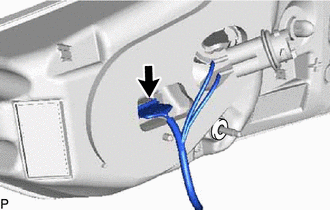

      GTY646218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL BACK-UP LIGHT BULB
    1. Install the back-up light bulb to the back-up light socket and wire.
    2. Turn the back-up light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.

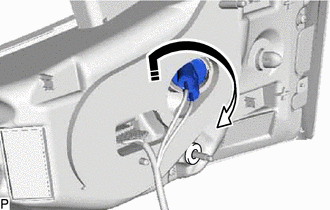

      GTY650396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
