Reassembly [08/2019 - ]: Procedure

  1. INSTALL REAR LIGHT LENS AND BODY (for Bulb Type Turn Signal Light)
  2. INSTALL LICENSE PLATE LIGHT SHADE
    1. for Bulb Type Turn Signal Light:
      GTY646217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install 2 new license plate light shades.

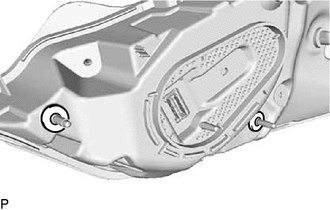

    2. for LED Type Turn Signal Light:
      GTY961550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install 2 new license plate light shades.
  3. INSTALL REAR LIGHT GASKET
    1. for Bulb Type Turn Signal Light:
      GTY646219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new rear light gasket.

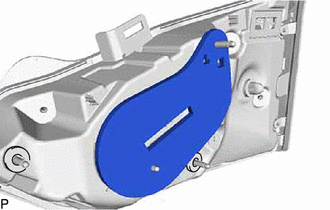

    2. for LED Type Turn Signal Light:
      GTY961557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new rear light gasket.
  4. INSTALL REAR LIGHT SOCKET AND WIRE
    1. for Bulb Type Turn Signal Light:
      1. Connect the connector to install the rear light socket and wire.
        GTY646218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

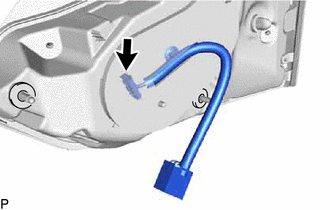

    2. for LED Type Turn Signal Light:
      1. Connect the connector to install the rear light socket and wire.
        GTY961554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL BACK-UP LIGHT BULB (for Bulb Type Turn Signal Light)
    1. Install the back-up light bulb to the rear light socket and wire.
    2. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.
      GTY650396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
