Disassembly [10/2015 - 08/2019]: Procedure

  1. REMOVE BACK-UP LIGHT BULB

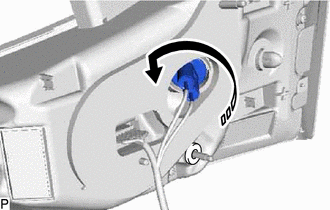

    1. Turn the back-up light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.
      GTY676004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the back-up light bulb from the back-up light socket and wire.
  2. REMOVE BACK-UP LIGHT SOCKET AND WIRE
    1. Disconnect the connector to remove the back-up light socket and wire.
      GTY646218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR LIGHT GASKET
    1. Remove the rear light gasket.
      GTY646219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be sure to remove all traces of the old rear light gasket from the vehicle body.
      • Do not reuse the removed rear light gasket. Be sure to install a new rear light gasket to prevent water ingress.
  4. REMOVE LICENSE PLATE LIGHT SHADE
    1. Remove the 2 license plate light shades.
      NOTE:
      • Be sure to remove all the traces of the old license plate light shade from the vehicle body.
      • Do not reuse the removed license plate light shade. Be sure to install a new license plate light shade to prevent water ingress.
      GTY646217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR LIGHT LENS AND BODY
