Components [08/2019 - ]

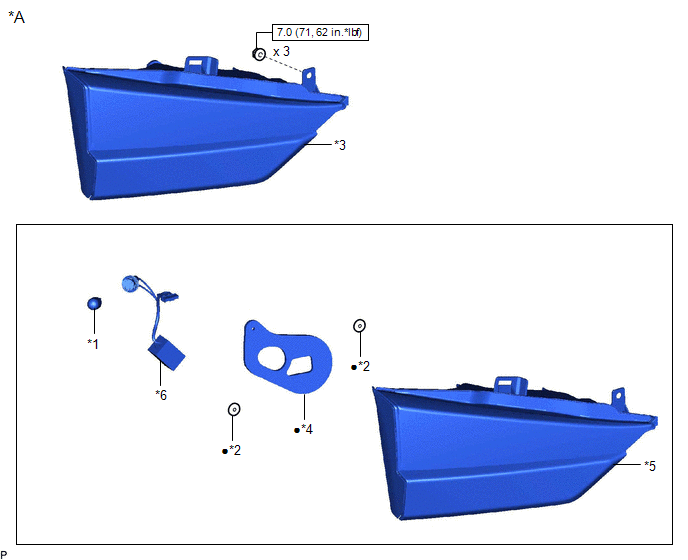

Fig 1: Rear Light Assembly Replacement Components With Torque Specifications [08/2019 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Bulb Type Turn Signal Light	-	-
*1	BACK-UP LIGHT BULB	*2	LICENSE PLATE LIGHT SHADE
*3	REAR LIGHT ASSEMBLY	*4	REAR LIGHT GASKET
*5	REAR LIGHT LENS AND BODY	*6	REAR LIGHT SOCKET AND WIRE
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

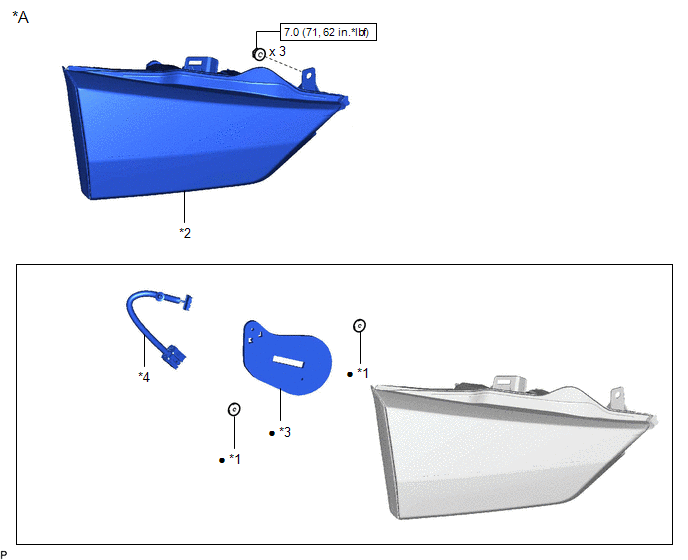

Fig 2: Rear Light Assembly Replacement Components With Torque Specifications [08/2019 - ] (2 Of 2)

Callout	Description	Callout	Description
*A	for LED Type Turn Signal Light	-	-
*1	LICENSE PLATE LIGHT SHADE	*2	REAR LIGHT ASSEMBLY
*3	REAR LIGHT GASKET	*4	REAR LIGHT SOCKET AND WIRE
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
