Reassembly [10/2015 - 08/2019]: Procedure

  1. INSTALL REAR COMBINATION LIGHT LENS AND BODY
  2. INSTALL REAR COMBINATION LIGHT BRACKET
    1. Install the rear combination light bracket with the screw.

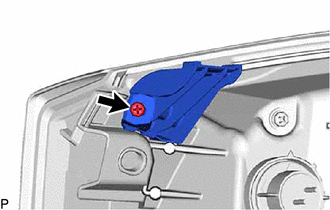

      GTY646225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR LIGHT SOCKET AND WIRE
    1. Connect the connector to install the rear light socket and wire.

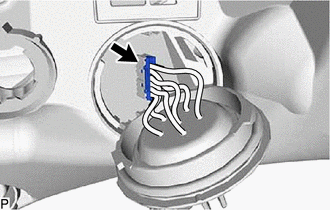

      GTY646222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the rear light socket and wire as shown in the illustration to connect them as a unit.

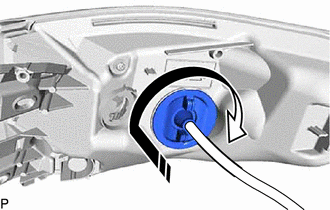

      GTY638107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL REAR TURN SIGNAL LIGHT BULB (for Bulb Type)
    1. Install the rear turn signal light bulb to the rear light socket and wire.
    2. Turn the rear light socket and wire with the rear turn signal light bulb as shown in the illustration to connect them as a unit.

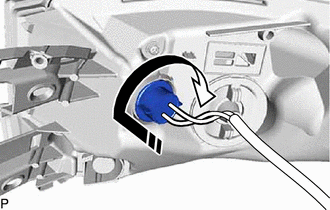

      GTY625913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
