Removal [10/2015 - ]: Procedure

  1. REMOVE REAR SPOILER SUB-ASSEMBLY

    Refer to REMOVAL [10/2015 - 03/2018] , or refer to REMOVAL [03/2018 - ]

  2. REMOVE CENTER STOP LIGHT ASSEMBLY

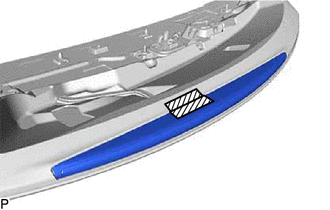

    1. Apply protective tape to the area shown in the illustration.
      GTY620523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

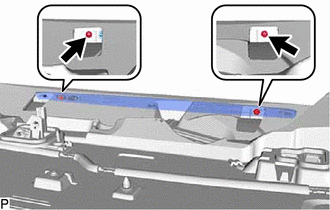

    2. Remove the 2 screws.
      GTY646201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

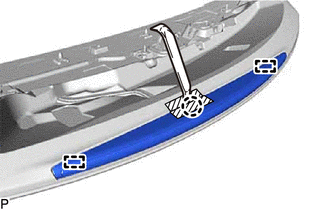

    3. Using a molding remover, disengage the claw and 2 guides as shown in the illustration.
      GTY646198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

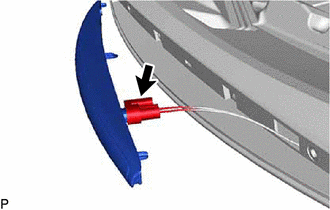

    4. Disconnect the connector to remove the center stop light assembly.
      GTY646202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
