Headlight Ecu
>>
Components [10/2015 - 08/2019]
Components [10/2015 - 08/2019]

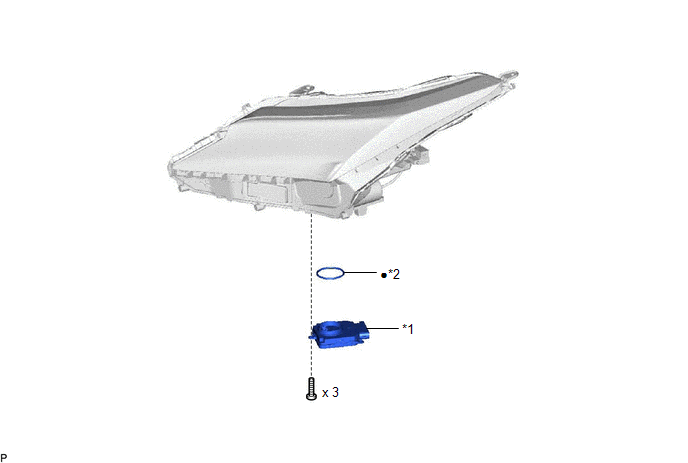

Fig 1: Headlight ECU Replacement Components [10/2015 - 08/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
HEADLIGHT ECU SUB-ASSEMBLY
*2
HEADLIGHT GASKET
•
Non-reusable part
-
-
