Inspection [10/2015 - 08/2019]: Procedure
- INSPECT RADIO RECEIVER ASSEMBLY
- Measure the resistance according to the value(s) in the table below.

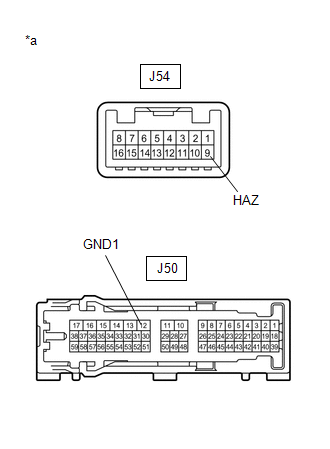

*a Component without harness connected
(Radio Receiver Assembly (Hazard Warning Signal Switch))Standard Resistance
Tester Connection Condition Specified Condition J54-9 (HAZ) - J50-12 (GND1) Hazard warning signal switch off 10 MΩ or higher Hazard warning signal switch on Below 125 Ω If the result is not as specified, replace the radio receiver assembly (hazard warning signal switch).
- Hazard warning signal switch indicator inspection

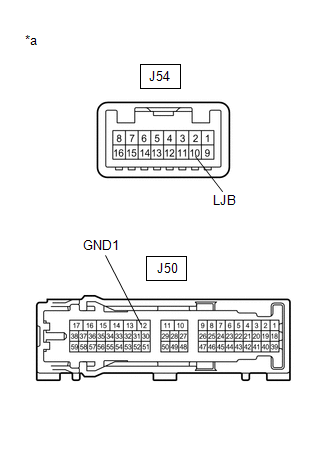

*a Component without harness connected
(Radio Receiver Assembly (Hazard Warning Signal Switch))- Apply auxiliary battery voltage to the radio receiver assembly (hazard warning signal switch) and check that the hazard warning signal switch indicator illuminates.
OK
Condition Specified Condition Auxiliary battery positive (+) → J54-10 (LJB)
Auxiliary battery negative (-) → J50-12 (GND1)Illuminates If the result is not as specified, replace the radio receiver assembly (hazard warning signal switch).
- Apply auxiliary battery voltage to the radio receiver assembly (hazard warning signal switch) and check that the hazard warning signal switch indicator illuminates.
- Measure the resistance according to the value(s) in the table below.
