Lighting System (Exterior) (Service Information) (2 Of 2)
>>
Hazard Warning Switch
>>
Components [12/2017 - 08/2019]
Components [12/2017 - 08/2019]

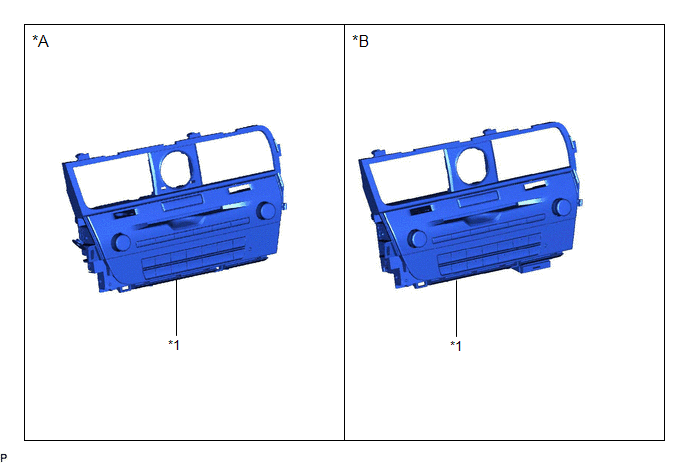

Fig 1: Hazard Warning Switch Replacement Components [12/2017 - 08/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
w/o Navigation System
*B
w/ Navigation System
*1
HAZARD WARNING SWITCH (RADIO RECEIVER ASSEMBLY)
-
-
