Components [10/2015 - ]

Fig 1: Roof Rack (W/O Rear No. 2 Seat) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Panoramic Moon Roof	-	-
*1	FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH	*2	ROOF RACK ASSEMBLY LH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

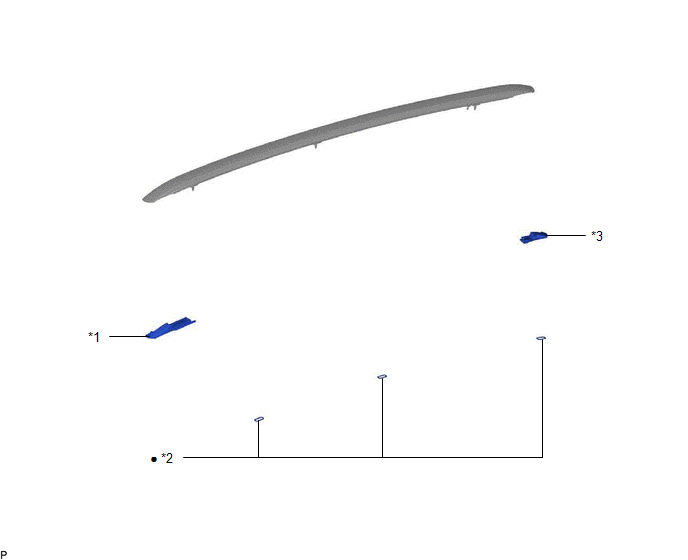

Fig 2: Roof Rack (W/O Rear No. 2 Seat) Replacement Components (2 Of 2)

*1	FRONT ROOF RACK LEG CUSHION LH	*2	NO. 2 ROOF CARRIER SEAL
*3	REAR ROOF RACK LEG CUSHION LH	-	-
•	Non-reusable part	-	-
