Components [10/2015 - 08/2019]

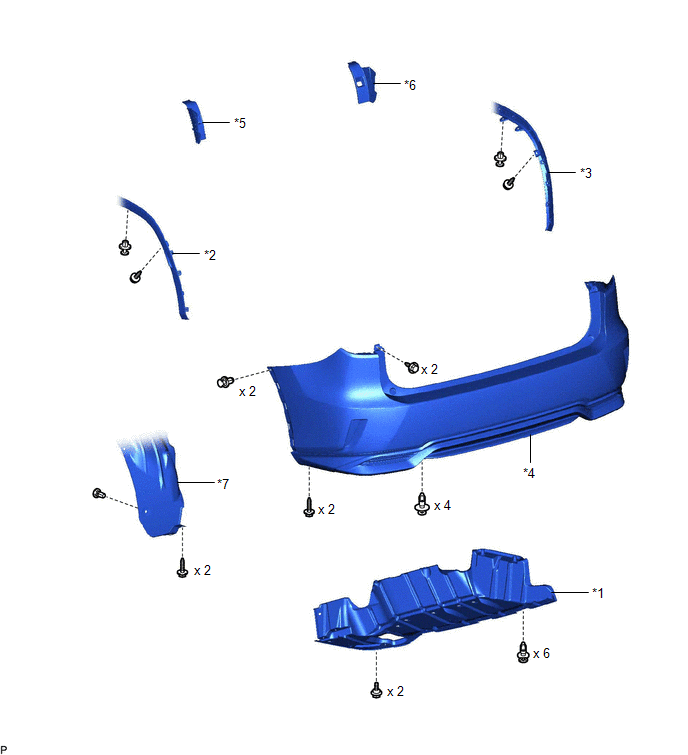

| *1 | NO. 2 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR | *2 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH |
| *3 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH | *4 | REAR BUMPER ASSEMBLY |
| *5 | REAR LIGHT COVER LH | *6 | REAR LIGHT COVER RH |
| *7 | REAR WHEEL HOUSE LINER LH | - | - |

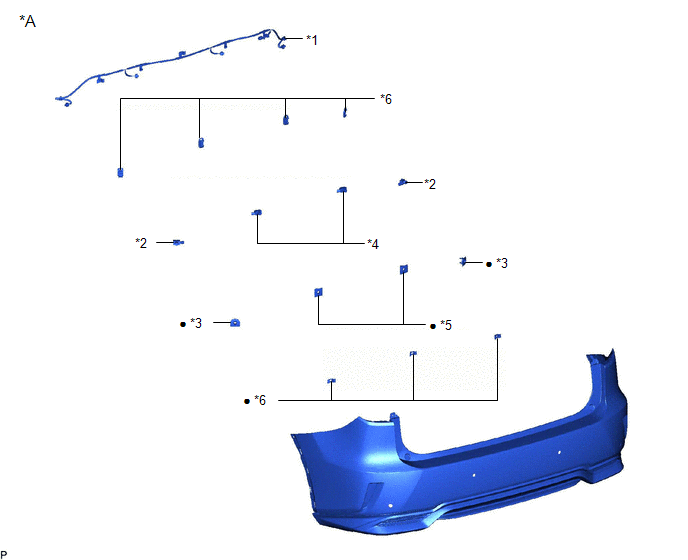

| *A | w/ Intuitive Parking Assist System | - | - |
| *1 | NO. 3 LUGGAGE ROOM WIRE | *2 | NO. 3 ULTRASONIC SENSOR |
| *3 | NO. 3 ULTRASONIC SENSOR RETAINER | *4 | NO. 4 ULTRASONIC SENSOR |
| *5 | NO. 4 ULTRASONIC SENSOR RETAINER | *6 | ULTRASONIC SENSOR CLIP |
| • | Non-reusable part | - | - |

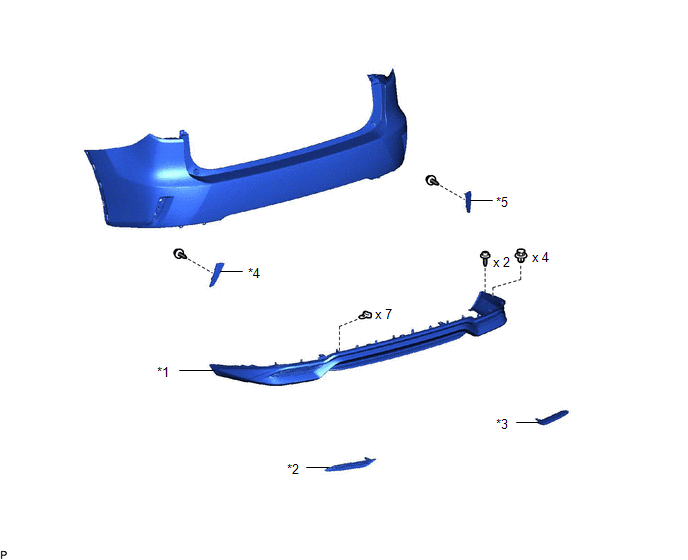

| *1 | CENTER REAR BUMPER EXTENSION SUB-ASSEMBLY | *2 | REAR BUMPER SIDE SEAL LH |
| *3 | REAR BUMPER SIDE SEAL RH | *4 | REFLEX REFLECTOR ASSEMBLY LH |
| *5 | REFLEX REFLECTOR ASSEMBLY RH | - | - |

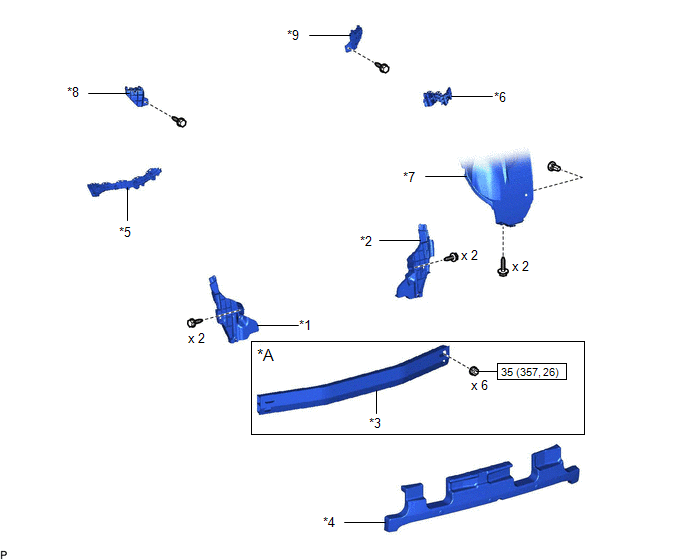

Fig 4: Rear Bumper (W/O Rear No. 2 Seat) Replacement Components With Torque Specifications (4 Of 5) [10/2015 - 08/2019]
| Callout | Description | Callout | Description |
| *A | w/o Towing Hitch | - | - |
| *1 | LOWER REAR BUMPER RETAINER LH | *2 | LOWER REAR BUMPER RETAINER RH |
| *3 | NO. 1 REAR BUMPER REINFORCEMENT | *4 | REAR BUMPER ENERGY ABSORBER |
| *5 | REAR BUMPER SIDE RETAINER LH | *6 | REAR BUMPER SIDE RETAINER RH |
| *7 | REAR WHEEL HOUSE LINER RH | *8 | UPPER REAR BUMPER RETAINER LH |
| *9 | UPPER REAR BUMPER RETAINER RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 5: Rear Bumper (W/O Rear No. 2 Seat) Replacement Components With Torque Specifications (5 Of 5) [10/2015 - 08/2019]
| Callout | Description | Callout | Description |
| *A | w/ Towing Hitch | - | - |
| *1 | REAR BUMPER ENERGY ABSORBER | *2 | RECEIVER HITCH BRACKET LH |
| *3 | RECEIVER HITCH BRACKET RH | *4 | RECEIVER HITCH BRACKET SUB-ASSEMBLY |
| *5 | TOWING SOCKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
