System Description [12/2017 - 03/2018]

  1. OUTLINE OF COMBINATION METER ASSEMBLY

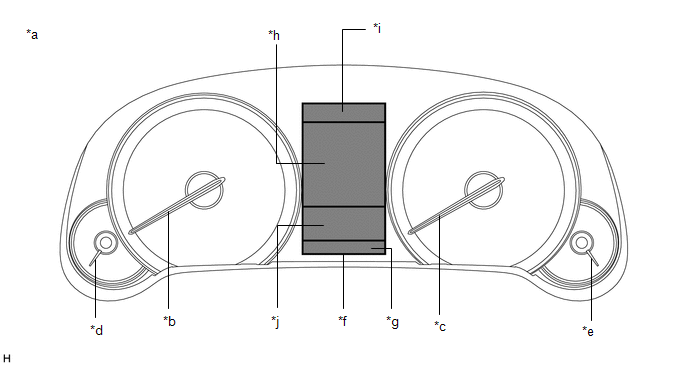

    1. for Optitron Meter Type
      GTY669942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Indication Example *b Tachometer or Hybrid System Indicator
      *c Speedometer *d Engine Coolant Temperature Receiver Gauge
      *e Fuel Receiver Gauge *f Multi-information Display
      *g Display Area A1 *h Display Area A2
      *i Display Area A3 *j Display Area A4

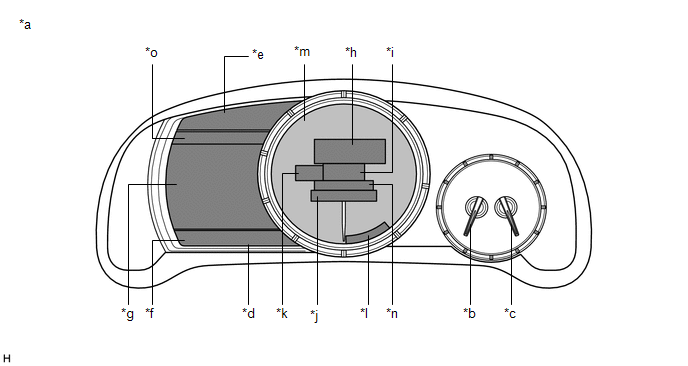

    2. for TFT Meter Type
      GTY672843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Indication Example *b Engine Coolant Temperature Receiver Gauge
      *c Fuel Receiver Gauge *d Multi-information Display
      *e Display Area B1 *f Display Area B2
      *g Display Area B3 *h Display Area B4
      *i Display Area B5 *j Display Area B6
      *k Display Area B7 *l Display Area B8
      *m Display Area B9 *n Display Area B10
      *o Display Area B11 - -
  2. INPUT AND OUTPUT SIGNALS OF COMBINATION METER ASSEMBLY
    1. Meter or Gauge
      Item Condition Input/Output Communication line Signal Component Display Area
      Speedometer
      • Gauge*1
      • Displayed*2
      		 Input CAN Vehicle speed (SP1) signal Skid control ECU assembly B4
      - Input Direct line Vehicle speed pulse input signal
      Output CAN Vehicle speed signal (meter to other) Related ECUs
      Speed tolerance A signal
      Speed tolerance B signal
      Direct line Vehicle speed pulse output signal Related ECUs
      Tachometer
      • Gauge*1
      • Displayed*2
      		 Input CAN Engine RPM data signal Hybrid vehicle control ECU assembly B9
      Fuel receiver gauge Gauge Input CAN Fuel consumption signal ECM assembly -
      Ready signal Hybrid vehicle control ECU assembly
      Shift position P signal
      Shift position R signal
      Shift position N signal
      Shift position D signal
      Sports mode indicator signal
      Vehicle speed (SP1) signal Skid control ECU assembly
      Direct line Fuel level signal Fuel sender gauge assembly
      Output CAN Fuel gauge state signal Related ECUs
      Fuel gauge initial signal
      Fuel direct data signal
      Fuel initial signal
      Fuel average signal
      Engine coolant temperature receiver gauge Gauge Input CAN Engine coolant temperature signal ECM assembly -
      Hybrid system indicator
      • Gauge*1
      • Displayed*2
      		 Input CAN Eco-zone indicator level signal Hybrid vehicle control ECU assembly B9
      1. *1: for Optitron Meter Type
      2. *2: for TFT Meter Type
    2. Warning or Indicator
      Item Condition Input/Output Communication line Signal Component
      Master warning light Comes on/Blinks Input CAN/Direct line Each warning signal Related ECUs
      Brake warning light / red (malfunction) Comes on Input CAN Brake warning light control flag signal Skid control ECU assembly
      Driver or front passenger seat belt warning light Comes on/Blinks Input CAN Driver seat belt buckle switch signal Main body ECU (Multiplex network body ECU)
      Parking brake switch signal
      Shift position P signal Hybrid vehicle control ECU assembly
      Vehicle speed (SP1) signal Skid control ECU assembly
      Front passenger seat occupant detection status signal Airbag sensor assembly
      Front passenger seat belt buckle switch detection status signal
      SRS warning light Comes on Input CAN Airbag warning light control request signal Airbag sensor assembly
      Test mode signal ECM assembly
      Charge warning light*1 Comes on Input CAN Charge light indicator signal ECM assembly
      EPS warning light Comes on Input CAN EPS warning light request signal Power steering ECU assembly
      Parking brake warning light Comes on/Blinks Input Direct line Parking brake signal Skid control ECU assembly
      MIL (Check engine warning light) Comes on/Blinks Input CAN MIL request signal ECM assembly
      PCS warning light Comes on/Blinks Input CAN PCS indicator display signal Driving support ECU assembly
      Slip indicator light Comes on/Blinks Input CAN Slip indicator light signal Skid control ECU assembly
      VSC OFF indicator light Comes on Input CAN VSC OFF light signal Skid control ECU assembly
      ABS warning light Comes on/Blinks Input CAN ABS warning light control flag signal Skid control ECU assembly
      Brake warning light / yellow (minor malfunction) Comes on/Blinks Input CAN ECB warning light control flag signal Skid control ECU assembly
      Direct line EPB warning signal
      Blinks Input CAN ECB warning light control flag signal Skid control ECU assembly
      Tire pressure warning light Comes on/Blinks Input CAN TPMS warning indicator condition 1 signal Main body ECU (Multiplex network body ECU)
      Brake hold warning light Comes on/Blinks Input CAN Brake hold hold indicator signal Skid control ECU assembly
      Fuel level warning light Comes on Input Direct line Fuel level signal Fuel sender gauge assembly
      - Output CAN Request GS search signal Related ECUs
      ICS OFF indicator light*2 Comes on/Blinks Input CAN ICS-OFF light request signal Clearance warning ECU assembly
      Automatic high beam indicator light Comes on Input CAN Smart beam indicator signal Main body ECU (Multiplex network body ECU)
      High beam indicator light Comes on Input CAN High beam headlight request signal Main body ECU (Multiplex network body ECU)
      Ready indicator light Comes on/Blinks Input CAN Ready signal Hybrid vehicle control ECU assembly
      STA signal
      Tail indicator light*3 Comes on Input CAN Taillight request signal Main body ECU (Multiplex network body ECU)
      Head indicator light*4 Comes on Input CAN Low beam headlight request signal Main body ECU (Multiplex network body ECU)
      Front fog indicator light Comes on Input CAN Front fog light request signal Main body ECU (Multiplex network body ECU)
      Turn indicator light Blinks Input CAN Flasher request signal Main body ECU (Multiplex network body ECU)
      PBD hazard request signal Multiplex network door ECU
      Hazard light activation request signal DCM (Telematics transceiver)*5
      Direct line LH turn signal switch signal Headlight dimmer switch assembly
      RH turn signal switch signal
      Hazard warning switch signal Radio receiver assembly (Hazard warning signal switch)
      - Output CAN Turn light state signal Related ECUs
      Hazard switch state signal
      Direct line Front and side turn signal light LH output signal Each turn signal light
      Front and side turn signal light RH output signal
      Rear turn signal light LH output signal
      Rear turn signal light RH output signal
      Hazard warning switch signal
      EV indicator light Comes on Input CAN Engine mode ID signal Hybrid vehicle control ECU assembly
      Engine RPM data signal ECM assembly
      Vehicle speed (SP1) signal Skid control ECU assembly
      Brake hold indicator light Comes on Input CAN Brake hold standby indicator signal Skid control ECU assembly
      Clearance sonar indicator light*2 Comes on Input CAN CLSO main switch indicator turn ON signal Clearance warning ECU assembly
      RCTA indicator light Comes on Input CAN RCTA switch signal Blind spot monitor sensor LH
      BSM indicator light Comes on Input CAN BSD main switch signal Blind spot monitor sensor LH
      Rear seat belt warning light - Input CAN Rear right door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Rear left door courtesy switch signal
      Parked condition signal
      Vehicle speed (SP1) signal Skid control ECU assembly
      Direct line Rear left seat belt buckle switch signal Rear seat inner belt assembly LH
      Rear center seat belt buckle switch signal Rear center seat inner belt assembly
      Rear right seat belt buckle switch signal Rear seat 3 point type belt assembly RH
      Comes on Output Direct line Rear right seat belt warning output signal Radio receiver assembly (Rear seat belt warning light)
      Rear center seat belt warning output signal
      Rear left seat belt warning output signal
      1. *1: for TFT Meter Type
      2. *2: w/ Intelligent Clearance Sonar System
      3. *3: w/ Tail Indicator Light
      4. *4: w/ Head Indicator Light
      5. *5: w/ Manual (SOS) Switch
    3. Multi-information Display
      Item Condition Input/Output Communication line Signal Component Display Area
      Opening - - - - - A1, A2, A3, A4, B1, B2, B3, B11
      Odometer Displayed Input CAN Vehicle speed pulse signal integrated value signal Skid control ECU assembly A1, B6
      Vehicle speed (SP1) signal
      Direct line ODO/TRIP change switch signal Trip switch
      - Output CAN Odo meter unit signal Related ECUs
      Odo meter signal
      TRIP A / TRIP B Displayed Input CAN Vehicle speed pulse signal integrated value signal Skid control ECU assembly A1, B6
      Vehicle speed (SP1) signal
      Direct line ODO/TRIP change switch signal Trip switch
      - Output CAN TRIP A signal DCM (Telematics transceiver)*12
      TRIP B signal
      Engine oil maintenance mileage Displayed Input CAN Oil maintenance mileage signal ECM assembly A1, B6
      Oil mileage unit signal
      Oil maintenance screen inversion demand signal
      - Output CAN Unit change 2 (km/mile) signal Related ECUs
      Current fuel consumption Displayed Input CAN Vehicle speed (SP1) signal Skid control ECU assembly A2, B3
      Vehicle speed pulse signal integrated value signal
      Fuel consumption signal ECM assembly
      Ready signal Hybrid vehicle control ECU assembly
      - Output CAN Drive monitor unit signal 0 Radio receiver assembly
      Drive monitor display signal (Current fuel consumption)
      Average fuel consumption (After reset) Displayed Input CAN Fuel consumption signal ECM assembly A2, B3
      Ready signal Hybrid vehicle control ECU assembly
      Total average fuel consumption reset request signal Radio receiver assembly
      Vehicle speed (SP1) signal Skid control ECU assembly
      Vehicle speed pulse signal integrated value signal
      Direct line Reset signal Steering pad switch assembly
      - Output CAN Drive monitor unit signal 6 Related ECUs
      Drive monitor display signal (Total average fuel consumption)
      Average fuel consumption (After start) Displayed Input CAN Fuel consumption signal ECM assembly A2, B3
      Ready signal Hybrid vehicle control ECU assembly
      Vehicle speed (SP1) signal Skid control ECU assembly
      Vehicle speed pulse signal integrated value signal
      Average fuel consumption (After refuel) Displayed Input CAN Fuel consumption signal ECM assembly A2, B3
      Vehicle speed (SP1) signal Skid control ECU assembly
      Vehicle speed pulse signal integrated value signal
      - Output CAN Drive monitor display signal (Average fuel consumption after refuel) Related ECUs
      Average speed (After reset) Displayed Input CAN Ready signal Hybrid vehicle control ECU assembly A2, B3
      Vehicle speed (SP1) signal Skid control ECU assembly
      Vehicle speed pulse signal integrated value signal
      Direct line Reset signal Steering pad switch assembly
      Average speed (After start) Displayed Input CAN Ready signal Hybrid vehicle control ECU assembly A2, B3
      Vehicle speed (SP1) signal Skid control ECU assembly
      Vehicle speed pulse signal integrated value signal
      - Output CAN Drive monitor unit signal 1 Radio receiver assembly
      Drive monitor display signal (After starting average speed)
      Elapsed time (After reset) Displayed Input CAN Ready signal Hybrid vehicle control ECU assembly A2, B3
      Direct line Reset signal Steering pad switch assembly
      Elapsed time (After start) Displayed Input CAN Ready signal Hybrid vehicle control ECU assembly A2, B3
      - Output CAN Drive monitor display signal (After starting driving time) Related ECUs
      Distance (Range) Displayed Input CAN Engine type information 1 signal ECM assembly A2, B3
      Engine type information 2 signal
      Engine type information 3 signal
      Engine type information 4 signal
      Engine RPM data signal
      Drivetrain information signal
      Fuel consumption signal
      Vehicle speed pulse signal integrated value signal Skid control ECU assembly
      Direct line Fuel level signal Fuel sender gauge assembly
      - Output CAN Drive monitor unit signal 4 Related ECUs
      Drive monitor display signal (Drivable distance)
      Distance (After start) Displayed Input CAN Ready signal Hybrid vehicle control ECU assembly A2, B3
      Vehicle speed (SP1) signal Skid control ECU assembly
      Vehicle speed pulse signal integrated value signal
      Energy flow Displayed Input CAN Energy flow (Engine → Wheels) signal Hybrid vehicle control ECU assembly A2, B3
      Energy flow (Engine → Motor) signal
      Energy flow (Motor → Wheels) signal
      Energy flow (Motor → HV battery) signal
      State of charge signal
      Vehicle speed (SP1) signal Skid control ECU assembly
      Tire pressure Displayed Input CAN TPMS FL (ID1) tire pressure information signal Main body ECU (Multiplex network body ECU) A2, B3
      TPMS FR (ID2) tire pressure information signal
      TPMS RL (ID3) tire pressure information signal
      TPMS RR (ID4) tire pressure information signal
      TPMS SP (ID5) tire pressure information signal
      TPMS FL (ID1) tire indicator information 0 signal
      TPMS FR (ID2) tire indicator information 0 signal
      TPMS RL (ID3) tire indicator information 0 signal
      TPMS RR (ID4) tire indicator information 0 signal
      TPMS SP (ID5) tire indicator information 0 signal
      TPMS indicator number information 0 signal
      TPMS unit information 0 signal
      TPMS display request bit 0 signal
      TPMS variation signal
      AWD control*4 Displayed Input CAN Drivetrain information signal Hybrid vehicle control ECU assembly A2, B3
      Request data with AWD display signal
      FR composition with AWD display signal
      FL composition with AWD display signal
      FL composition with AWD display signal
      RL composition with AWD display signal
      Steering signal Steering sensor
      Sway warning Displayed Input CAN SWS rest advisory display signal Forward recognition camera A2, B3
      G monitor*6 Displayed Input CAN GL1, GX error signal Yaw rate sensor assembly B3
      GL2, GY error signal
      GL1, GX invalidation/validation signal
      GL2, GY invalidation/validation signal
      GL1, GX sensor signal
      GL2, GY sensor signal
      Sensor type identification signal
      G sensor zero point un-corrected status signal Skid control ECU assembly
      GL1 zero point value signal
      GL2 zero point value signal
      Data continuity (valid/invalid) flag signal Steering sensor
      Sensor error signal
      Steering signal
      Memorized zero point value inside steering angle sensor signal
      Zero point memory invalid/valid inside sensor signal
      Pressure of master cylinder error flag signal Skid control ECU assembly
      Pressure of master cylinder invalid flag signal
      Pressure of master cylinder signal
      Event-data-recorder ENG03 signal Hybrid vehicle control ECU assembly
      Direct line Change switch signal Steering pad switch assembly
      Units change*6 Displayed Input Direct line Change switch signal Steering pad switch assembly A2, B3
      Other (Blank) Displayed - - - - A2, B3

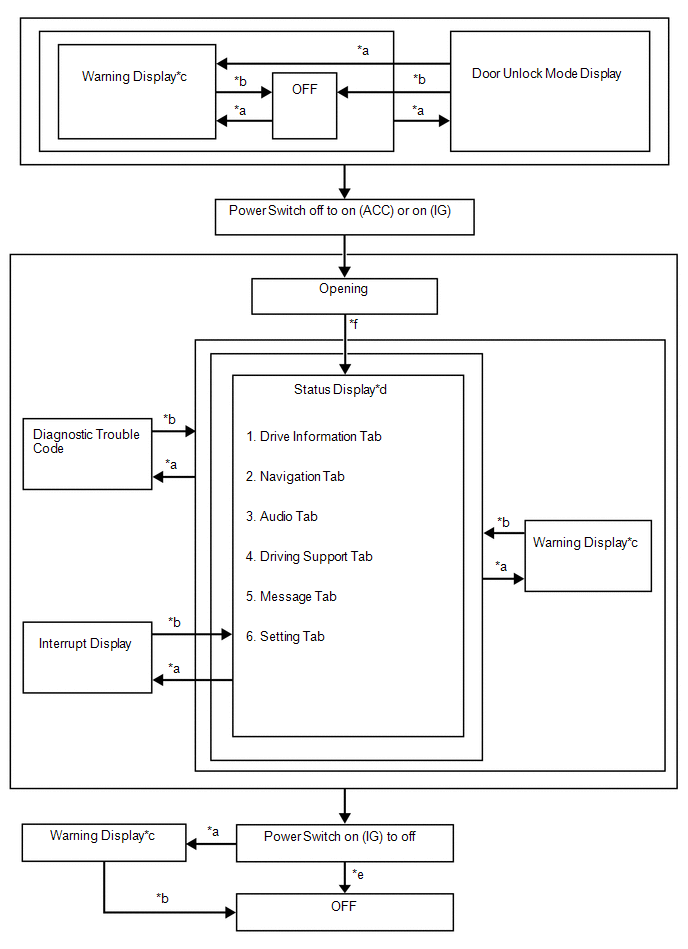

      Drive information tab Displayed - - - - A3, B11
      Navigation tab*5 Displayed Input Local bus/Video signal (Digital) Navigation signal Radio receiver assembly A3, B11
      Audio tab Displayed Input Local bus/Video signal (Digital)*5 Audio signal Radio receiver assembly A3, B11
      Driving support tab Displayed Input CAN LDW existence flag signal Forward recognition camera A3, B11
      Message tab Displayed - - - - A3, B11
      Setting tab Displayed - - - - A3, B11
      Shift position Displayed Input CAN Shift position P signal Hybrid vehicle control ECU assembly A4, B5
      Shift position R signal
      Shift position N signal
      Shift position D signal
      Shift gear signal
      Sports mode indicator signal
      SPORT indicator*10 Displayed Input CAN Integrated sport mode indicator signal Hybrid vehicle control ECU assembly A4, B10
      Drive mode select signal
      SPORT S indicator*11 Displayed Input CAN Integrated sport mode signal Hybrid vehicle control ECU assembly A4, B10
      Drive mode select signal
      SPORT S+ indicator*11 Displayed Input CAN AVS (TEMS) light signal Absorber control ECU A4, B10
      Integrated sport mode signal Hybrid vehicle control ECU assembly
      Drive mode select signal
      ECO indicator Displayed Input CAN Eco mode indicator signal Hybrid vehicle control ECU assembly A4, B10
      Drive mode select signal
      EV mode indicator light Displayed Input CAN EV mode message signal Hybrid vehicle control ECU assembly A4, B7
      Cruise control indicator light (Constant speed control mode) Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU assembly A4, B2
      Cruise control indicator light (Vehicle-to-vehicle distance control mode) Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU assembly A4, B2
      Cruise SET indicator light Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU assembly A4, B2
      LKA/LDA indicator light Displayed Input CAN Indicator display signal Forward recognition camera A4, B2
      Outside temperature Displayed Input CAN Ambient temperature display signal Air conditioning amplifier assembly A3, B1
      Ambient temperature display whole number/decimal (0/0.5°C) signal
      Icy warning light Displayed Input CAN Ready signal Hybrid vehicle control ECU assembly A3, B1
      Vehicle speed (SP1) signal Skid control ECU assembly
      Ambient temperature display signal Air conditioning amplifier assembly
      Ambient temperature display whole number/decimal (0/0.5°C) signal
      Clock Displayed Input Direct line Steering pad switch signal Steering pad switch assembly A3, B2
      Phone (Received call) Displayed Input Local bus/Video signal (Digital)*5 Phone (Received call) signal Radio receiver assembly A2, B3
      Turn-by-turn Navigation*5 Displayed Input Local bus/Video signal (Digital) Turn-by-turn signal Radio receiver assembly A2, B3
      Cruise control set speed Displayed Input CAN Control vehicle speed signal Hybrid vehicle control ECU assembly A2, B3
      Control vehicle speed unit signal
      REV indicator*6 Displayed Input CAN Engine RPM data signal Hybrid vehicle control ECU assembly B9
      REV peak*6 Displayed Input CAN Engine RPM data signal Hybrid vehicle control ECU assembly B9
      ACCESSORY Displayed Input CAN Display request of vehicle mode signal Certification ECU (Smart key ECU assembly) A1, B8
      IGNITION ON Displayed Input CAN Display request of vehicle mode signal Certification ECU (Smart key ECU assembly) A1, B8
      Suggestion function Displayed Input CAN Proposal service request 1 signal Main body ECU (Multiplex network body ECU) A2, B3
      Proposal service request 2 signal
      Proposal service request 3 signal
      Back door lock information signal
      Power window inoperative advice signal
      Direct line Steering pad switch signal Steering pad switch assembly
      - Output CAN Proposal service response 1 signal Main body ECU (Multiplex network body ECU)
      Proposal service response 2 signal
      Proposal service response 3 signal
      PBD ON/OFF SW operation signal
      AWD TEST MODE*4 Displayed Input CAN AWD warning ON and flashing request signal Hybrid vehicle control ECU assembly A2, B3
      2WD MAINTENANCE MODE Displayed Input CAN Check mode 1 signal Hybrid vehicle control ECU assembly A2, B3
      AWD MAINTENANCE MODE*4 Displayed Input CAN Check mode 3 signal Hybrid vehicle control ECU assembly A2, B3
      2WD CERTIFICATION MODE Displayed Input CAN Check mode 2 signal Hybrid vehicle control ECU assembly A2, B3
      AWD CERTIFICATION MODE*4 Displayed Input CAN Check mode 4 signal Hybrid vehicle control ECU assembly A2, B3
      ACTIVE STABILIZER SUSPENSION TEST MODE Displayed Input CAN Active stabilizer front warning light signal Absorber control ECU A2, B3
      ADJUSTING LDA CAMERA Displayed Input CAN Camera adjustment mode text display signal Forward recognition camera A2, B3
      ADJUSTING FRONT RADAR BEAM Displayed Input CAN Inspection mode for ACC signal Driving support ECU assembly A2, B3
      FRD adjustment signal
      ERROR ADJUSTING FRONT RADAR BEAM Displayed Input CAN FRD adjustment signal Driving support ECU assembly A2, B3
      ADJUSTING FRONT RADAR BEAM VERTICAL Displayed Input CAN FRD adjustment signal Driving support ECU assembly A2, B3
      ADJUSTING FRONT RADAR BEAM HORIZONTAL Displayed Input CAN FRD adjustment signal Driving support ECU assembly A2, B3
      CHECKING PRE-CRASH BRAKE Displayed Input CAN Inspection mode signal Driving support ECU assembly A2, B3
      CHECKING CRUISE CONTROL BRAKE Displayed Input CAN Inspection mode for ACC signal Driving support ECU assembly A2, B3
      WRITE ZERO-POINT OF STEERING ANGLE*9 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly A2, B3
      END OF ADJUSTMENT*9 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly A2, B3
      MEMORY ERROR*9 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly A2, B3
      Headlight System Uninitialized Visit Your Dealer*2 Displayed Input CAN LED headlight indicator signal Headlight ECU sub-assembly LH A2, B3
      BRAKE! Displayed Input CAN PCS warning message signal Driving support ECU assembly A2, B3
      Push and Hold Power Switch for Emergency Stop Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B3
      Shift to N and Press Power Switch to Restart Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B3
      Hybrid System Stopped Shift to P Displayed Input CAN Ready signal Hybrid vehicle control ECU assembly A2, B3
      Shift position P signal
      Shift position N signal
      Vehicle speed (SP1) signal Skid control ECU assembly
      Hybrid System Stopped Stop in a Safe Place Displayed Input CAN Ready signal Hybrid vehicle control ECU assembly A2, B3
      Shift position P signal
      Shift position N signal
      Vehicle speed (SP1) signal Skid control ECU assembly
      Dynamic radar cruise control or LKA/LDA warning reminder indicator Displayed Input CAN White line symbol left side signal Forward recognition camera A2, B3
      White line symbol right side signal
      ACC display ID2 signal Hybrid vehicle control ECU assembly
      Braking Power Low Stop in a Safe Place See Owner's Manual Displayed Input CAN Brake warning light control flag signal Skid control ECU assembly A2, B3
      Switch to Brake*9 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly A2, B3
      BRAKE!*9 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly A2, B3
      Object Detected Acceleration Reduced*9 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly A2, B3
      Accelerator Stuck Depress Brake to Stop Displayed Input CAN BOS multi-information request signal Hybrid vehicle control ECU assembly A2, B3
      Shift to P Before Exiting Vehicle Displayed Input CAN NDB warning signal Hybrid vehicle control ECU assembly A2, B3
      Hybrid System Malfunction Do Not Be Towed Displayed Input CAN Towing warning signal Hybrid vehicle control ECU assembly A2, B3
      Shift to P Before Exiting Vehicle Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B3
      Each door open (vehicle being driven) (image display) Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) A2, B3
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Back door courtesy switch signal
      Hood courtesy switch signal
      Steering wheel signal
      Vehicle speed (SP1) signal Skid control ECU assembly
      Each door open (vehicle stopped, power switch on (IG)) (image display) Displayed Input CAN Driver door open display signal Certification ECU (Smart key ECU assembly) A2, B3
      Front passenger door open display signal
      Rear right open display signal
      Rear left open display signal
      Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Back door courtesy switch signal
      Hood courtesy switch signal
      Steering wheel signal
      Clearance sonar detection (image display)*9 Displayed Input CAN Combination meter display request signal Clearance warning ECU assembly A2, B3
      Sensor DIAG request signal
      Front left area information signal
      Front right area information signal
      Front center area information signal
      Rear left area information signal
      Rear right area information signal
      Rear center area information signal
      Parking Assist Malfunction*9 Displayed Input CAN Sensor DIAG request signal Clearance warning ECU assembly A2, B3
      Clean Parking Assist Sensor*9 Displayed Input CAN Sensor DIAG request signal Clearance warning ECU assembly A2, B3
      Please Wait Now Opening*13 Displayed Input Direct line Fuel lid signal ECM assembly A2, B3
      Refuel Ready*13 Displayed Input Direct line Fuel lid signal ECM assembly A2, B3
      Close Fuel Lid*13 Displayed Input Direct line Fuel lid signal ECM assembly A2, B3
      Power Turned Off to Save Battery Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B3
      Shift to P Before Exiting Vehicle Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B3
      Shift Is in N Release Accelerator Before Shifting Displayed Input CAN Depress the accelerator in N position signal Hybrid vehicle control ECU assembly A2, B3
      Depress Brake when Vehicle Is Stopped Hybrid System May Overheat Displayed Input CAN Accelerator hold caution signal Hybrid vehicle control ECU assembly A2, B3
      Hybrid Battery Low Hybrid System Stopped Shift to P and Restart Displayed Input CAN HV battery low voltage warning ID signal Hybrid vehicle control ECU assembly A2, B3
      HV battery charge request warning signal
      HV battery low voltage warning signal
      Hybrid System Malfunction Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Greatly Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 0.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 0.3 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 1.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 0.6 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 1.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 0.9 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 2.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 1.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 5.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 3.1 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 10 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 6.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Reduced Output Power Avoid Shifting to N Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Avoid Shifting to N Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Hybrid System Stopped Stop in a Safe Place Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid System Malfunction Shift to P See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Greatly Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 0.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 0.3 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 1.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 0.6 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 1.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 0.9 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 2.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 1.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 5.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 3.1 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 10 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 6.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Reduced Output Power Avoid Shifting to N Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Avoid Shifting to N Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Hybrid System Stopped Stop in a Safe Place Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Check Engine Shift to P See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Greatly Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 0.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 0.3 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 1.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 0.6 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 1.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 0.9 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 2.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 1.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 5.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 3.1 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 10 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 6.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Reduced Output Power Avoid Shifting to N Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Avoid Shifting to N Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Hybrid System Stopped Stop in a Safe Place Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Shift to P See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Greatly Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 0.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 0.3 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 1.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 0.6 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 1.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 0.9 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 2.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 1.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 5.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 3.1 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 10 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 6.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Reduced Output Power Avoid Shifting to N Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Avoid Shifting to N Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Hybrid System Stopped Stop in a Safe Place Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Accelerator System Malfunction Shift to P See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU assembly A2, B3
      HV system malfunction indication signal
      Hybrid Battery Low Shift Out of N to Recharge Displayed Input CAN HV battery low voltage warning ID signal Hybrid vehicle control ECU assembly A2, B3
      HV battery charge request warning signal
      HV battery low voltage warning signal
      Power Steering Malfunction Steering Power Low Visit Your Dealer Displayed Input CAN Multi-information request signal Power steering ECU assembly A2, B3
      Steering Power Low Visit Your Dealer Displayed Input CAN Multi-information request signal Power steering ECU assembly A2, B3
      Power Steering Malfunction Visit Your Dealer Displayed Input CAN Multi-information request signal Power steering ECU assembly A2, B3
      Release Parking Brake Displayed Input Direct line EPB warning 2 signal Skid control ECU assembly A2, B3
      Vehicle May Roll Shift to P Displayed Input Direct line EPB warning 2 signal Skid control ECU assembly A2, B3
      Brake Hold Fault Depress Brake to Deactivate Visit Your Dealer Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Brake Hold Warning Depress Brake on Slope Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Wiper System Malfunction Visit Your Dealer Displayed Input CAN Wiper fault signal Main body ECU (Multiplex network body ECU) A2, B3
      EPB Activation Stopped Incompletely Displayed Input Direct line EPB warning 2 signal Skid control ECU assembly A2, B3
      Key Not Detected Check Key Location Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B3
      Release Parking Brake while Depressing Brake Displayed Input Direct line EPB warning 2 signal Skid control ECU assembly A2, B3
      Release Accelerator Displayed Input CAN GOS multi-information request signal Hybrid vehicle control ECU assembly A2, B3
      Lane Departure Alert Driver Attention Required Displayed Input CAN Request for driver action display signal Forward recognition camera A2, B3
      Lane Keeping Assist Driver Attention Required Displayed Input CAN Request for driver action display signal Forward recognition camera A2, B3
      LDA Hold Steering Wheel Displayed Input CAN Hands free caution text display signal Forward recognition camera A2, B3
      LKA Hold Steering Wheel Displayed Input CAN Hands free caution text display signal Forward recognition camera A2, B3
      LDA Steering Assist Unavailable Hold Steering Wheel Displayed Input CAN Hands free caution text display signal Forward recognition camera A2, B3
      LKA Steering Assist Unavailable Hold Steering Wheel Displayed Input CAN Hands free caution text display signal Forward recognition camera A2, B3
      LDA Hold Steering Wheel Displayed Input CAN Hands free caution text display signal Forward recognition camera A2, B3
      LKA Hold Steering Wheel Displayed Input CAN Hands free caution text display signal Forward recognition camera A2, B3
      Parking Brake Overheated Parking Brake Unavailable Displayed Input Direct line EPB warning 2 signal Skid control ECU assembly A2, B3
      Check Engine Visit Your Dealer Displayed Input CAN Engine malfunction message signal ECM assembly A2, B3
      Check Engine Reduced Engine Power Visit Your Dealer Displayed Input CAN Engine malfunction message signal ECM assembly A2, B3
      Reduced Engine Power Visit Your Dealer Displayed Input CAN Engine malfunction message signal ECM assembly A2, B3
      SRS Airbag System Malfunction Visit Your Dealer Displayed Input CAN Airbag warning light control request signal Airbag sensor assembly A2, B3
      Antilock Brake System Malfunction Visit Your Dealer Displayed Input CAN ABS warning light control flag signal Skid control ECU assembly A2, B3
      Engine Coolant Temp High Stop in a Safe Place See Owner's Manual Displayed Input CAN Engine coolant temperature signal ECM assembly A2, B3
      Charging System Malfunction See Owner's Manual Displayed Input CAN Charge light indicator signal ECM assembly A2, B3
      Radar Cruise Control Unavailable Clean Sensor Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU assembly A2, B3
      Radar Cruise Control Unavailable Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU assembly A2, B3
      Radar Cruise Control Unavailable Depress Brake to Resume Driving Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU assembly A2, B3
      Access System with Elec. Key Malfunction See Owner's Manual Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B3
      Blind Spot Monitor Unavailable Displayed Input CAN BSD module status signal Blind spot monitor sensor LH A2, B3
      Cruise Control Malfunction Visit Your Dealer Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU assembly A2, B3
      Cruise Control Fault Press Brake to Deactivate Visit Your Dealer Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU assembly A2, B3
      Lane Departure Alert Malfunction Visit Your Dealer Displayed Input CAN Fault condition text display signal Forward recognition camera A2, B3
      Lane Keeping Assist Malfunction Visit Your Dealer Displayed Input CAN Fault condition text display signal Forward recognition camera A2, B3
      Forward Camera System Unavailable Displayed Input CAN PCS temperature message (Camera) signal Driving support ECU assembly A2, B3
      Lane Departure Alert Unavailable Displayed Input CAN Steering assist unusable text display signal Forward recognition camera A2, B3
      Lane Keeping Assist Unavailable Displayed Input CAN Steering assist unusable text display signal Forward recognition camera A2, B3
      Lane Departure Alert Turned On Steering Assist Active Displayed Input CAN LKA mode text display signal Forward recognition camera A2, B3
      Lane Keeping Assist Turned On Steering Assist Active Displayed Input CAN LKA mode text display signal Forward recognition camera A2, B3
      Lane Departure Alert Turned On Steering Assist Inactive Displayed Input CAN LKA mode text display signal Forward recognition camera A2, B3
      Lane Keeping Assist Turned On Steering Assist Inactive Displayed Input CAN LKA mode text display signal Forward recognition camera A2, B3
      Forward Camera System Unavailable Clean Windshield Displayed Input CAN PCS dust message (Camera) signal Driving support ECU assembly A2, B3
      Pre-Collision System Malfunction Visit Your Dealer Displayed Input CAN PCS fault condition text display signal Driving support ECU assembly A2, B3
      Blind Spot Monitor System Malfunction Visit Your Dealer Displayed Input CAN BSD module status signal Blind spot monitor sensor LH A2, B3
      Oil Pressure Low Stop in a Safe Place See Owner's Manual Displayed Input CAN Engine RPM data signal ECM assembly A2, B3
      Oil pressure light lighting prohibition signal Hybrid vehicle control ECU assembly
      Direct line Engine oil pressure signal Engine oil pressure switch assembly
      AWD System Malfunction 2WD Mode Engaged Visit Your Dealer*4 Displayed Input CAN AWD warning ON and flashing request signal Hybrid vehicle control ECU assembly A2, B3
      Braking Power Low Visit Your Dealer Displayed Input CAN ECB warning light control flag signal Skid control ECU assembly A2, B3
      Parking Brake Unavailable Displayed Input Direct line EPB warning 2 signal Skid control ECU assembly A2, B3
      Electronic Parking Brake Malfunction Visit Your Dealer Displayed Input Direct line EPB warning 2 signal Skid control ECU assembly A2, B3
      Radar Cruise Active Please Pay Attention to Other Vehicles Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU assembly A2, B3
      Lane Departure Alert Unavailable Below Approx 50km/h Displayed Input CAN Speed condition failure text display signal Forward recognition camera A2, B3
      Lane Keeping Assist Unavailable Below Approx 50km/h Displayed Input CAN Speed condition failure text display signal Forward recognition camera A2, B3
      Lane Departure Alert Unavailable Below Approx 32MPH Displayed Input CAN Speed condition failure text display signal Forward recognition camera A2, B3
      Lane Keeping Assist Unavailable Below Approx 32MPH Displayed Input CAN Speed condition failure text display signal Forward recognition camera A2, B3
      Lane Departure Alert Unavailable at Current Speed Displayed Input CAN Speed condition failure text display signal Forward recognition camera A2, B3
      Lane Keeping Assist Unavailable at Current Speed Displayed Input CAN Speed condition failure text display signal Forward recognition camera A2, B3
      Dynamic radar cruise control or LKA/LDA indicator Displayed Input CAN White line symbol left side signal Forward recognition camera A2, B3
      White line symbol right side signal
      Steering wheel symbol signal
      ACC display ID2 signal Hybrid vehicle control ECU assembly
      Hybrid System Stopped Steering Power Low Displayed Input CAN Multi-information request signal Power steering ECU assembly A2, B3
      Turn Off Vehicle Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B3
      Would You Like to Take a Rest? Displayed Input CAN SWS rest advisory display signal Forward recognition camera A2, B3
      Please Take a Rest Displayed Input CAN SWS rest advisory display signal Forward recognition camera A2, B3
      Key Left inside Vehicle Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) A2, B3
      Turn Lights Off*8 Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) A2, B3
      Lighting system state signal
      Moon Roof Open*1 Displayed Input CAN Slide roof open warning request signal Main body ECU (Multiplex network body ECU) A2, B3
      Window Open Displayed Input CAN Power window open warning request signal Main body ECU (Multiplex network body ECU) A2, B3
      Window / Moon Roof Open*1 Displayed Input CAN Slide roof open warning request signal Main body ECU (Multiplex network body ECU) A2, B3
      Power window open warning request signal
      Depress Brake and Then Touch Key to Power Switch Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B3
      Depress Brake and Power to Start Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) A2, B3
      Steering Wheel Lock Press Power Switch while Turning Wheel Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B3
      To Start Vehicle, Put Shift Lever into P Displayed Input CAN P position requirement signal Hybrid vehicle control ECU assembly A2, B3
      Shift position N signal
      Brake Hold Malfunction Visit Your Dealer Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Brake Hold Less Effective during Icy Conditions Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Brake Hold Active Depress Brake and Switch to Deactivate Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Brake Hold Unavailable Driver Door Open Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Brake Hold Unavailable Driver Seat Belt Unbuckled Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Brake Hold Unavailable Hood or Trunk Open Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Depress Brake to Maintain Brake Hold Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Close Driver Door to Maintain Brake Hold Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Fasten Driver Seat Belt to Maintain Brake Hold Displayed Input CAN Brake hold information control flag signal Skid control ECU assembly A2, B3
      Parking Brake Activated Release before Driving Displayed Input Direct line EPB warning 2 signal Skid control ECU assembly A2, B3
      AWD System Overheated 2WD Mode Engaged*4 Displayed Input CAN AWD warning ON and flashing request signal Hybrid vehicle control ECU assembly A2, B3
      AWD System Overheated Switching to 2WD Mode*4 Displayed Input CAN AWD warning ON and flashing request signal Hybrid vehicle control ECU assembly A2, B3
      Drive-Start Control Malfunction Visit Your Dealer Displayed Input CAN GOS multi-information request signal Hybrid vehicle control ECU assembly A2, B3
      ICS Malfunction Visit Your Dealer*9 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly A2, B3
      Brake Override Malfunction Visit Your Dealer Displayed Input CAN BOS multi-information request signal Hybrid vehicle control ECU assembly A2, B3
      Key Battery Low Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B3
      Engine Oil Level Low Add or Replace Displayed Input CAN Engine RPM data signal ECM assembly A2, B3
      Engine coolant temperature signal
      Direct line Engine oil level signal Engine oil level sensor
      Hybrid System Overheated Reduced Output Power Displayed Input CAN Motor inverter high temperature warning ID signal Hybrid vehicle control ECU assembly A2, B3
      Motor inverter high temperature warning signal
      Headlight System Malfunction Visit Your Dealer Displayed Input CAN AFS OFF indicator request signal*7 Headlight ECU sub-assembly LH A2, B3
      Headlight leveling indicator signal*2
      LED headlight indicator signal*2
      LED headlight indicator signal*3 Main body ECU (Multiplex network body ECU)
      Smart beam indicator signal
      Proximity Notification System Malfunction Visit Your Dealer Displayed Input Direct line Vehicle proximity notification system signal Vehicle approaching speaker controller A2, B3
      Active Suspension Malfunction Visit Your Dealer Displayed Input CAN Active stabilizer front warning light signal Absorber control ECU A2, B3
      Accelerator and Brake Pedals Depressed Simultaneously Displayed Input CAN BOS multi-information request signal Hybrid vehicle control ECU assembly A2, B3
      Tire pressure indicator (image display) Displayed Input CAN TPMS display request bit 0 signal Main body ECU (Multiplex network body ECU) A2, B3
      Aux Battery Low See Owner's Manual Displayed Input CAN Sub battery low voltage flag signal Hybrid vehicle control ECU assembly A2, B3
      Windshield Washer Fluid Low Displayed Input Direct line Washer fluid level signal Level warning switch assembly A2, B3
      Fuel Low Displayed Input CAN Fuel level signal Fuel sender gauge assembly A2, B3
      - Output CAN Request GS search signal Radio receiver assembly*5
      Roads May Be Icy Drive with Care Displayed Input CAN Ready signal Hybrid vehicle control ECU assembly A2, B3
      Vehicle speed (SP1) signal Skid control ECU assembly
      Ambient temperature display signal Air conditioning amplifier assembly
      Ambient temperature display whole number/decimal (0/0.5°C) signal
      Traction Control Turned Off Displayed Input CAN Traction control off light signal Skid control ECU assembly A2, B3
      Oil Maintenance Required Soon Displayed Input CAN Oil change indicator 2 signal ECM assembly A2, B3
      Maintenance Required Soon*14 Displayed Input CAN Oil change indicator signal ECM assembly A2, B3
      Oil Maintenance Required Visit Your Dealer Displayed Input CAN Oil change indicator 2 signal ECM assembly A2, B3
      Maintenance Required Visit Your Dealer*14 Displayed Input CAN Oil change indicator signal ECM assembly A2, B3
      To Activate Auto High Beam, Switch Headlights to High Beam Displayed Input CAN Smart beam advice signal Main body ECU (Multiplex network body ECU) A2, B3
      A New Key has been Registered Contact Your Dealer for Details Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B3
      Depress Brake and Power to Start Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B3
      VSC Turned Off Pre-Collision Brake System Unavailable Displayed Input CAN PB temporary unusable condition text display signal Driving support ECU assembly A2, B3
      VSC OFF light signal Skid control ECU assembly
      Pre-Collision System Unavailable Displayed Input CAN PCS temporary unusable condition text display signal Driving support ECU assembly A2, B3
      ICS Unavailable*9 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly A2, B3
      High Power Consumption Partial Limit On AC/Heater Operation Displayed Input CAN A/C load limitation warning signal Air conditioning amplifier assembly A2, B3
      Pre-Collision System Unavailable Displayed Input CAN PCS temperature message (Radar) signal Driving support ECU assembly A2, B3
      Pre-Collision System Unavailable Clean Sensor Displayed Input CAN PCS dust message (Radar) signal Driving support ECU assembly A2, B3
      Pre-Collision System Off Displayed Input CAN PCS warning message signal Driving support ECU assembly A2, B3
      PCS warning distance unusable condition text display signal
      PCS distance warning signal
      PCS ped warning signal
      PCS preceding vehicle start notification signal
      EV Mode Unavailable Displayed Input CAN EV mode message signal Hybrid vehicle control ECU assembly A2, B3
      EV Mode Unavailable System Warming Up Displayed Input CAN EV mode message signal Hybrid vehicle control ECU assembly A2, B3
      EV Mode Unavailable Hybrid Battery Low Displayed Input CAN EV mode message signal Hybrid vehicle control ECU assembly A2, B3
      EV Mode Unavailable Speed Range Exceeded Displayed Input CAN EV mode message signal Hybrid vehicle control ECU assembly A2, B3
      EV Mode Unavailable Reduce Acceleration to Activate Displayed Input CAN EV mode message signal Hybrid vehicle control ECU assembly A2, B3
      EV Mode Deactivated Displayed Input CAN EV mode message signal Hybrid vehicle control ECU assembly A2, B3
      EV Mode Deactivated Hybrid Battery Low Displayed Input CAN EV mode message signal Hybrid vehicle control ECU assembly A2, B3
      EV mode Deactivated Speed Range Exceeded Displayed Input CAN EV mode message signal Hybrid vehicle control ECU assembly A2, B3
      EV Mode Deactivated Accelerator Depressed Too Far Displayed Input CAN EV mode message signal Hybrid vehicle control ECU assembly A2, B3
      Automatic Mode On Shift Operation Sets or Releases Parking Brake Displayed Input Direct line EPB warning 2 signal Skid control ECU assembly A2, B3
      Automatic Mode Off Displayed Input Direct line EPB warning 2 signal Skid control ECU assembly A2, B3
      Each door open (vehicle stopped, power switch off) Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) A2, B3
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Back door courtesy switch signal
      Hood courtesy switch signal
      Steering wheel signal
      1. *1: w/ Sliding Roof System or Panoramic Moon Roof System
      2. *2: w/ Automatic Headlight Beam Level Control System
      3. *3: w/o Automatic Headlight Beam Level Control System
      4. *4: for AWD
      5. *5: w/ Navigation System
      6. *6: for TFT Meter Type
      7. *7: w/ AFS (Adaptive Front-lighting System)
      8. *8: w/ Light Reminder Warning
      9. *9: w/ Intelligent Clearance Sonar System
      10. *10: w/o Adaptive Variable Suspension System
      11. *11: w/ Adaptive Variable Suspension System
      12. *12: w/ Manual (SOS) Switch
      13. *13: w/ Fuel Lid Opener System
      14. *14: w/ Scheduled Maintenance Required Reminder
    4. Buzzer
      Item Condition Input/Output Communication line Signal Component
      Ready buzzer Sounds once Input CAN Ready buzzer signal Hybrid vehicle control ECU assembly
      Seat belt warning (for Driver side) buzzer Sounds intermittently (Maximum 5 times) Input CAN Driver seat belt buckle switch signal Main body ECU (Multiplex network body ECU)
      Sounds once/Sounds intermittently Input CAN Driver seat buckle switch signal Main body ECU (Multiplex network body ECU)
      Parking brake switch signal
      Shift position P signal Hybrid vehicle control ECU assembly
      Shift position R signal
      Restart while driving notification buzzer Sounds continuously Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Power switch operation while driving warning buzzer Sounds intermittently Input CAN Buzzer request signal Certification ECU (Smart key ECU assembly)
      VSC warning buzzer Sounds intermittently Input CAN Buzzer control flag signal Skid control ECU assembly
      Seat belt warning (for Front passenger side) buzzer Sounds once/Sounds intermittently Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Shift position P signal Hybrid vehicle control ECU assembly
      Shift position R signal
      Front passenger seat occupant detection status signal Airbag sensor assembly
      Front passenger seat belt buckle switch detection status signal
      Seat belt warning (for Rear seat) buzzer Sounds intermittently Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Vehicle speed (SP1) signal Skid control ECU assembly
      Shift position P signal Hybrid vehicle control ECU assembly
      Shift position R signal
      Direct line Rear left seat belt buckle switch signal Rear seat inner belt assembly LH
      Rear center seat belt buckle switch signal Rear center seat inner belt assembly
      Rear right seat belt buckle switch signal Rear seat 3 point type belt assembly LH
      Lane departure alert cancel buzzer Sounds twice Input CAN Lane departure alert cancel buzzer signal Forward recognition camera
      Emergency stop buzzer Sounds continuously Input CAN Buzzer request signal Certification ECU (Smart key ECU assembly)
      Vehicle roll-away notification buzzer Sounds once/Sounds intermittently Input CAN Shift position P signal Hybrid vehicle control ECU assembly
      Shift position N signal
      Ready signal
      Vehicle speed (SP1) signal Skid control ECU assembly
      Brake control system power low warning buzzer Sounds intermittently Input CAN Buzzer control flag signal Skid control ECU assembly
      Oil pressure warning buzzer Sounds intermittently Input CAN Ready signal Hybrid vehicle control ECU assembly
      Oil pressure light lighting prohibition signal
      Direct line Engine oil pressure signal Engine oil pressure switch assembly
      EPS warning buzzer Sounds once/Sounds intermittently Input CAN Demand buzzer to meter signal Power steering ECU assembly
      Lane departure alert warning buzzer Sounds intermittently Input CAN LDW buzzer signal Forward recognition camera
      Engine coolant temperature warning buzzer Sounds once Input CAN Engine coolant temperature signal ECM assembly
      Smart key warning buzzer Sounds intermittently Input CAN Meter buzzer intermittence request signal Certification ECU (Smart key ECU assembly)
      Sounds intermittently (Maximum 9 times) Input CAN Meter buzzer intermittent request (0.7 sec. cycle) signal
      Sounds once Input CAN Meter buzzer single-shot request signal
      Sounds continuously Input CAN Meter buzzer continuation request signal
      NDB warning signal Hybrid vehicle control ECU assembly
      P shift operation advice buzzer Sounds once Input CAN Buzzer request signal Certification ECU (Smart key ECU assembly)
      Brake control system temperature warning buzzer Sounds intermittently Input CAN Buzzer control flag signal Skid control ECU assembly
      Hill-start assist control buzzer Sounds once Input CAN Buzzer control flag signal Skid control ECU assembly
      Sounds twice Input CAN Buzzer control flag signal Skid control ECU assembly
      Multi-information display warning buzzer Sounds once Input CAN Multi-information display warning signal Related ECUs
      Direct line
      Accelerator pedal depressed with shift position N buzzer Sounds continuously Input CAN Accelerator depressed in N position signal Hybrid vehicle control ECU assembly
      Accelerator hold warning buzzer Sounds continuously Input CAN Accelerator hold caution signal Hybrid vehicle control ECU assembly
      Hybrid control system warning buzzer Sounds continuously Input CAN HV system malfunction buzzer signal Hybrid vehicle control ECU assembly
      Sounds intermittently Input CAN HV system malfunction buzzer signal
      HV system malfunction notification signal
      Sounds once Input CAN HV system malfunction buzzer signal
      HV system malfunction notification signal
      Tow prohibition buzzer Sounds intermittently Input CAN Towing warning signal Hybrid vehicle control ECU assembly
      Hybrid battery low voltage buzzer Sounds continuously Input CAN HV battery low voltage warning ID signal Hybrid vehicle control ECU assembly
      HV battery low voltage warning signal
      Sounds intermittently Input CAN HV battery low voltage warning ID signal
      HV battery charge request warning signal
      Hybrid unit excessive heat notification buzzer Sounds once Input CAN Motor inverter high temperature warning ID signal Hybrid vehicle control ECU assembly
      Motor inverter high temperature warning signal
      Electric parking brake cancel buzzer Sounds twice Input CAN Brake hold information control flag signal Skid control ECU assembly
      Brake hold control non-cancellation warning buzzer Sounds twice Input CAN Brake hold information control flag signal Skid control ECU assembly
      Radar cruise control low speed cancel buzzer Sounds twice Input CAN Low speed cancel buzzer request signal Hybrid vehicle control ECU assembly
      Low speed range of the vehicle in front buzzer Sounds four times Input CAN Low speed zone leading vehicle lost buzzer signal Hybrid vehicle control ECU assembly
      Lane departure alert hands-free caution buzzer Sounds intermittently Input CAN Hands-free caution text display signal Forward recognition camera
      Immobiliser key identification completion buzzer Sounds once Input CAN Immobiliser key identification completion signal Certification ECU (Smart key ECU assembly)
      Driving with parking brake unreleased warning buzzer Sounds intermittently Input Direct line EPB warning 2 signal Skid control ECU assembly
      Driving with door open warning buzzer Sounds intermittently Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Back door courtesy switch signal
      Hood courtesy switch signal
      Vehicle speed (SP1) signal Skid control ECU assembly
      Unsteady driving alert buzzer Sounds twice Input CAN SWS buzzer request signal Forward recognition camera
      Sports shift reject buzzer Sounds twice Input CAN Reject buzzer signal Hybrid vehicle control ECU assembly
      EV reject buzzer Sounds twice Input CAN EV mode message signal Hybrid vehicle control ECU assembly
      Light reminder buzzer*2 Sounds continuously Input CAN Lighting system state signal Main body ECU (Multiplex network body ECU)
      Driver door courtesy switch signal
      Turn signal flasher buzzer Sounds intermittently Input CAN Flasher request signal Main body ECU (Multiplex network body ECU)
      PBD hazard request signal Multiplex network door ECU
      Hazard light activation request signal DCM (Telematics transceiver)*1
      Direct line LH turn signal switch signal Headlight dimmer switch assembly
      RH turn signal switch signal
      Hazard warning switch signal Radio receiver assembly (Hazard warning signal switch)
      1. *1: w/ Manual (SOS) Switch
      2. *2: w/ Light Reminder Warning
    5. Others
      Item Condition Input/Output Communication line Signal Component
      Meter illumination Illumination level Input CAN Illuminance data signal Main body ECU (Multiplex network body ECU)
      Auto dimmer signal
      Taillight request signal
      Parked condition signal
      Panel lighting request signal
      Direct line Illumination level signal Trip switch assembly
      - Output CAN Rheostat duty signal Related ECUs
      Lounge illumination off signal
      Tail cancel signal
      Direct line Illumination level output signal
  3. MULTI-INFORMATION DISPLAY FLOW CHART
    GTY674442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Conditions are met *b Conditions are not met
    *c If there are multiple display requests, items will be displayed in sequence *d Item or display is selected by operating the steering pad switch
    *e Odometer display is displayed for a certain period of time after the power switch is turned off *f After power switch is turned on (IG)
  4. DESCRIPTION OF WARNING DISPLAYS
    Priority System name/(Vehicle Function) Master Warning Light
    ◦: Comes on
    •: Blinks    		 Buzzer (*1) Display Level
    1 Hybrid control system - - AWD TEST MODE Caution
    - - 2WD MAINTENANCE MODE Caution
    - - AWD MAINTENANCE MODE Caution
    - - 2WD CERTIFICATION MODE Caution
    - - AWD CERTIFICATION MODE Caution
    Adaptive variable suspension system - - ACTIVE STABILIZER SUSPENSION TEST MODE Caution
    LKA/LDA system - - ADJUSTING LDA CAMERA Caution
    Dynamic radar cruise control system - - ADJUSTING FRONT RADAR BEAM Caution
    Pre-collision system - - ERROR ADJUSTING FRONT RADAR BEAM Caution
    - - ADJUSTING FRONT RADAR BEAM VERTICAL Caution
    - - ADJUSTING FRONT RADAR BEAM HORIZONTAL Caution
    - - CHECKING PRE-CRASH BRAKE Caution
    Dynamic radar cruise control system - - CHECKING CRUISE CONTROL BRAKE Caution
    Intelligent clearance sonar system - - WRITE ZERO-POINT OF STEERING ANGLE Caution
    - - END OF ADJUSTMENT Caution
    - - MEMORY ERROR Caution
    Lighting system - - Headlight System Uninitialized Visit Your Dealer Advisory
    Pre-collision system - - BRAKE! Warning
    Smart access system with push-button start • * Push and Hold Power Switch for Emergency Stop Warning
    • * Shift to N and Press Power Switch to Restart Caution
    (Vehicle roll-away warning) • * Hybrid System Stopped Shift to P Caution
    • * Hybrid System Stopped Stop in a Safe Place Caution
    2 Dynamic radar cruise control system - - Dynamic radar cruise control or LKA/LDA warning reminder indicator Warning
    LKA/LDA system
    Electronically controlled brake system • ◦ Braking Power Low Stop in a Safe Place See Owner's Manual Warning
    Intelligent clearance sonar system • ◦ Switch to Brake Caution
    • ◦ BRAKE! Caution
    • ◦ Object Detected Acceleration Reduced Caution
    Brake override system • ◦ Accelerator Stuck Depress Brake to Stop Caution
    Hybrid control system • * Shift to P Before Exiting Vehicle Caution
    ◦ * Hybrid System Malfunction Do Not Be Towed Caution
    Smart access system with push-button start • ◦ Shift to P Before Exiting Vehicle Caution
    3 (Each door warning (vehicle being driven)) • * Each door open (vehicle being driven) (image display) Caution
    (Each door warning (vehicle stopped, power switch on (IG)) - - Each door open (vehicle stopped) (image display) Caution
    Intuitive parking assist system (w/ Intelligent Clearance Sonar System) - - Clearance sonar detection (image display) Caution
    ◦ - Parking Assist Malfunction Caution
    ◦ - Clean Parking Assist Sensor Caution
    (Fuel lid opener system) - - Please Wait Now Opening Caution
    - - Refuel Ready Caution
    - - Close Fuel Lid Caution
    4 Smart access system with push-button start - - Power Turned Off to Save Battery Caution
    5 Smart access system with push-button start • * Shift to P Before Exiting Vehicle Caution
    6 Hybrid control system • * Shift Is in N Release Accelerator Before Shifting Caution
    • * Depress Brake when Vehicle Is Stopped Hybrid System May Overheat Caution
    • * Hybrid Battery Low Hybrid System Stopped Shift to P and Restart Caution
    7 Hybrid control system ◦ * Hybrid System Malfunction Visit Your Dealer Caution
    Hybrid System Malfunction Greatly Reduced Output Power Visit Your Dealer Caution
    Hybrid System Malfunction Reduced Output Power Visit Your Dealer Caution
    Hybrid System Malfunction Stop in a Safe Place See Owner's Manual Caution
    Hybrid System Malfunction Stop in a Safe Place within 0.5 km Caution
    Hybrid System Malfunction Stop in a Safe Place within 0.3 miles Caution
    Hybrid System Malfunction Stop in a Safe Place within 1.0 km Caution
    Hybrid System Malfunction Stop in a Safe Place within 0.6 miles Caution
    Hybrid System Malfunction Stop in a Safe Place within 1.5 km Caution
    Hybrid System Malfunction Stop in a Safe Place within 0.9 miles Caution
    Hybrid System Malfunction Stop in a Safe Place within 2.0 km Caution
    Hybrid System Malfunction Stop in a Safe Place within 1.2 miles Caution
    Hybrid System Malfunction Stop in a Safe Place within 5.0 km Caution
    Hybrid System Malfunction Stop in a Safe Place within 3.1 miles Caution
    Hybrid System Malfunction Stop in a Safe Place within 10 km Caution
    Hybrid System Malfunction Stop in a Safe Place within 6.2 miles Caution
    Hybrid System Malfunction Reduced Output Power Avoid Shifting to N Caution
    Hybrid System Malfunction Avoid Shifting to N Visit Your Dealer Caution
    Hybrid System Malfunction Hybrid System Stopped Stop in a Safe Place Caution
    Hybrid System Malfunction Shift to P See Owner's Manual Caution
    Check Engine Visit Your Dealer Caution
    Check Engine Greatly Reduced Output Power Visit Your Dealer Caution
    Check Engine Reduced Output Power Visit Your Dealer Caution
    Check Engine Stop in a Safe Place See Owner's Manual Caution
    Check Engine Stop in a Safe Place within 0.5 km Caution
    Check Engine Stop in a Safe Place within 0.3 miles Caution
    7 Hybrid control system ◦ * Check Engine Stop in a Safe Place within 1.0 km Caution
    Check Engine Stop in a Safe Place within 0.6 miles Caution
    Check Engine Stop in a Safe Place within 1.5 km Caution
    Check Engine Stop in a Safe Place within 0.9 miles Caution
    Check Engine Stop in a Safe Place within 2.0 km Caution
    Check Engine Stop in a Safe Place within 1.2 miles Caution
    Check Engine Stop in a Safe Place within 5.0 km Caution
    Check Engine Stop in a Safe Place within 3.1 miles Caution
    Check Engine Stop in a Safe Place within 10 km Caution
    Check Engine Stop in a Safe Place within 6.2 miles Caution
    Check Engine Reduced Output Power Avoid Shifting to N Caution
    Check Engine Avoid Shifting to N Visit Your Dealer Caution
    Check Engine Hybrid System Stopped Stop in a Safe Place Caution
    Check Engine Shift to P See Owner's Manual Caution
    Hybrid Battery System Malfunction Visit Your Dealer Caution
    Hybrid Battery System Malfunction Greatly Reduced Output Power Visit Your Dealer Caution
    Hybrid Battery System Malfunction Reduced Output Power Visit Your Dealer Caution
    Hybrid Battery System Malfunction Stop in a Safe Place See Owner's Manual Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 0.5 km Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 0.3 miles Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 1.0 km Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 0.6 miles Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 1.5 km Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 0.9 miles Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 2.0 km Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 1.2 miles Caution
    7 Hybrid control system ◦ * Hybrid Battery System Malfunction Stop in a Safe Place within 5.0 km Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 3.1 miles Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 10 km Caution
    Hybrid Battery System Malfunction Stop in a Safe Place within 6.2 miles Caution
    Hybrid Battery System Malfunction Reduced Output Power Avoid Shifting to N Caution
    Hybrid Battery System Malfunction Avoid Shifting to N Visit Your Dealer Caution
    Hybrid Battery System Malfunction Hybrid System Stopped Stop in a Safe Place Caution
    Hybrid Battery System Malfunction Shift to P See Owner's Manual Caution
    Accelerator System Malfunction Visit Your Dealer Caution
    Accelerator System Malfunction Greatly Reduced Output Power Visit Your Dealer Caution
    Accelerator System Malfunction Reduced Output Power Visit Your Dealer Caution
    Accelerator System Malfunction Stop in a Safe Place See Owner's Manual Caution
    Accelerator System Malfunction Stop in a Safe Place within 0.5 km Caution
    Accelerator System Malfunction Stop in a Safe Place within 0.3 miles Caution
    Accelerator System Malfunction Stop in a Safe Place within 1.0 km Caution
    Accelerator System Malfunction Stop in a Safe Place within 0.6 miles Caution
    Accelerator System Malfunction Stop in a Safe Place within 1.5 km Caution
    Accelerator System Malfunction Stop in a Safe Place within 0.9 miles Caution
    Accelerator System Malfunction Stop in a Safe Place within 2.0 km Caution
    Accelerator System Malfunction Stop in a Safe Place within 1.2 miles Caution
    Accelerator System Malfunction Stop in a Safe Place within 5.0 km Caution
    Accelerator System Malfunction Stop in a Safe Place within 3.1 miles Caution
    Accelerator System Malfunction Stop in a Safe Place within 10 km Caution
    Accelerator System Malfunction Stop in a Safe Place within 6.2 miles Caution
    Accelerator System Malfunction Reduced Output Power Avoid Shifting to N Caution
    Accelerator System Malfunction Avoid Shifting to N Visit Your Dealer Caution
    7 Hybrid control system ◦ * Accelerator System Malfunction Hybrid System Stopped Stop in a Safe Place Caution
    Accelerator System Malfunction Shift to P See Owner's Manual Caution
    • * Hybrid Battery Low Shift Out of N to Recharge Caution
    Power steering system •/◦ * Power Steering Malfunction Steering Power Low Visit Your Dealer Caution
    •/◦ * Steering Power Low Visit Your Dealer Caution
    ◦ * Power Steering Malfunction Visit Your Dealer Caution
    (Parking brake) • * Release Parking Brake Caution
    Electric parking brake system • ◦ Vehicle May Roll Shift to P Caution
    Wiper and washer system ◦ ◦ Wiper System Malfunction Visit Your Dealer Caution
    Electric parking brake system • ◦ EPB Activation Stopped Incompletely Caution
    Smart access system with push-button start - * Key Not Detected Check Key Location Caution
    Electric parking brake system - * Release Parking Brake while Depressing Brake Caution
    Drive start control system • ◦ Release Accelerator Caution
    8 LKA/LDA system ◦ * Lane Departure Alert Driver Attention Required Caution
    ◦ * Lane Keeping Assist Driver Attention Required Caution
    - - LDA Hold Steering Wheel Caution
    - - LKA Hold Steering Wheel Caution
    ◦ ◦ LDA Steering Assist Unavailable Hold Steering Wheel Caution
    ◦ ◦ LKA Steering Assist Unavailable Hold Steering Wheel Caution
    ◦ * LDA Hold Steering Wheel Caution
    ◦ * LKA Hold Steering Wheel Caution
    Electric parking brake system ◦ * Parking Brake Overheated Parking Brake Unavailable Caution
    9 SFI system ◦ ◦ Check Engine Visit Your Dealer Caution
    ◦ ◦ Check Engine Reduced Engine Power Visit Your Dealer Caution
    ◦ ◦ Reduced Engine Power Visit Your Dealer Caution
    Airbag system ◦ ◦ SRS Airbag System Malfunction Visit Your Dealer Caution
    Electronically controlled brake system - ◦ Antilock Brake System Malfunction Visit Your Dealer Caution
    SFI system ◦ * Engine Coolant Temp High Stop in a Safe Place See Owner's Manual Caution
    Charging system - - Charging System Malfunction See Owner's Manual Caution
    Dynamic radar cruise control system ◦ ◦ Radar Cruise Control Unavailable Clean Sensor Caution
    ◦ ◦ Radar Cruise Control Unavailable Caution
    - - Radar Cruise Control Unavailable Depress Brake to Resume Driving Caution
    Smart access system with push-button start ◦ * Access System with Elec. Key Malfunction See Owner's Manual Caution
    Blind spot monitor system ◦ ◦ Blind Spot Monitor Unavailable Caution
    Dynamic radar cruise control system ◦ ◦ Cruise Control Malfunction Visit Your Dealer Caution
    Cruise control system
    Dynamic radar cruise control system ◦ ◦ Cruise Control Fault Press Brake to Deactivate Visit Your Dealer Caution
    LKA/LDA system ◦ ◦ Lane Departure Alert Malfunction Visit Your Dealer Caution
    ◦ ◦ Lane Keeping Assist Malfunction Visit Your Dealer Caution
    Pre-collision system - - Forward Camera System Unavailable Caution
    LKA/LDA system ◦ ◦ Lane Departure Alert Unavailable Caution
    ◦ ◦ Lane Keeping Assist Unavailable Caution
    - - Lane Departure Alert Turned On Steering Assist Active Advisory
    - - Lane Keeping Assist Turned On Steering Assist Active Advisory
    - - Lane Departure Alert Turned On Steering Assist Inactive Advisory
    - - Lane Keeping Assist Turned On Steering Assist Inactive Advisory
    Pre-collision system - - Forward Camera System Unavailable Clean Windshield Caution
    ◦ ◦ Pre-Collision System Malfunction Visit Your Dealer Caution
    9 Blind spot monitor system ◦ ◦ Blind Spot Monitor System Malfunction Visit Your Dealer Caution
    (Engine oil pressure switch assembly) ◦ * Oil Pressure Low Stop in a Safe Place See Owner's Manual Caution
    Hybrid control system ◦ ◦ AWD System Malfunction 2WD Mode Engaged Visit Your Dealer Caution
    Electronically controlled brake system - ◦ Braking Power Low Visit Your Dealer Caution
    Electric parking brake system ◦ ◦ Parking Brake Unavailable Caution
    ◦ ◦ Electronic Parking Brake Malfunction Visit Your Dealer Caution
    Dynamic radar cruise control system - - Radar Cruise Active Please Pay Attention to Other Vehicles Caution
    LKA/LDA system - - Lane Departure Alert Unavailable Below Approx 50km/h Advisory
    - - Lane Keeping Assist Unavailable Below Approx 50km/h Advisory
    - - Lane Departure Alert Unavailable Below Approx 32MPH Advisory
    - - Lane Keeping Assist Unavailable Below Approx 32MPH Advisory
    - - Lane Departure Alert Unavailable at Current Speed Advisory
    - - Lane Keeping Assist Unavailable at Current Speed Advisory
    Electric parking brake system ◦ ◦ Brake Hold Fault Depress Brake to Deactivate Visit Your Dealer Caution
    • ◦ Brake Hold Warning Depress Brake on Slope Caution
    10 Dynamic radar cruise control system - - Dynamic radar cruise control or LKA/LDA indicator -
    LKA/LDA system
    Power steering system ◦ * Hybrid System Stopped Steering Power Low Caution
    Smart access system with push-button start •/- * Turn Off Vehicle Caution
    LKA/LDA system - * Would You Like to Take a Rest? Advisory
    - * Please Take a Rest Advisory
    Smart access system with push-button start - - Key Left inside Vehicle Caution
    Lighting system • * Turn Lights Off Caution
    Sliding roof system • ◦ Moon Roof Open Caution
    Panoramic moon roof system
    Power window control system • ◦ Window Open Caution
    Power window control system • ◦ Window / Moon Roof Open Caution
    Sliding roof system
    Panoramic moon roof system
    Smart access system with push-button start - * Depress Brake and Then Touch Key to Power Switch Caution
    - -/* Depress Brake and Power to Start Caution
    11 Steering lock system • * Steering Wheel Lock Press Power Switch while Turning Wheel Caution
    (Vehicle roll-away warning) • * To Start Vehicle, Put Shift Lever into P Caution
    Electric parking brake system ◦ ◦ Brake Hold Malfunction Visit Your Dealer Caution
    ◦ ◦ Brake Hold Less Effective during Icy Conditions Caution
    - * Brake Hold Active Depress Brake and Switch to Deactivate Caution
    - * Brake Hold Unavailable Driver Door Open Caution
    - * Brake Hold Unavailable Driver Seat Belt Unbuckled Caution
    - * Brake Hold Unavailable Hood or Trunk Open Caution
    - * Depress Brake to Maintain Brake Hold Caution
    - * Close Driver Door to Maintain Brake Hold Caution
    - * Fasten Driver Seat Belt to Maintain Brake Hold Caution
    - - Parking Brake Activated Release before Driving Caution
    Hybrid control system • ◦ AWD System Overheated 2WD Mode Engaged Caution
    • ◦ AWD System Overheated Switching to 2WD Mode Caution
    Drive start control system ◦ ◦ Drive-Start Control Malfunction Visit Your Dealer Caution
    Brake override system ◦ ◦ Brake Override Malfunction Visit Your Dealer Caution
    12 Smart access system with push-button start - * Key Battery Low Caution
    (Engine oil level sensor) - - Engine Oil Level Low Add or Replace Advisory
    Hybrid control system ◦ * Hybrid System Overheated Reduced Output Power Caution
    Automatic high beam system ◦ ◦ Headlight System Malfunction Visit Your Dealer Caution
    Automatic headlight beam level control system
    AFS (Adaptive front-lighting system)
    Lighting system
    Intelligent clearance sonar system ◦ ◦ ICS Malfunction Visit Your Dealer Caution
    Vehicle proximity notification system - - Proximity Notification System Malfunction Visit Your Dealer Caution
    Adaptive variable suspension system ◦ ◦ Active Suspension Malfunction Visit Your Dealer Caution
    Brake override system • - Accelerator and Brake Pedals Depressed Simultaneously Advisory
    Tire pressure warning system - - Tire pressure indicator (image display) Advisory
    13 Hybrid control system - - Aux Battery Low See Owner's Manual Advisory
    (Windshield washer fluid warning) - - Windshield Washer Fluid Low Advisory
    (Fuel level warning) - - Fuel Low Advisory
    (Ice warning) - ◦ Roads May Be Icy Drive with Care Advisory
    Electronically controlled brake system - - Traction Control Turned Off Caution
    (Oil maintenance) - - Oil Maintenance Required Soon Advisory
    (Scheduled maintenance) - - Maintenance Required Soon Advisory
    (Oil maintenance) - - Oil Maintenance Required Visit Your Dealer Advisory
    (Scheduled maintenance) - - Maintenance Required Visit Your Dealer Advisory
    Automatic high beam system - - To Activate Auto High Beam, Switch Headlights to High Beam Advisory
    Smart access system with push-button start - - A New Key has been Registered Contact Your Dealer for Details Caution
    - - Depress Brake and Power to Start Caution
    Pre-collision system - - VSC Turned Off Pre-Collision Brake System Unavailable Advisory
    - - Pre-Collision System Unavailable Advisory
    Intelligent clearance sonar system • - ICS Unavailable Advisory
    Air conditioning system • - High Power Consumption Partial Limit On AC/Heater Operation Advisory
    Pre-collision system - - Pre-Collision System Unavailable Advisory
    - - Pre-Collision System Unavailable Clean Sensor Advisory
    - - Pre-Collision System Off Advisory
    Hybrid control system - * EV Mode Unavailable Advisory
    - * EV Mode Unavailable System Warming Up Advisory
    - * EV Mode Unavailable Hybrid Battery Low Advisory
    - * EV Mode Unavailable Speed Range Exceeded Advisory
    - * EV Mode Unavailable Reduce Acceleration to Activate Advisory
    - * EV Mode Deactivated Advisory
    - * EV Mode Deactivated Hybrid Battery Low Advisory
    - * EV mode Deactivated Speed Range Exceeded Advisory
    - * EV Mode Deactivated Accelerator Depressed Too Far Advisory
    Electric parking brake system - ◦ Automatic Mode On Shift Operation Sets or Releases Parking Brake Advisory
    - ◦ Automatic Mode Off Advisory
    (Each door open (vehicle stopped, power switch off)) - - Each door open (vehicle stopped, power switch off) Caution
    • *: An exclusive buzzer sounds depending on condition
    • *1: Buzzers that are linked with the master warning light
scientia non olet · About LEMON Manuals
