Installation [12/2017 - ]: Procedure

  1. INSTALL COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR
    1. Connect the connector.

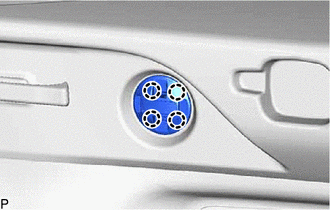

    2. Engage the 4 claws to install the cooler (No. 2 room temp. sensor) thermistor.
      GTY823519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
