Section 9 (Transfer Case - Service Information)
>>
Transfer Case Rear Oil Seal
>>
Components [09/2015 - ]
Components [09/2015 - ]
WARNING:
This page is about a different variant/trim than selected.

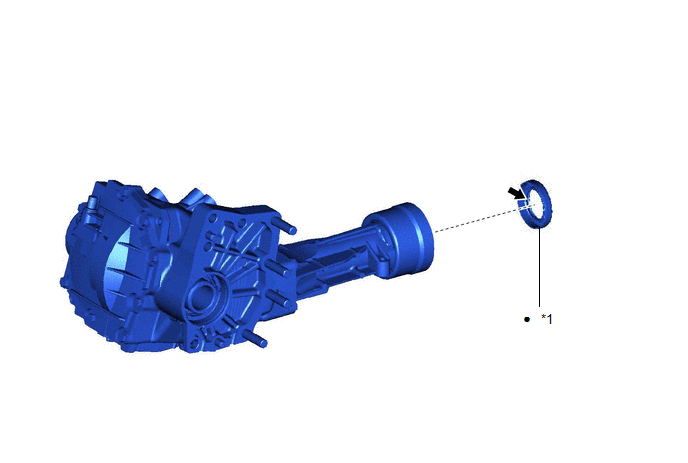

Fig 1: Transfer Case Rear Oil Seal Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
TRANSFER EXTENSION HOUSING TYPE T OIL SEAL
-
-
•
Non-reusable part
MP grease
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
