Replacement [09/2015 - 08/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 7 [12/2017 - 08/2019]

  2. REMOVE NO. 3 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 8 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 8 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 8 [12/2017 - 08/2019]

  3. REMOVE FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 13 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 13 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 13 [12/2017 - 08/2019]

  4. DRAIN AUTOMATIC TRANSAXLE FLUID

    Refer to PROCEDURE - Step 4

  5. DRAIN TRANSFER OIL

    See step  1

  6. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

    Refer to REMOVAL [09/2015 - 08/2019]

  7. REMOVE TRANSFER CASE OIL SEAL RH
    1. Using SST, remove the transfer case oil seal RH from the transfer case sub-assembly.
      GTY633457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Case Oil Seal RH
      • SST: 09308-00010
      NOTE:

      Do not damage the transfer case oil seal RH contact surface to the transfer case sub-assembly.

  8. INSTALL TRANSFER CASE OIL SEAL RH
    1. Using SST and a hammer, install a new transfer case oil seal RH to the transfer case sub-assembly as shown in the illustration.

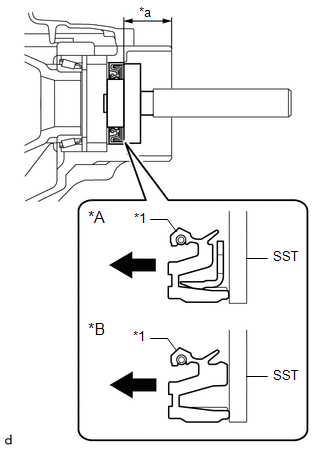

      GTY957537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A
      *B Type B
      *1 Transfer Case Oil Seal RH
      *a Depth
      Install in this Direction
      • SST: 09950-60010
        1. 09951-00350
        2. 09951-00580
        3. 09952-06010
      • SST: 09950-70010
        1. 09951-07150

      Standard Depth

      33.5 to 34.5 mm (1.32 to 1.36 in.)

      NOTE:
      • Be sure to install the transfer case oil seal RH in the correct orientation.
      • Tap in the transfer case oil seal RH uniformly so that the transfer case oil seal RH is straight.
      • Do not tap in the transfer case oil seal RH in too far.
    2. Apply a small amount of MP grease to the lip of the transfer case oil seal RH.
  9. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH

    Refer to INSTALLATION [09/2015 - ]

  10. ADD TRANSFER OIL

    See step  2

  11. ADD AUTOMATIC TRANSAXLE FLUID

    Refer to ADJUSTMENT [09/2015 - 08/2019]

  12. INSPECT FOR OIL LEAK
  13. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 64 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 64 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 64 [12/2017 - 08/2019]

  14. INSTALL NO. 3 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 69 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 69 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 69 [12/2017 - 08/2019]

  15. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 70 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 70 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 70 [12/2017 - 08/2019]
