Disassembly [09/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE DIFFERENTIAL CASE TAPERED ROLLER BEARING (FRONT SIDE)

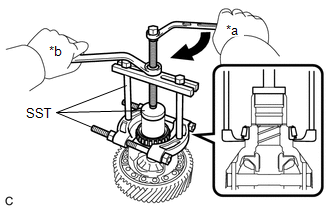

Using SST, remove the differential case tapered roller bearing (front side inner race) from the differential case assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Turn
*b	Hold

SST: 09950-00020
SST: 09950-00030
SST: 09950-60010
1. 09951-00480

Using SST, remove the differential case tapered roller bearing (front side outer race) from the transaxle housing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

REMOVE DIFFERENTIAL CASE TAPERED ROLLER BEARING (REAR SIDE)

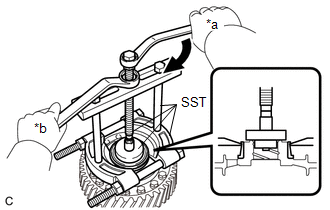

Using SST, remove the differential case tapered roller bearing (rear side inner race) from the differential case assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Turn
*b	Hold

SST: 09950-00020
SST: 09950-00030
SST: 09950-40011
1. 09957-04010
SST: 09950-60010
1. 09951-00350
2. 09951-00540
3. 09952-06010

NOTE:

The differential case tapered roller bearing (rear side inner race) cannot be removed as is. Break the bearing cage and remove the bearing cage and rollers first, and then remove the differential case tapered roller bearing (rear side inner race).

Using SST, remove the differential case tapered roller bearing (rear side outer race) and shim from the automatic transaxle case sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

REMOVE TRANSAXLE CASE OIL SEAL

Using SST and a hammer, remove the transaxle case oil seal from the transaxle housing.

SST: 09950-60010
1. 09951-00550
SST: 09950-70010
1. 09951-07200

REMOVE FRONT DRIVE SHAFT OIL SEAL RH

Using SST, remove the front drive shaft oil seal RH from the differential case assembly.

SST: 09308-00010

REMOVE FRONT DRIVE SHAFT OIL SEAL LH

Using SST and a hammer, remove the front drive shaft oil seal LH from the automatic transaxle case sub-assembly.

SST: 09950-60010
1. 09951-00650
SST: 09950-70010
1. 09951-07200
