Components [09/2015 - ]
WARNING: This page is about a different variant/trim than selected.

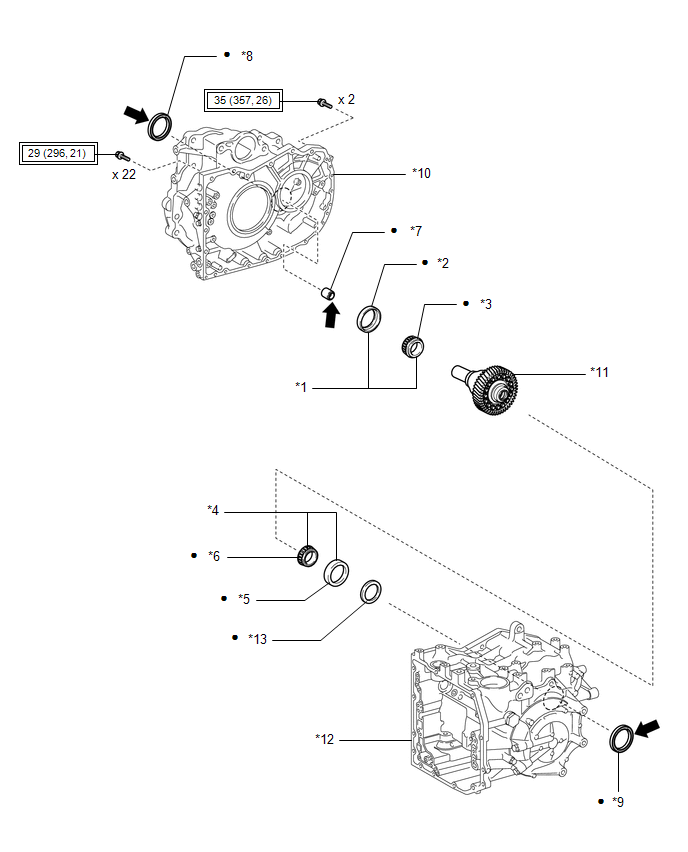

| Callout | Description | Callout | Description |
| *1 | DIFFERENTIAL CASE TAPERED ROLLER BEARING (FRONT SIDE) | *2 | DIFFERENTIAL CASE TAPERED ROLLER BEARING (FRONT SIDE OUTER RACE) |
| *3 | DIFFERENTIAL CASE TAPERED ROLLER BEARING (FRONT SIDE INNER RACE) | *4 | DIFFERENTIAL CASE TAPERED ROLLER BEARING (REAR SIDE) |
| *5 | DIFFERENTIAL CASE TAPERED ROLLER BEARING (REAR SIDE OUTER RACE) | *6 | DIFFERENTIAL CASE TAPERED ROLLER BEARING (REAR SIDE INNER RACE) |
| *7 | FRONT DRIVE SHAFT OIL SEAL RH | *8 | TRANSAXLE CASE OIL SEAL |
| *9 | FRONT DRIVE SHAFT OIL SEAL LH | *10 | TRANSAXLE HOUSING |
| *11 | DIFFERENTIAL CASE ASSEMBLY | *12 | AUTOMATIC TRANSAXLE CASE SUB-ASSEMBLY |
| *13 | SHIM | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| MP grease | - | - |
