Components [09/2015 - ]
WARNING: This page is about a different variant/trim than selected.

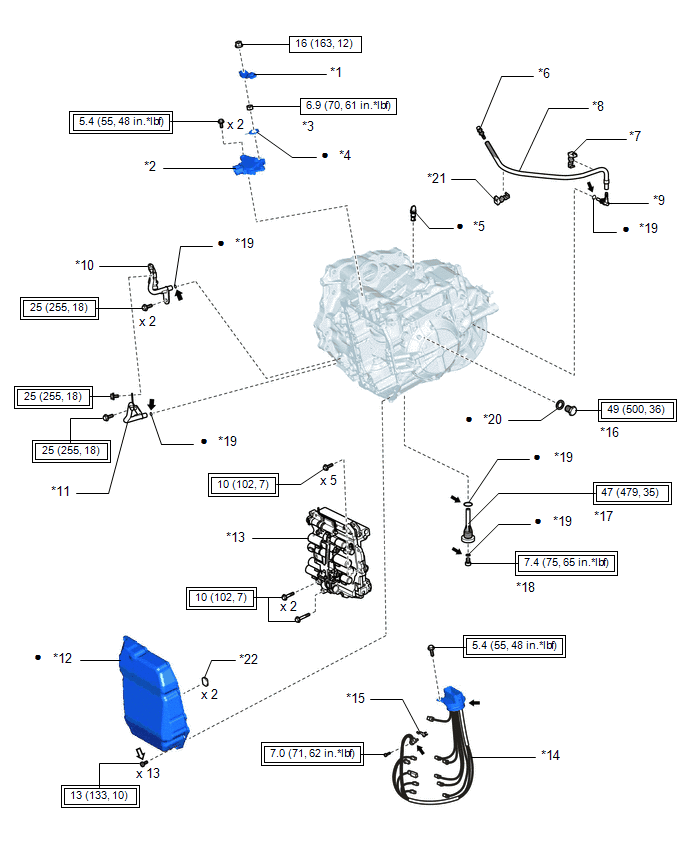

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
TRANSMISSION CONTROL SHAFT LEVER |
*2 |
PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *3 |
LOCK NUT |
*4 |
LOCK PLATE |
| *5 |
TRANSMISSION CASE PLUG ASSEMBLY |
*6 |
NO. 1 BREATHER PLUG (ATM) |
| *7 |
TRANSMISSION BREATHER CLAMP |
*8 |
BREATHER PLUG HOSE |
| *9 |
BREATHER PLUG |
*10 |
INLET NO. 1 OIL COOLER TUBE SUB-ASSEMBLY |
| *11 |
OUTLET NO. 1 OIL COOLER TUBE SUB-ASSEMBLY |
*12 |
TRANSAXLE SIDE COVER SUB-ASSEMBLY |
| *13 |
TRANSMISSION VALVE BODY ASSEMBLY |
*14 |
TRANSMISSION WIRE |
| *15 |
TEMPERATURE SENSOR CLAMP |
*16 |
REFILL PLUG |
| *17 |
OVERFLOW PLUG |
*18 |
DRAIN PLUG |
| *19 |
O-RING |
*20 |
GASKET |
| *21 |
BREATHER HOSE CLAMP |
*22 |
TRANSMISSION OIL CLEANER MAGNET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
|
ATF WS |
|
Adhesive 1344 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

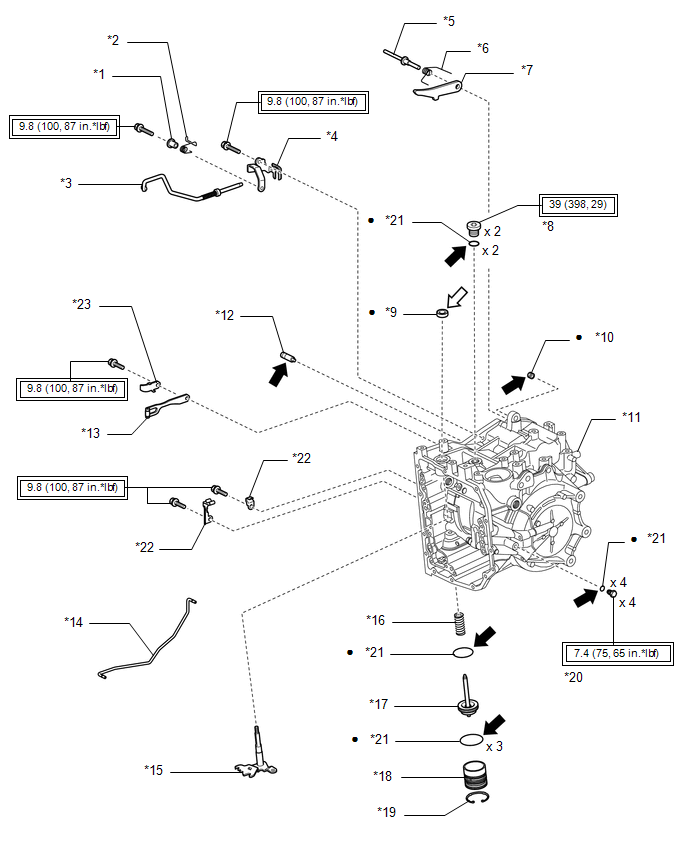

| Callout |
Description |
Callout |
Description |
| *1 |
SPRING GUIDE SLEEVE |
*2 |
TORSION SPRING |
| *3 |
PARKING LOCK ROD SUB-ASSEMBLY |
*4 |
PARKING LOCK PAWL BRACKET |
| *5 |
PARKING LOCK PAWL SHAFT |
*6 |
TORSION SPRING |
| *7 |
PARKING LOCK PAWL |
*8 |
NO. 2 TRANSAXLE CASE PLUG |
| *9 |
MANUAL VALVE LEVER SHAFT OIL SEAL |
*10 |
NO. 1 GOVERNOR APPLY GASKET |
| *11 |
AUTOMATIC TRANSAXLE CASE SUB-ASSEMBLY |
*12 |
PARKING LOCK PIN SUB-ASSEMBLY |
| *13 |
MANUAL DETENT SPRING SUB-ASSEMBLY |
*14 |
TRANSMISSION LUBE APPLY TUBE |
| *15 |
MANUAL VALVE LEVER SUB-ASSEMBLY |
*16 |
B-1 BRAKE PISTON COMPRESSION SPRING |
| *17 |
B-1 BRAKE PISTON |
*18 |
BRAKE PISTON COVER |
| *19 |
SNAP RING |
*20 |
NO. 1 TRANSAXLE CASE PLUG |
| *21 |
O-RING |
*22 |
CLAMP |
| *23 |
MANUAL DETENT SPRING COVER |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
• |
Non-reusable part |
|
ATF WS |
|
MP grease |

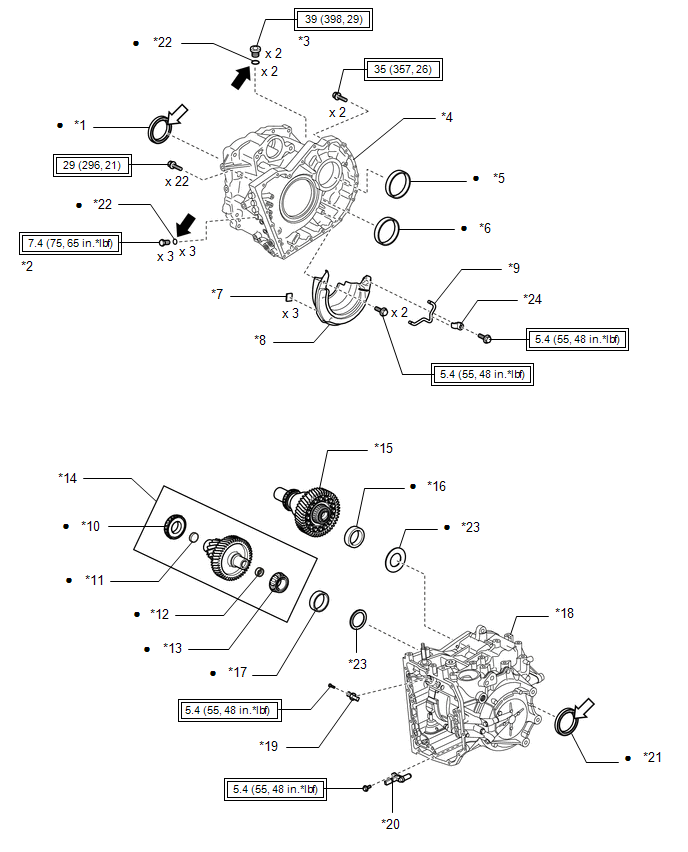

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
TRANSAXLE CASE OIL SEAL |
*2 |
NO. 1 TRANSAXLE CASE PLUG |
| *3 |
NO. 2 TRANSAXLE CASE PLUG |
*4 |
TRANSAXLE HOUSING |
| *5 |
COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (FRONT SIDE OUTER RACE) |
*6 |
DIFFERENTIAL CASE TAPERED ROLLER BEARING (FRONT SIDE OUTER RACE) |
| *7 |
TRANSMISSION OIL CLEANER MAGNET |
*8 |
TRANSAXLE HOUSING OIL SEPARATOR |
| *9 |
DIFFERENTIAL GEAR LUBE APPLY TUBE |
*10 |
COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (FRONT SIDE INNER RACE) |
| *11 |
TIGHT PLUG (DIFFERENTIAL DRIVE PINION SIDE) |
*12 |
TIGHT PLUG (COUNTER DRIVEN GEAR SIDE) |
| *13 |
COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (REAR SIDE INNER RACE) |
*14 |
PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY |
| *15 |
DIFFERENTIAL CASE ASSEMBLY |
*16 |
DIFFERENTIAL CASE TAPERED ROLLER BEARING (REAR SIDE OUTER RACE) |
| *17 |
COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (REAR SIDE OUTER RACE) |
*18 |
AUTOMATIC TRANSAXLE CASE SUB-ASSEMBLY |
| *19 |
TRANSMISSION REVOLUTION SENSOR (NC3) |
*20 |
TRANSMISSION REVOLUTION SENSOR (NT) |
| *21 |
FRONT DRIVE SHAFT OIL SEAL LH |
*22 |
O-RING |
| *23 |
SHIM |
*24 |
CLAMP |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
• |
Non-reusable part |
|
ATF WS |
|
MP grease |

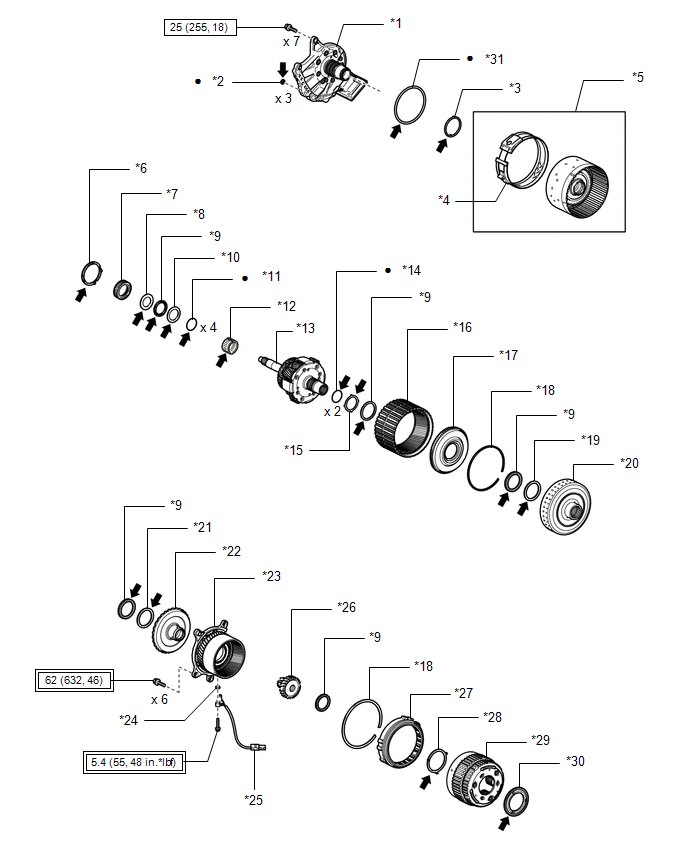

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT OIL PUMP ASSEMBLY |
*2 |
TRANSAXLE CASE GASKET |
| *3 |
PLANETARY CARRIER THRUST WASHER |
*4 |
B-1 BRAKE BAND ASSEMBLY |
| *5 |
C-3 AND C-4 CLUTCH ASSEMBLY |
*6 |
NO. 2 PLANETARY CARRIER THRUST WASHER |
| *7 |
PLANETARY SUN GEAR |
*8 |
NO. 9 THRUST BEARING RACE |
| *9 |
THRUST NEEDLE ROLLER BEARING |
*10 |
NO. 8 THRUST BEARING RACE |
| *11 |
INPUT SHAFT OIL SEAL RING |
*12 |
NEEDLE ROLLER BEARING |
| *13 |
FRONT PLANETARY GEAR ASSEMBLY |
*14 |
REAR INPUT SHAFT OIL SEAL RING |
| *15 |
NO. 7 THRUST BEARING RACE |
*16 |
FRONT PLANETARY RING GEAR |
| *17 |
FRONT PLANETARY RING GEAR FLANGE |
*18 |
SNAP RING |
| *19 |
NO. 6 THRUST BEARING RACE |
*20 |
C-1 CLUTCH ASSEMBLY |
| *21 |
NO. 5 THRUST BEARING RACE |
*22 |
INPUT SUN GEAR DRUM |
| *23 |
FRONT PLANETARY GEAR SUB-ASSEMBLY |
*24 |
SPACER |
| *25 |
TRANSMISSION REVOLUTION SENSOR (NC) |
*26 |
PLANETARY SUN GEAR SUB-ASSEMBLY |
| *27 |
ONE-WAY CLUTCH ASSEMBLY |
*28 |
NO. 3 PLANETARY CARRIER THRUST WASHER |
| *29 |
REAR PLANETARY GEAR ASSEMBLY |
*30 |
NO. 4 PLANETARY CARRIER THRUST WASHER |
| *31 |
FRONT OIL PUMP BODY O-RING |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
|
ATF WS |

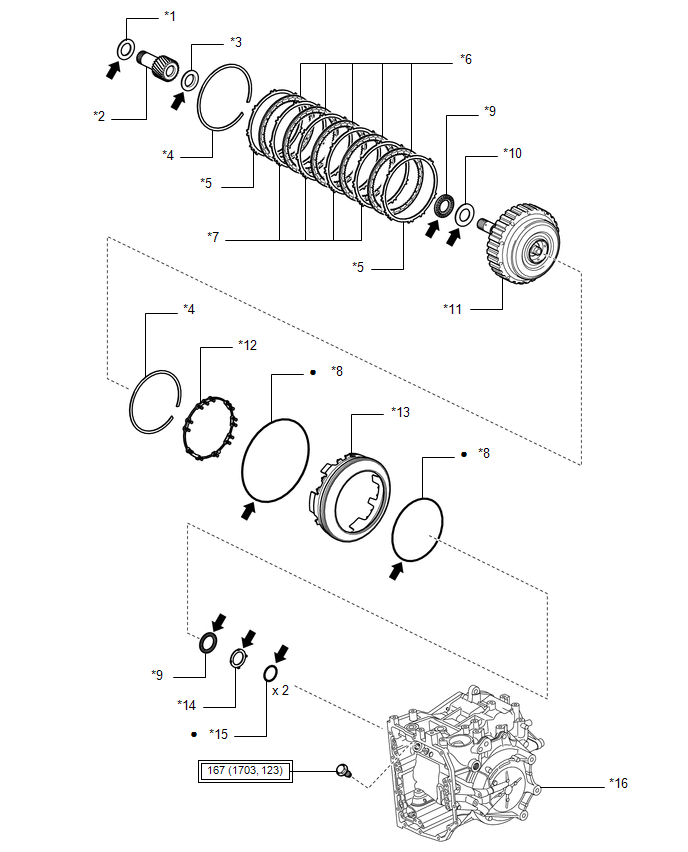

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 4 THRUST BEARING RACE |
*2 |
REAR PLANETARY SUN GEAR SUB-ASSEMBLY |
| *3 |
NO. 3 THRUST BEARING RACE |
*4 |
SNAP RING |
| *5 |
1ST AND REVERSE BRAKE FLANGE |
*6 |
1ST AND REVERSE BRAKE CLUTCH DISC |
| *7 |
1ST AND REVERSE BRAKE CLUTCH PLATE |
*8 |
O-RING |
| *9 |
THRUST NEEDLE ROLLER BEARING |
*10 |
NO. 2 THRUST BEARING RACE |
| *11 |
C-2 CLUTCH ASSEMBLY |
*12 |
1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY |
| *13 |
1ST AND REVERSE BRAKE PISTON |
*14 |
NO. 1 THRUST BEARING RACE |
| *15 |
DIRECT CLUTCH DRUM OIL SEAL RING |
*16 |
AUTOMATIC TRANSAXLE CASE SUB-ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
• |
Non-reusable part |
|
ATF WS |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

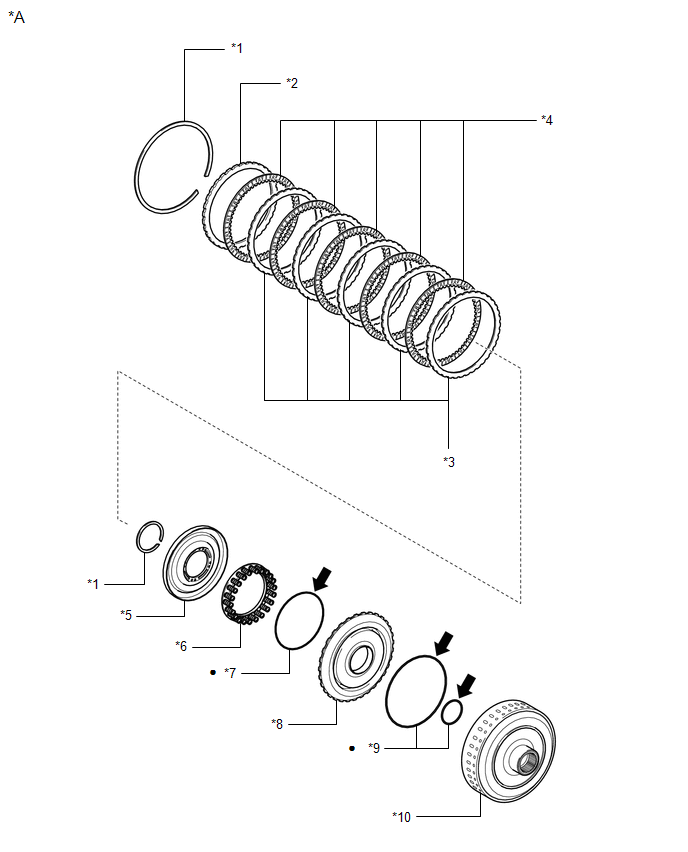

| *A |
C-1 CLUTCH ASSEMBLY |
- |
- |
| *1 |
SNAP RING |
*2 |
FORWARD CLUTCH FLANGE |
| *3 |
FORWARD MULTIPLE DISC CLUTCH PLATE |
*4 |
FORWARD MULTIPLE DISC CLUTCH DISC |
| *5 |
NO. 1 CLUTCH BALANCER |
*6 |
FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY |
| *7 |
O-RING |
*8 |
FORWARD CLUTCH PISTON |
| *9 |
C-1 DRUM O-RING |
*10 |
CLUTCH DRUM SUB-ASSEMBLY |
| • |
Non-reusable part |
|
ATF WS |

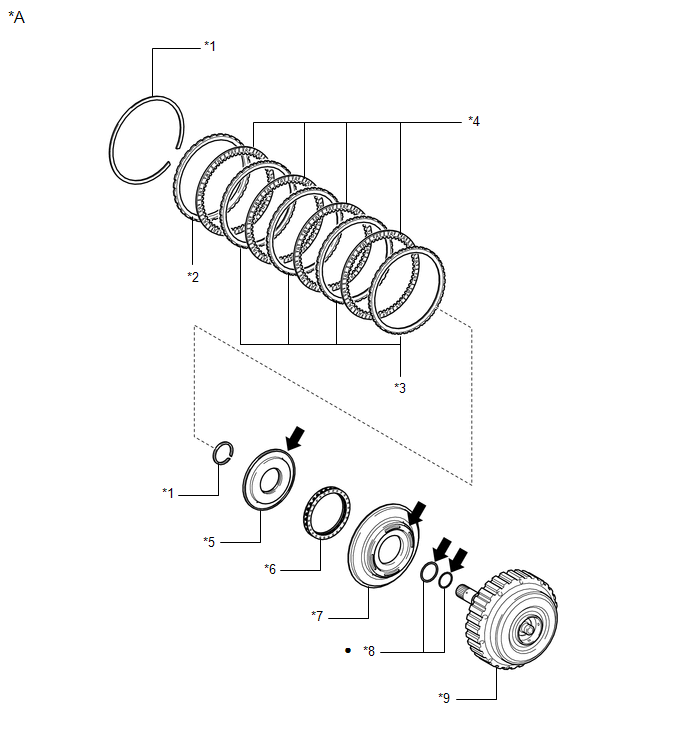

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
C-2 CLUTCH ASSEMBLY |
- |
- |
| *1 |
SNAP RING |
*2 |
DIRECT CLUTCH FLANGE |
| *3 |
NO. 2 CLUTCH PLATE |
*4 |
NO. 2 CLUTCH DISC |
| *5 |
C-2 CLUTCH BALANCER |
*6 |
CLUTCH RETURN WITH RETAINER SPRING SUB-ASSEMBLY |
| *7 |
C-2 CLUTCH PISTON |
*8 |
INTERMEDIATE SHAFT O-RING |
| *9 |
INTERMEDIATE SHAFT SUB-ASSEMBLY |
- |
- |
| • |
Non-reusable part |
|
ATF WS |
