Disassembly [09/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE MANUAL VALVE

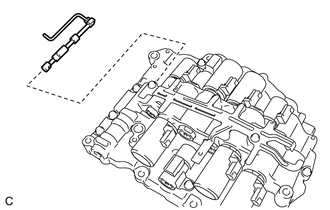

    1. Remove the manual valve from the transmission valve body assembly.
      GTY653274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the E-ring and separate the manual valve connecting rod from the manual valve.
      GTY624106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Manual Valve Connecting Rod
      *2 Manual Valve
      *3 E-ring
  2. REMOVE SOLENOID LOCK PLATE
    1. Remove the 2 bolts and solenoid lock plate from the transmission valve body assembly.
      GTY681485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SHIFT SOLENOID VALVE S1
    1. Remove the bolt and shift solenoid valve S1.
      GTY653293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT SOLENOID VALVE S2
    1. Remove the bolt and shift solenoid valve S2.
      GTY653294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SHIFT SOLENOID VALVE SLU
    1. Using a Magnet Hand, remove the straight pin from the transmission valve body assembly.
      GTY653288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift solenoid valve SLU from the transmission valve body assembly.
  6. REMOVE SHIFT SOLENOID VALVE SL1
    1. Using a Magnet Hand, remove the straight pin from the transmission valve body assembly.
      GTY653290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift solenoid valve SL1 from the transmission valve body assembly.
  7. REMOVE SHIFT SOLENOID VALVE SL2
    1. Using a Magnet Hand, remove the straight pin from the transmission valve body assembly.
      GTY653284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift solenoid valve SL2 from the transmission valve body assembly.
  8. REMOVE SHIFT SOLENOID VALVE SL3
    1. Using a Magnet Hand, remove the straight pin from the transmission valve body assembly.
      GTY653286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift solenoid valve SL3 from the transmission valve body assembly.
  9. REMOVE SHIFT SOLENOID VALVE SL4
    1. Using a Magnet Hand, remove the straight pin from the transmission valve body assembly.
      GTY653270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift solenoid valve SL4 from the transmission valve body assembly.
  10. REMOVE SHIFT SOLENOID VALVE SL5
    1. Using a Magnet Hand, remove the straight pin from the transmission valve body assembly.
      GTY653271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift solenoid valve SL5 from the transmission valve body assembly.
  11. REMOVE SHIFT SOLENOID VALVE SLT
    1. Using a Magnet Hand, remove the straight pin from the transmission valve body assembly.
      GTY653269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift solenoid valve SLT from the transmission valve body assembly.
