Components [08/2019 - ]
WARNING: This page is about a different variant/trim than selected.
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | NO. 3 ENGINE UNDER COVER |
| *3 | FRONT FENDER APRON SEAL LH | - | - |

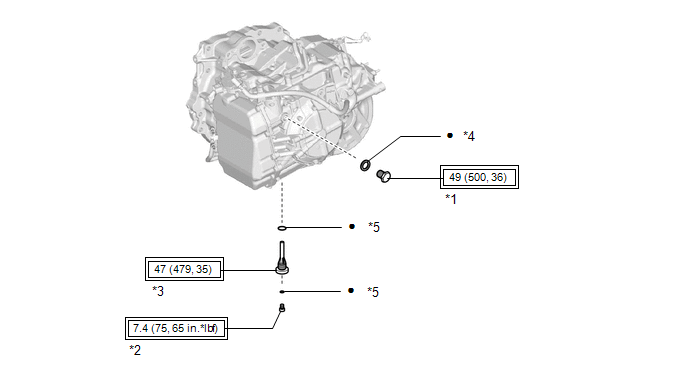

| Callout | Description | Callout | Description |
| *1 | REFILL PLUG | *2 | DRAIN PLUG |
| *3 | OVERFLOW PLUG | *4 | GASKET |
| *5 | O-RING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

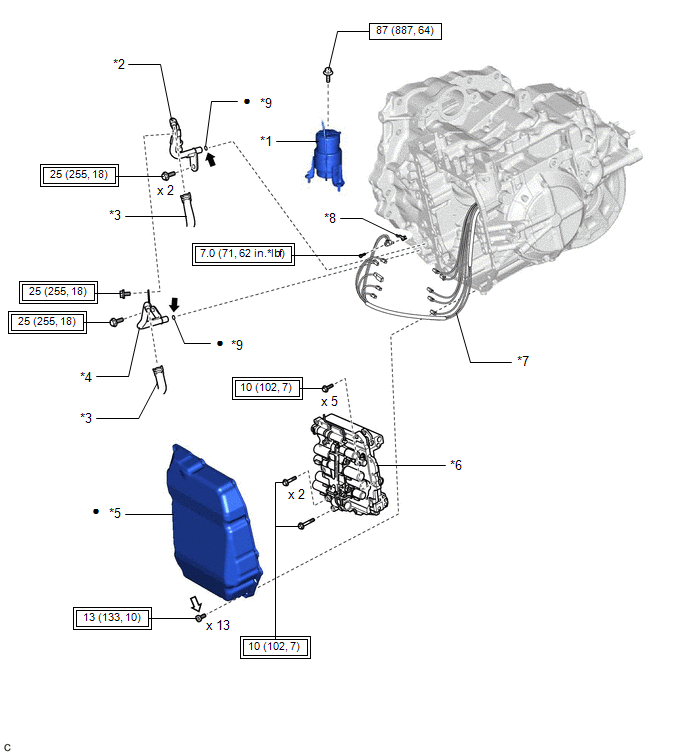

| Callout | Description | Callout | Description |
| *1 | FRONT ENGINE MOUNTING INSULATOR | *2 | INLET NO. 1 OIL COOLER TUBE SUB-ASSEMBLY |
| *3 | NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY | *4 | OUTLET NO. 1 OIL COOLER TUBE SUB-ASSEMBLY |
| *5 | TRANSAXLE SIDE COVER SUB-ASSEMBLY | *6 | TRANSMISSION VALVE BODY ASSEMBLY |
| *7 | TRANSMISSION WIRE | *8 | TEMPERATURE SENSOR CLAMP |
| *9 | O-RING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | ATF WS | |
| Adhesive 1344 | * | Precoated part |

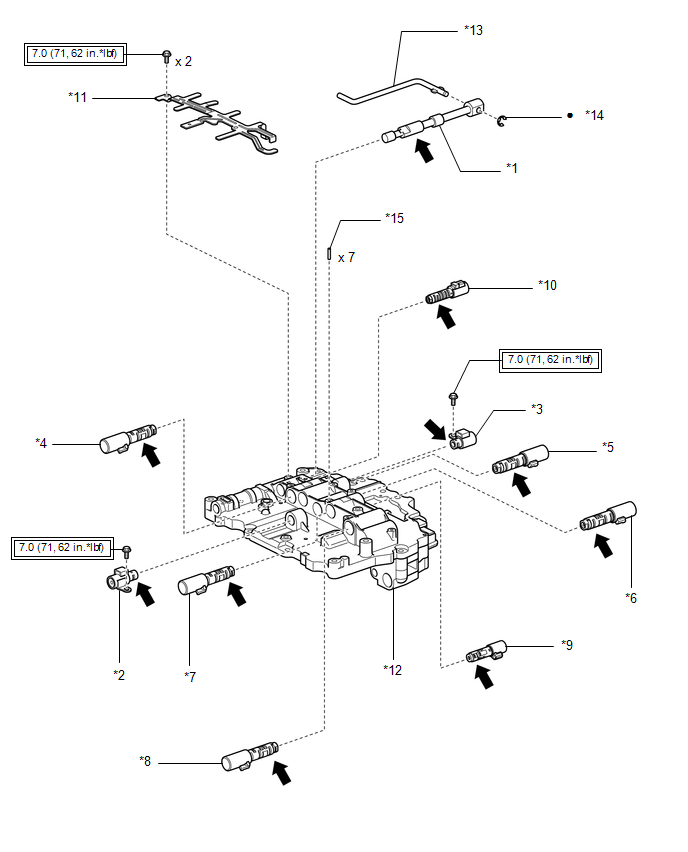

| Callout | Description | Callout | Description |
| *1 | MANUAL VALVE | *2 | SHIFT SOLENOID VALVE S1 |
| *3 | SHIFT SOLENOID VALVE S2 | *4 | SHIFT SOLENOID VALVE SL1 |
| *5 | SHIFT SOLENOID VALVE SL2 | *6 | SHIFT SOLENOID VALVE SL3 |
| *7 | SHIFT SOLENOID VALVE SL4 | *8 | SHIFT SOLENOID VALVE SL5 |
| *9 | SHIFT SOLENOID VALVE SLT | *10 | SHIFT SOLENOID VALVE SLU |
| *11 | SOLENOID LOCK PLATE | *12 | TRANSMISSION VALVE BODY ASSEMBLY |
| *13 | MANUAL VALVE CONNECTING ROD | *14 | E-RING |
| *15 | STRAIGHT PIN | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| ATF WS | - | - |
